Chassis Frame Assembly (90" Wheelbase) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Chassis Frame Assembly (90" Wheelbase) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR010507 CROSSMEMBER - ENGINE MOUNTING FRONT Enquire To Order
LR015410 CHASSIS FRAME Enquire To Order
LR027549 CHASSIS FRAME Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
KVB000290 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
ANR4546 BRACKET Enquire To Order
ANR4547 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
KVV100000 PLUG Enquire To Order
Photo Part No Description Price (each) Stock
KVB500060 CROSSMEMBER Enquire To Order
Photo Part No Description Price (each) Stock
NTC7667 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
AHR710370 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
NRC9749 MOUNTING Enquire To Order
LR016704 MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
FS108207L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WC108051L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
AQU710040 BRACKET - SUPPORT Enquire To Order
AQU710050 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
FS110256 BOLT - FLANGED HEX. Enquire To Order
RYG500230 BOLT - HEX.HEAD Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
SRU500220 PLATE Enquire To Order
SRU500230 PLATE Enquire To Order
LR033004 SUPPORT - FRAME Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FB108166 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
WC108051L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WP185L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYP501140 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
NRC5485 WASHER - NYLON Enquire To Order
Photo Part No Description Price (each) Stock
WC110066 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
KYF500070 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FN110046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
RYG101360 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
WD110061L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FN110046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
NRC9695 BRACKET - SUPPORT Enquire To Order
NRC9696 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
FS108207L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
AFP710440 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FS108207L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
KVU000060 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
KYP500350 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
KVW100590 REINFORCEMENT - MEMBER Enquire To Order
KVW100580 REINFORCEMENT - MEMBER Enquire To Order
Photo Part No Description Price (each) Stock
ANR6563 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
BTR8040L NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
AHR780110 PLATE AND WELDNUT Enquire To Order
Photo Part No Description Price (each) Stock
FA106106 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RTC3354 CROSSMEMBER Enquire To Order
View All

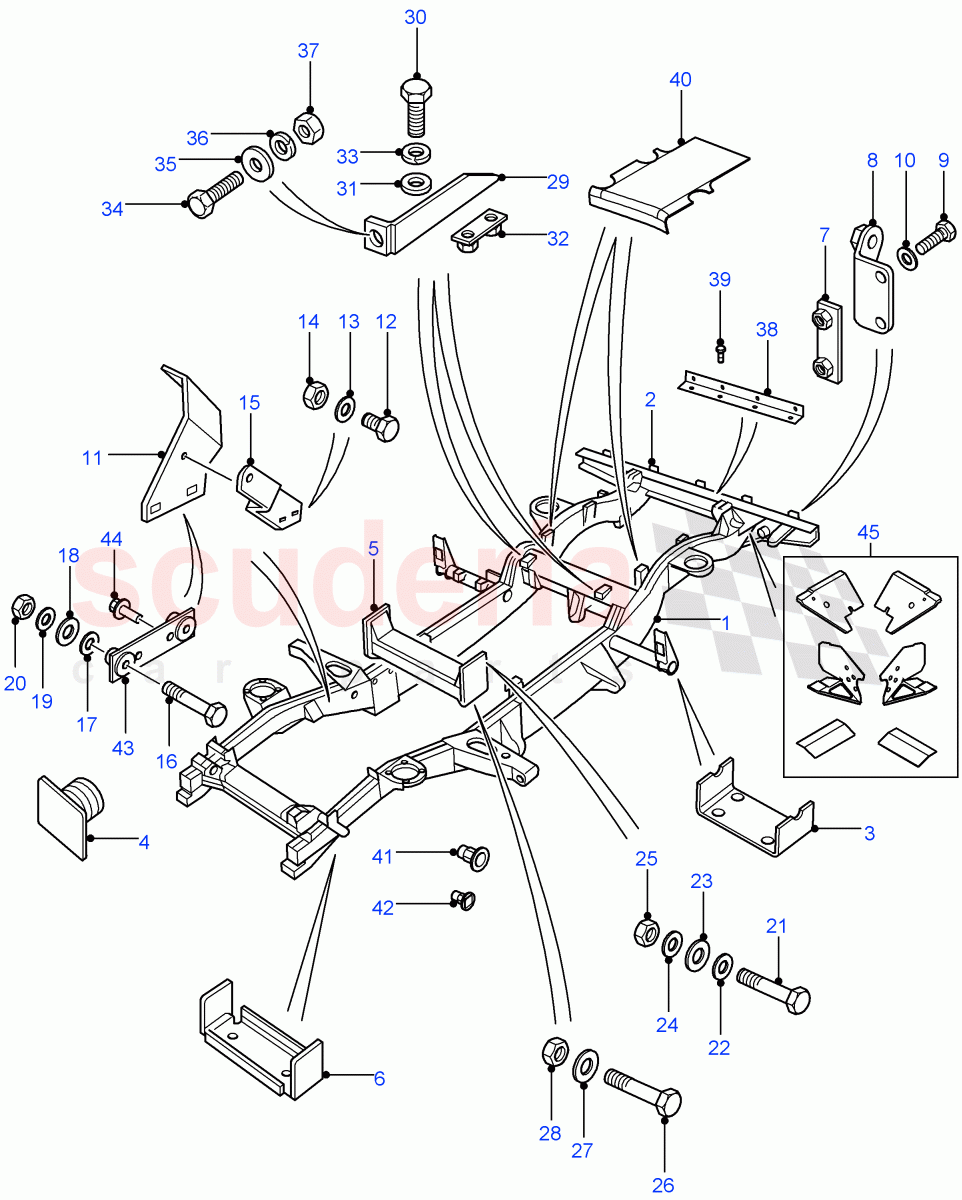

Chassis Frame Assembly (90" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR010507
CROSSMEMBER - ENGINE MOUNTING FRONT
'A' Frame Mounting Bracket Needs To Be Discarded / To: 9A775240 		- 1 Enquire
1 LR015410
CHASSIS FRAME
'A' Frame Mounting Bracket Needs To Be Discarded / From: 9A775241 / To: AA999999 		- 1 Enquire
1 LR027549
CHASSIS FRAME
'A' Frame Mounting Bracket Needs To Be Discarded / From: BA000001 / To: BA403719 		- 1 Enquire
1 LR029633
CHASSIS FRAME
'A' Frame Mounting Bracket Needs To Be Discarded / From: BA403720 / To: BA999999 		- 1 Enquire
1 LR032841
CHASSIS FRAME
'A' Frame Mounting Bracket Needs To Be Discarded / From: CA000001 / To: CA555554 		- 1 Enquire
1 LR038626
CHASSIS FRAME
'A' Frame Mounting Bracket Needs To Be Discarded / From: CA555555 		- 1 Enquire
2 KVB000290
BRACKET 		- 1 Enquire
3 ANR4546
BRACKET
RH, Rear 		- 1 Enquire
3 ANR4547
BRACKET
LH, Rear 		- 1 Enquire
4 KVV100000
PLUG 		- 2 Enquire
5 KVB500060
CROSSMEMBER 		- 1 Enquire
6 NTC7667
BRACKET
Front 		- 2 Enquire
7 AHR710370
PLATE
to support bracket tailboard 		- 2 Enquire
8 NRC9749
MOUNTING
To: 9A888887 		- 2 Enquire
8 LR016704
MOUNTING
From: 9A888888 		- 2 Enquire
9 FS108207L
SCREW
Flanged Head, M8 X 20MM 		- 4 Enquire
10 WC108051L
WASHER
M8 		- 4 Enquire
11 AQU710040
BRACKET - SUPPORT
RH 		- 1 Enquire
11 AQU710050
BRACKET - SUPPORT
LH 		- 1 Enquire
12 FS108256
BOLT
Flanged Head, M8 x 25 		- 4 Enquire
12 FS110256
BOLT - FLANGED HEX.
Hexagonal Head, M10 x 25, to crossmember 		- 4 Enquire
12 RYG500230
BOLT - HEX.HEAD
Hexagonal Head, M8 X 20MM / From: 8A757786 / To: EA455709 		- 4 Enquire
12 LR014326
SCREW
Hexagonal Head, M8 X 16MM / From: EA455710 		- 4 Enquire
13 WA108056
WASHER
8MM 		- 16 Enquire
14 FN108046
NUT - HEX.
Flanged Head, M8 		- 1 Enquire
15 SRU500220
PLATE
RH / To: BA410473 		- 1 Enquire
15 SRU500230
PLATE
LH / To: BA410473 		- 1 Enquire
15 LR033004
SUPPORT - FRAME
RH / From: BA410474 		- 1 Enquire
15 LR033005
SUPPORT - FRAME
LH / From: BA410474 		- 1 Enquire
16 FB108166
BOLT - HEX.HEAD
Hexagonal Head, M8 x 100 		- 4 Enquire
17 WC108051L
WASHER
M8 		- 4 Enquire
18 WP185L
WASHER
Plain, Standard 		- 4 Enquire
19 WA108056
WASHER
M8, sprung 		- 4 Enquire
20 FN108046
NUT - HEX.
Flanged Head, M8 		- 1 Enquire
21 RYP501140
BOLT - HEX.HEAD
Hexagonal Head, M10, to crossmember 		- 4 Enquire
22 NRC5485
WASHER - NYLON 		- 4 Enquire
23 WC110066
WASHER
M10, oversize, Plain 		- 4 Enquire
24 KYF500070
WASHER
No 10, Plain 		- 4 Enquire
25 FN110046
NUT - HEX.
M10 		- 4 Enquire
26 RYG101360
BOLT
duo taptite, M10 x 25 		- 4 Enquire
27 WD110061L
WASHER 		- 12 Enquire
28 FN110046
NUT - HEX.
M10 		- 4 Enquire
29 NRC9695
BRACKET - SUPPORT
RH 		- 1 Enquire
29 NRC9696
BRACKET - SUPPORT
LH 		- 1 Enquire
30 FS108207L
SCREW
bracket support to chassis frame, Flanged Head, M8 X 20MM 		- 4 Enquire
31 WA108056
WASHER
8MM 		- 4 Enquire
32 AFP710440
PLATE 		- 2 Enquire
33 WA108056
WASHER
M8, sprung 		- 1 Enquire
34 FS108207L
SCREW
Flanged Head, M8 X 20MM 		- 2 Enquire
35 WA108056
WASHER
M8, sprung 		- 1 Enquire
36 WA108056
WASHER
8MM 		- 1 Enquire
37 FN108046
NUT - HEX.
Flanged Head, M8 		- 1 Enquire
38 KVU000060
BRACKET 		- 1 Enquire
39 KYP500350
SCREW AND WASHER 		- 4 Enquire
40 KVW100590
REINFORCEMENT - MEMBER
With Heavy Duty Rear Springs / RH 		- 1 Enquire
40 KVW100580
REINFORCEMENT - MEMBER
With Heavy Duty Rear Springs / LH 		- 1 Enquire
41 ANR6563
NUT - SPECIAL
Hexagonal, M8 		- - Enquire
42 BTR8040L
NUT - SPECIAL
M6, Square 		- - Enquire
43 AHR780110
PLATE AND WELDNUT 		- 2 Enquire
44 FA106106
SCREW 		- 4 Enquire
45 RTC3354
CROSSMEMBER 		- 1 Enquire
