Land Rover Defender (2007-2016) - Rear Body Upper Fixings (Hard Top, 110" Wheelbase, 90" Wheelbase, Station Wagon - 5 Door, Station...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
338554 MOUNTING Enquire To Order
KTK500010 MOUNTING Enquire To Order
LR031922 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
FS108161L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WC108051L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
AHR710300 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
ALU710100 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
MRC5527 WASHER Enquire To Order
AFU1080 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
338550 BUMP STOP Enquire To Order
Photo Part No Description Price (each) Stock
338552 BRACKET - SUPPORT Enquire To Order
ABU710270 Bracket Support Enquire To Order
LR010907 BRACKET - SUPPORT Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FS106167L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
MRC5525 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
RYH500310 NUT AND WASHER - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FS108307L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WC108051L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
AYR500110 STUD Enquire To Order
AYR500120 STUD Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
AYF500070 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WC108051L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
AZT500020 BUSHING Enquire To Order
View All

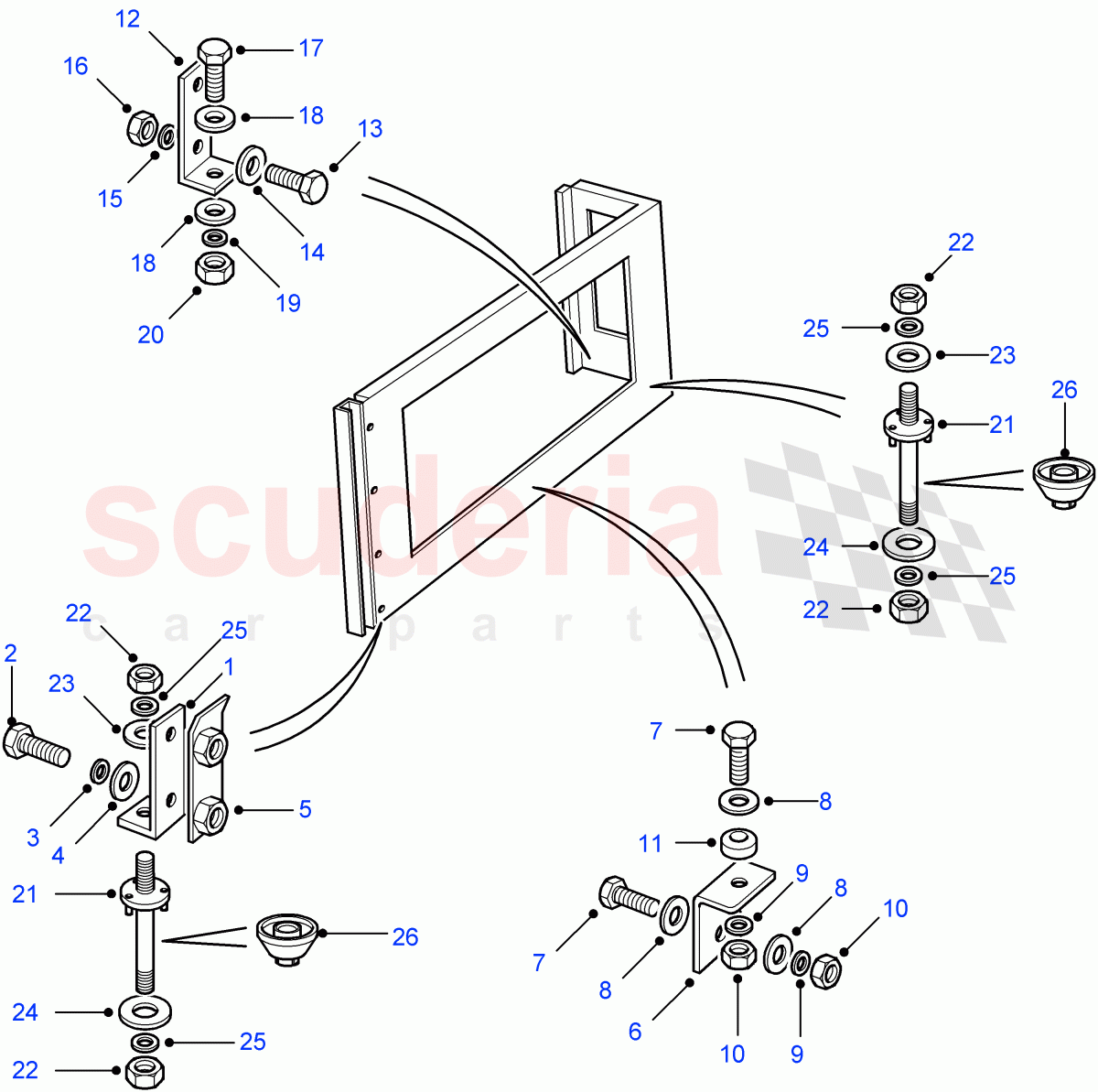

Rear Body Upper Fixings (Hard Top, 110" Wheelbase, 90" Wheelbase, Station Wagon - 5 Door, Station Wagon - 3 Door) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 338554
MOUNTING
To: 7A752069 		- 2 Enquire
1 KTK500010
MOUNTING
From: 7A752070 / To: BA407819 		- 2 Enquire
1 LR031922
BRACKET - SUPPORT
From: BA407820 		- 2 Enquire
2 FS108161L
SCREW
Flanged Head, M8 X 16 		- 4 Enquire
3 WA108056
WASHER
M8, sprung 		- 2 Enquire
4 WC108051L
WASHER
M8 		- 4 Enquire
5 AHR710300
PLATE 		- 2 Enquire
6 ALU710100
BRACKET - SUPPORT 		- 2 Enquire
7 FS106206
SCREW
Flanged Head, M6 X 20MM 		- 4 Enquire
8 MRC5527
WASHER
90" Wheelbase, Hard Top / M6, Plain 		- 8 Enquire
8 AFU1080
WASHER
110" Wheelbase, Station Wagon - 5 Door / Plain 		- 12 Enquire
9 WL106002
RESTRICTOR
90" Wheelbase, Hard Top / M6, sprung 		- 4 Enquire
9 WL106002
RESTRICTOR
110" Wheelbase, Station Wagon - 5 Door / M6, sprung 		- 8 Enquire
10 FY106046
NUT - HEX.
90" Wheelbase, Hard Top / Hexagonal Head, M6, nyloc 		- 4 Enquire
10 FY106046
NUT - HEX.
110" Wheelbase, Station Wagon - 5 Door / Hexagonal Head, M6, nyloc 		- 8 Enquire
11 338550
BUMP STOP 		- 4 Enquire
12 338552
BRACKET - SUPPORT
To: 8A767058 		- 2 Enquire
12 ABU710270
Bracket Support
From: 8A767059 / To: 9A768000 		- 2 Enquire
12 LR010907
BRACKET - SUPPORT
From: 9A768001 / To: BA407819 		- 2 Enquire
12 LR031920
BRACKET - SUPPORT
From: BA407820 / To: DA431822 		- 2 Enquire
12 LR048390
BRACKET - SUPPORT
From: DA431823 		- 2 Enquire
13 FS106167L
SCREW
Flanged Head, M6 X 16MM 		- 4 Enquire
14 MRC5525
WASHER
Standard 		- 4 Enquire
15 WL106002
RESTRICTOR
M6, sprung 		- 4 Enquire
16 RYH500310
NUT AND WASHER - HEX.
M6 		- 4 Enquire
17 FS108307L
SCREW
Flanged Head, M8 X 30MM 		- 2 Enquire
18 WC108051L
WASHER
M8 		- 4 Enquire
19 WA108056
WASHER
M8, sprung 		- 8 Enquire
20 FN108046
NUT - HEX.
Flanged Head, M8 		- 2 Enquire
21 AYR500110
STUD
M8 X 67MM 		- 4 Enquire
21 AYR500120
STUD
M8 X 76 		- 4 Enquire
22 FN108046
NUT - HEX.
Flanged Head, M8 		- 8 Enquire
23 AYF500070
WASHER 		- 4 Enquire
24 WC108051L
WASHER 		- 8 Enquire
25 WA108056
WASHER
M8, sprung 		- 8 Enquire
26 AZT500020
BUSHING
From: 9A769592 		- 4 Enquire
