Drain Channels-Soft Top (Soft Top) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Drain Channels-Soft Top (Soft Top) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

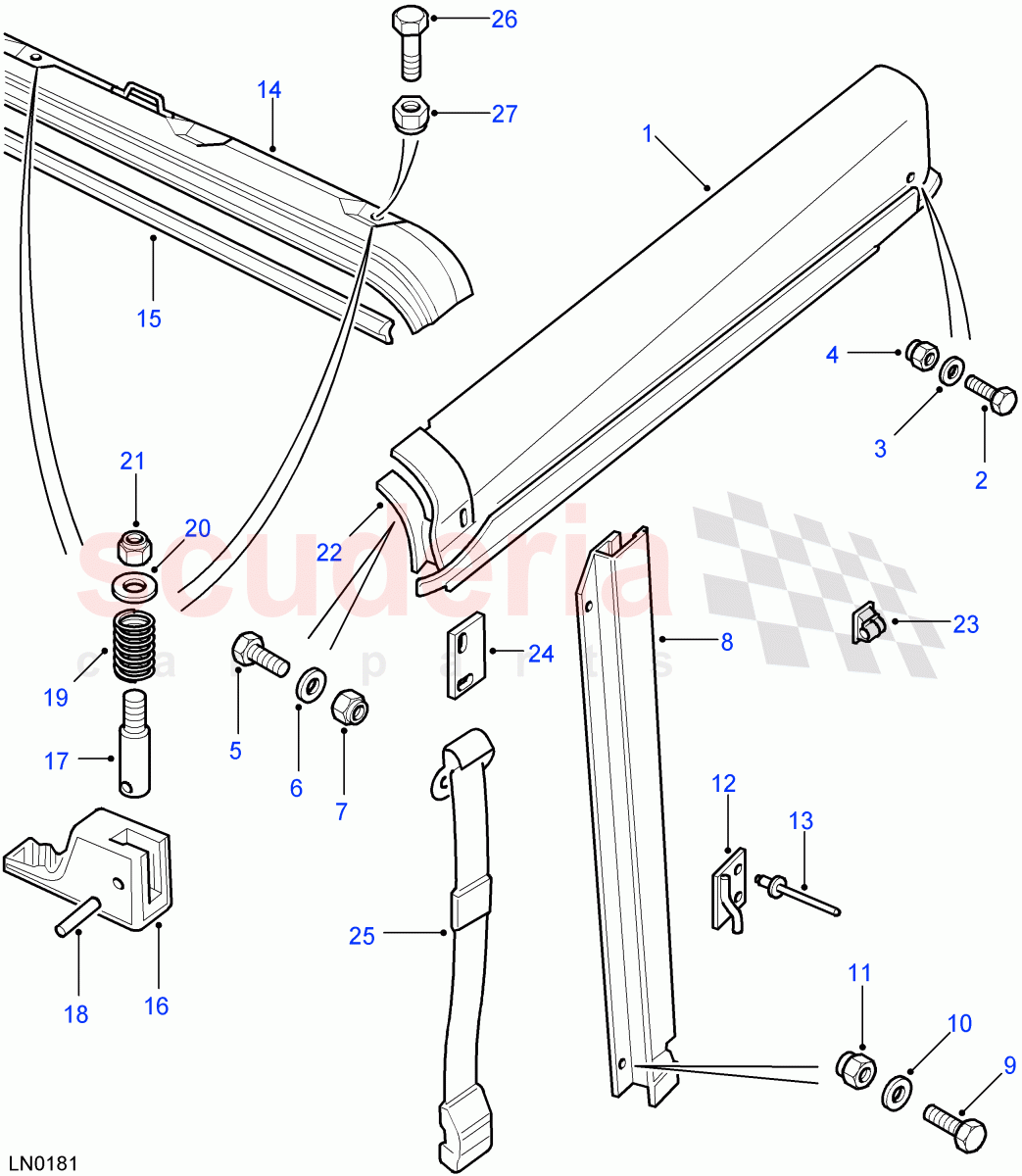

Drain Channels-Soft Top (Soft Top) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 RRC3972
DRAIN
RH, top 		- 1 Enquire
1 RRC3973
DRAIN
LH, top 		- 1 Enquire
2 FS106206
SCREW
fixing channel, Flanged Head, M6 X 20MM 		- 2 Enquire
3 AFU1080
WASHER
Plain 		- 2 Enquire
4 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc 		- 2 Enquire
5 FS106167L
SCREW
fixing channel, Flanged Head, M6 X 16MM 		- 2 Enquire
6 AFU1080
WASHER
Plain 		- 2 Enquire
7 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc 		- 2 Enquire
8 MTC5428
DRAIN
RH, Side 		- 1 Enquire
8 MTC5429
DRAIN
LH, Side 		- 1 Enquire
9 FS106167L
SCREW
fixing channel, Flanged Head, M6 X 16MM 		- 4 Enquire
10 AFU1080
WASHER
Plain 		- 8 Enquire
11 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc 		- 4 Enquire
12 330578
HOOK
RH, Front 		- 1 Enquire
12 330579
HOOK
LH, Front 		- 1 Enquire
13 RU612253
Rivet
3/16" x 0.45"lng, pop 		- 4 Enquire
14 RRC8597
HEADERBOARD
vinyl. 		- 1 Enquire
15 MTC7252
SEAL 		- 1 Enquire
16 MTC4581
HANDLE - GRAB 		- 4 Enquire
17 MTC4583
SPINDLE 		- 4 Enquire
18 PA106201
PIN - SPRING 		- 4 Enquire
19 MTC4584
SPRING 		- 4 Enquire
20 WC106041L
WASHER
M6, oversize 		- 4 Enquire
21 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc 		- 4 Enquire
22 MTC7431
SEAL 		- 2 Enquire
23 AFU4162
HOOK 		- 6 Enquire
24 MUC4538
SEAL
top drain channel to hoodstick 		- 2 Enquire
25 MUC4061ACG
STRAP - SOFT TOP
Khaki Green 		- 2 Enquire
25 MUC4061ABE
STRAP - SOFT TOP
Matt Sand 		- 2 Enquire
26 SE106256
SCREW
M6 X 25MM 		- 6 Enquire
27 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc 		- 6 Enquire
