Rear Body Lower - Side Assembly (High Capacity Pick Up, 110" Wheelbase, Crew Cab HCPU, 130"...

Find Your Part

Land Rover Defender (2007-2016) - Rear Body Lower - Side Assembly (High Capacity Pick Up, 110" Wheelbase, Crew Cab HCPU, 130"...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

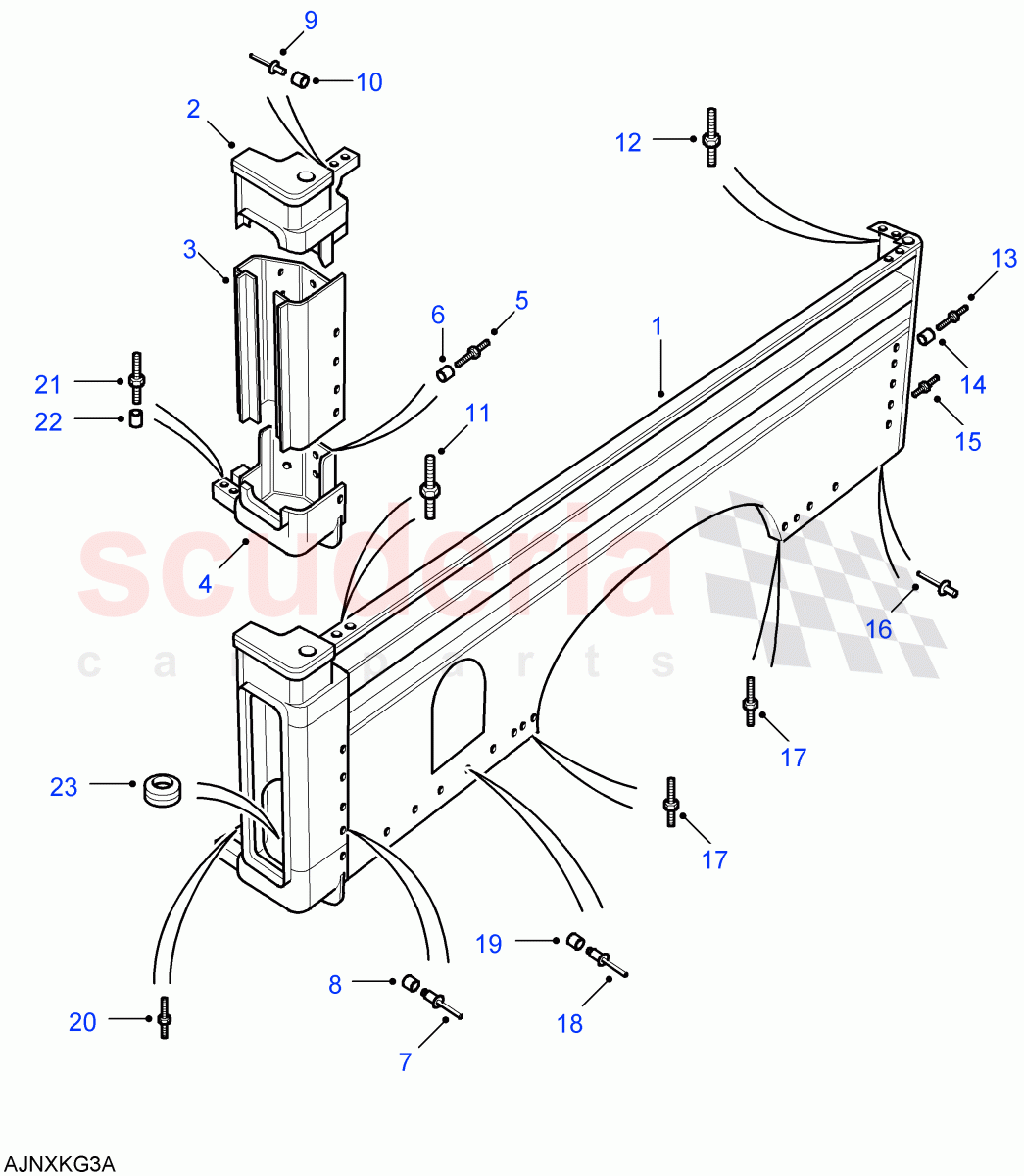

Rear Body Lower - Side Assembly (High Capacity Pick Up, 110" Wheelbase, Crew Cab HCPU, 130" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 ALA710240
PANEL - BODY SIDE
110" Wheelbase, High Capacity Pick Up / RH 		- 1 Enquire
1 ALA710280
PANEL - BODY SIDE
130" Wheelbase, Crew Cab HCPU / RH 		- 1 Enquire
1 ALA710250
PANEL - BODY SIDE
110" Wheelbase, High Capacity Pick Up / LH 		- 1 Enquire
1 ALA710290
PANEL - BODY SIDE
130" Wheelbase, Crew Cab HCPU / LH 		- 1 Enquire
2 MTC5038
PILLAR - REAR
RH 		- 1 Enquire
2 MTC5039
PILLAR - REAR
LH 		- 1 Enquire
3 MTC1479
PILLAR - REAR BODY 		- 2 Enquire
4 AGI710020
PANEL - REAR QUARTER
RH 		- 1 Enquire
4 AGI710030
PANEL - REAR QUARTER
LH 		- 1 Enquire
5 ACU3530
RIVET 		- 16 Enquire
6 AAU6774
COLLAR 		- 16 Enquire
7 ACU1161
RIVET 		- 12 Enquire
8 AAU6774
COLLAR 		- 12 Enquire
9 ACU3530
RIVET 		- 4 Enquire
10 AAU6774
COLLAR 		- 4 Enquire
11 ACU1762
BOLT 		- 4 Enquire
12 ACU1762
BOLT 		- 4 Enquire
13 AAU8182
BOLT 		- 6 Enquire
14 AAU6774
COLLAR 		- 8 Enquire
15 ACU3777
BOLT 		- 22 Enquire
16 RU612183
RIVET 		- 8 Enquire
17 ACU1762
BOLT 		- 4 Enquire
18 ACU1161
RIVET 		- 58 Enquire
19 AAU6774
COLLAR 		- 58 Enquire
20 ACU1762
BOLT 		- 4 Enquire
21 AAU6919
Bolt 		- 4 Enquire
22 AAU6774
COLLAR 		- 4 Enquire
23 3H822L
GROMMET
Lower 		- 2 Enquire
