Land Rover Defender (2007-2016) - Dash Assembly ((V) FROM7A000001)

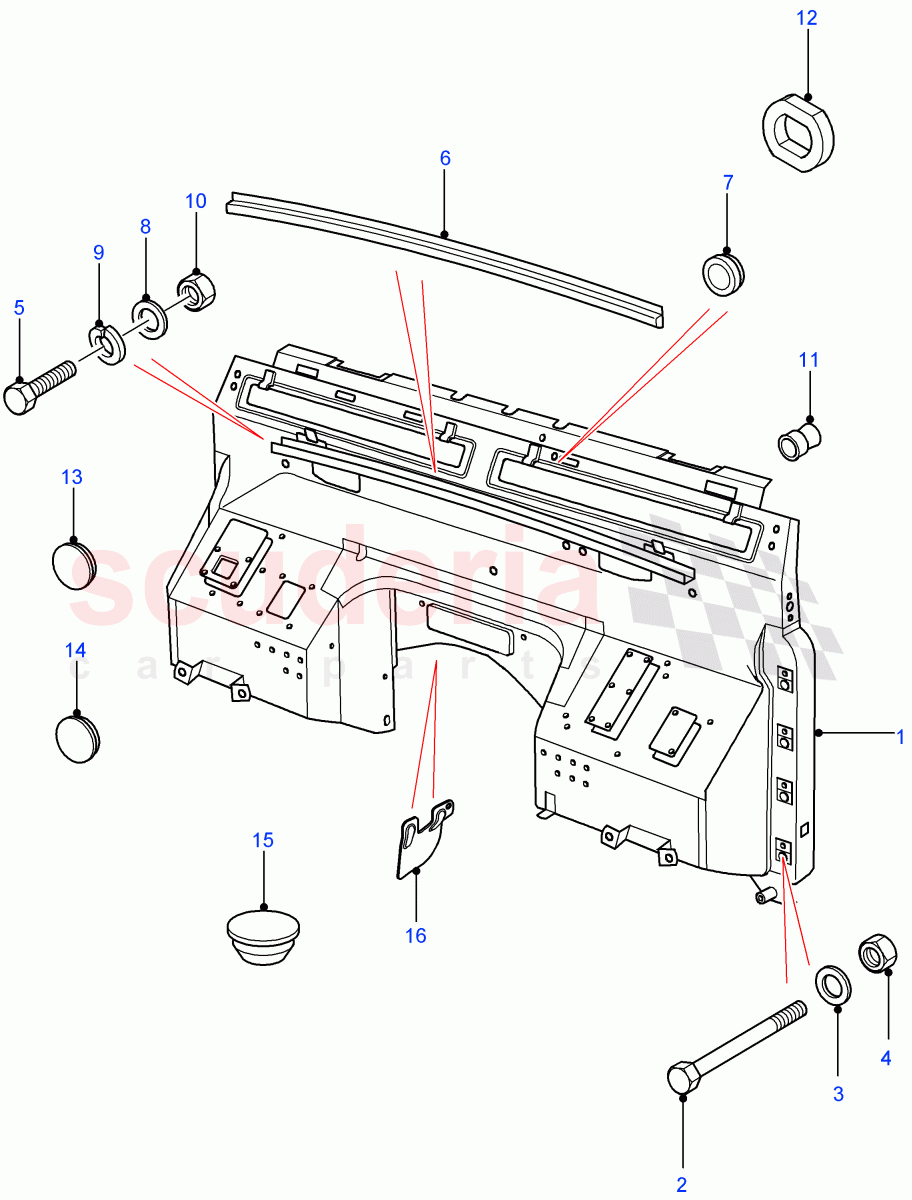

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AHA710550	BULKHEAD - FRONT	Enquire	To Order
	AHA710560	BULKHEAD - FRONT	Enquire	To Order
	LR031930	BULKHEAD - FRONT	Enquire	To Order

...and 7 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AYG500080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA112081L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NH112041L	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AFU1499	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MWC2567	SEAL	Enquire	To Order
	LR053843	SEAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MWC2309	PLUG - BLANKING	Enquire	To Order
	DYB000030	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WC108051L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WL108007	WASHER - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYH500290	NUT - HEX.	Enquire	To Order
	LR014149	NUT - HEX.	Enquire	To Order
	LR023485	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	DKK500010	SEAL - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	345140	GROMMET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	14A7081	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AYB000030	PLUG - BODY SEALING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR057318	BRACKET - FLOOR TUNNEL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AHA710550	BULKHEAD - FRONT	AHA710550 BULKHEAD - FRONT LHD / To: BA666665	-	1	Enquire
1	AHA710560	BULKHEAD - FRONT	AHA710560 BULKHEAD - FRONT RHD / To: BA666665	-	1	Enquire
1	LR031930	BULKHEAD - FRONT	LR031930 BULKHEAD - FRONT LHD / From: BA666666 / To: BA999999	-	1	Enquire
1	LR031931	BULKHEAD - FRONT	LR031931 BULKHEAD - FRONT RHD / From: BA666666 / To: BA999999	-	1	Enquire
1	LR029559	BULKHEAD - FRONT	LR029559 BULKHEAD - FRONT RHD / From: CA000001 / To: CA555554	-	1	Enquire
1	LR029560	BULKHEAD - FRONT	LR029560 BULKHEAD - FRONT LHD / From: CA000001 / To: CA555554	-	1	Enquire
1	LR040901	BULKHEAD - FRONT	LR040901 BULKHEAD - FRONT RHD / From: CA555555 / To: EA999999	-	1	Enquire
1	LR040902	BULKHEAD - FRONT	LR040902 BULKHEAD - FRONT LHD / From: CA555555 / To: EA000001	-	1	Enquire
1	LR055937	BULKHEAD - FRONT	LR055937 BULKHEAD - FRONT RHD / From: FA000001	-	1	Enquire
1	LR055938	BULKHEAD - FRONT	LR055938 BULKHEAD - FRONT LHD / From: FA000001	-	1	Enquire
2	AYG500080	BOLT	AYG500080 BOLT M12 x 180, to dash assembly	-	2	Enquire
3	WA112081L	WASHER	WA112081L WASHER M12, Plain, Standard	-	5	Enquire
4	NH112041L	NUT - HEX.	NH112041L NUT - HEX. Hexagonal, M12	-	2	Enquire
5	AFU1499	SCREW	AFU1499 SCREW M8 x 25, to dash assembly	-	4	Enquire
6	MWC2567	SEAL	MWC2567 SEAL Drain channel / To: DA438753	-	1	Enquire
6	LR053843	SEAL	LR053843 SEAL Drain channel / From: DA438754	-	1	Enquire
7	MWC2309	PLUG - BLANKING	MWC2309 PLUG - BLANKING wiper spindle	-	2	Enquire
7	DYB000030	PLUG	DYB000030 PLUG 12 X 18MM	-	2	Enquire
8	WC108051L	WASHER	WC108051L WASHER M8	-	4	Enquire
9	WL108007	WASHER - SPRING	WL108007 WASHER - SPRING M8, sprung	-	4	Enquire
10	FN108046	NUT - HEX.	FN108046 NUT - HEX. Flanged Head, M8	-	4	Enquire
11	AYH500290	NUT - HEX.	AYH500290 NUT - HEX. blind, M8 / To: 9A777776	-	2	Enquire
11	LR014149	NUT - HEX.	LR014149 NUT - HEX. blind, M8 / From: 9A777777 / To: AA777776	-	2	Enquire
11	LR023485	NUT - HEX.	LR023485 NUT - HEX. blind, M8 / From: AA777777	-	2	Enquire
12	DKK500010	SEAL - SPECIAL	DKK500010 SEAL - SPECIAL wiper spindle	-	-	Enquire
13	345140	GROMMET	345140 GROMMET Heater	-	1	Enquire
14	14A7081	PLUG - BLANKING	14A7081 PLUG - BLANKING 25mm diameter	-	1	Enquire
15	AYB000030	PLUG - BODY SEALING	AYB000030 PLUG - BODY SEALING	-	1	Enquire
16	LR057318	BRACKET - FLOOR TUNNEL	LR057318 BRACKET - FLOOR TUNNEL	-	1	Enquire
