Seat Base Assembly ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Seat Base Assembly ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ADH710210 SEAT BASE - COVER PAD AND BASE Enquire To Order
LR029568 SEAT BASE - COVER PAD AND BASE Enquire To Order
LR039637 SEAT BASE - COVER PAD AND BASE Enquire To Order
Photo Part No Description Price (each) Stock
ACC710490 TRAY - BATTERY Enquire To Order
LR012214 TRAY - BATTERY Enquire To Order
LR066517 TRAY - BATTERY Enquire To Order
Photo Part No Description Price (each) Stock
RU612253 Rivet Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
SH106202 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
MRC5525 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
MRC8626 SEAL Enquire To Order
LR055349 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
SH106202 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
BYF500030 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
NK106082 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
MRC5525 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
ACC710620 BASE - SEAT Enquire To Order
Photo Part No Description Price (each) Stock
HXX500160 BRACKET - SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
AFP710230 SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
KRN500240 REINFORCEMENT - FLOOR PAN Enquire To Order
KRN500280 REINFORCEMENT - FLOOR PAN Enquire To Order
KRN500300 REINFORCEMENT - FLOOR PAN Enquire To Order
Photo Part No Description Price (each) Stock
KRN500250 REINFORCEMENT - FLOOR PAN Enquire To Order
KRN500290 REINFORCEMENT - FLOOR PAN Enquire To Order
KRN500310 REINFORCEMENT - FLOOR PAN Enquire To Order
Photo Part No Description Price (each) Stock
DYH500010 NUT Enquire To Order
Photo Part No Description Price (each) Stock
FS106166 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
14A7081L PLUG - BLANKING Enquire To Order
View All

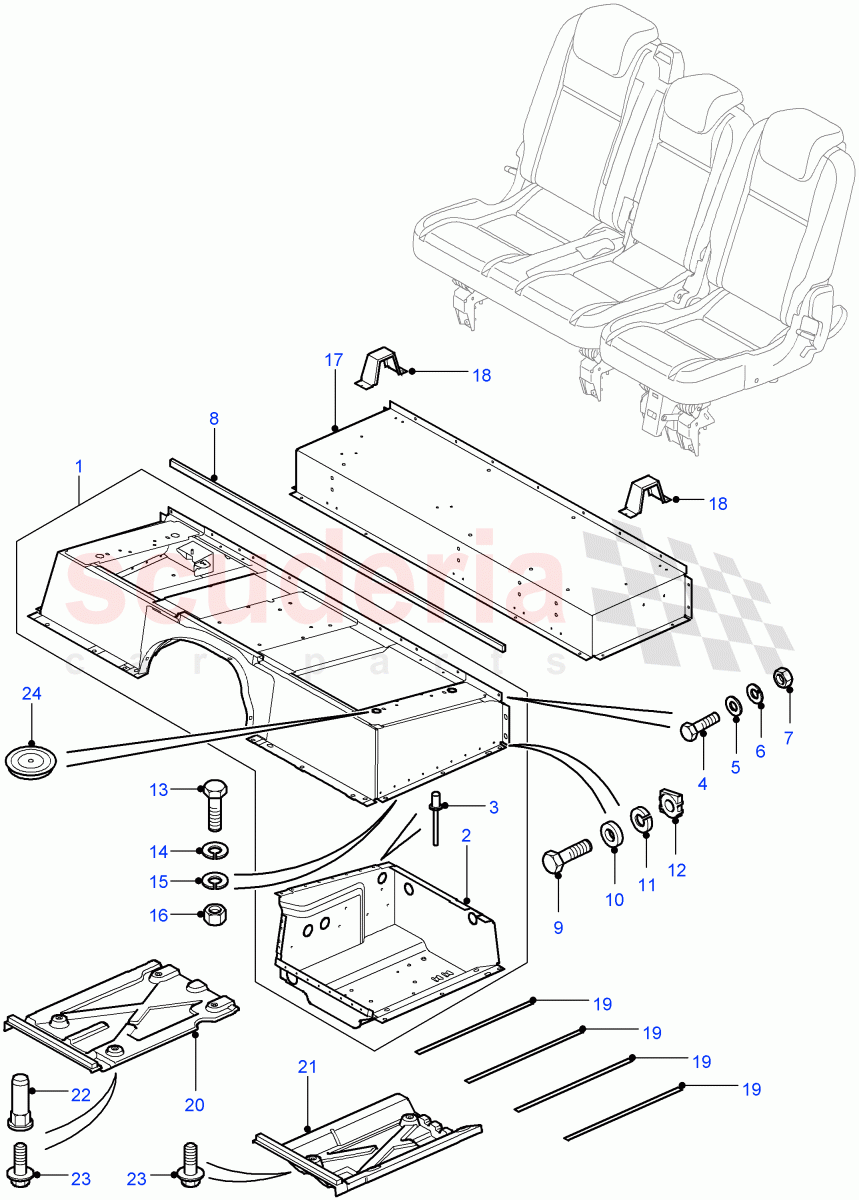

Seat Base Assembly ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 ADH710210
SEAT BASE - COVER PAD AND BASE
To: BA999999 		- 1 Enquire
1 LR029568
SEAT BASE - COVER PAD AND BASE
From: CA000001 / To: CA555554 		- 1 Enquire
1 LR039637
SEAT BASE - COVER PAD AND BASE
From: CA555555 		- 1 Enquire
2 ACC710490
TRAY - BATTERY
To: 9A777776 		- 1 Enquire
2 LR012214
TRAY - BATTERY
From: 9A777777 / To: EA453345 		- 1 Enquire
2 LR066517
TRAY - BATTERY
From: EA453346 		- 1 Enquire
3 RU612253
Rivet
3/16" x 0.45"lng 		- - Enquire
4 FS106206
SCREW
Flanged Head, M6 X 20MM / To: 9A766283 		- 9 Enquire
4 SH106202
SCREW
Flanged Head, M6 X 20MM / From: 9A766284 		- 9 Enquire
5 MRC5525
WASHER
Standard 		- 18 Enquire
6 WL106002
RESTRICTOR
M6, sprung 		- 9 Enquire
7 FN106046
NUT - HEX.
M6 		- 9 Enquire
8 MRC8626
SEAL
1.6M / To: DA445715 		- 1 Enquire
8 LR055349
SEAL
1.6M / From: DA445716 		- 1 Enquire
9 FS106206
SCREW
Flanged Head, M6 X 20MM / To: 9A766283 		- 2 Enquire
9 SH106202
SCREW
Flanged Head, M6 X 20MM / From: 9A766284 		- 2 Enquire
10 BYF500030
WASHER
Plain 		- 4 Enquire
11 WL106002
RESTRICTOR
M6, sprung 		- 4 Enquire
12 NK106082
NUT - FLANGED 		- 4 Enquire
13 FS106206
SCREW
Flanged Head, M6 X 20MM 		- 6 Enquire
14 MRC5525
WASHER 		- 12 Enquire
15 WL106002
RESTRICTOR
M6, sprung 		- 6 Enquire
16 FN106046
NUT - HEX.
M6 		- 6 Enquire
17 ACC710620
BASE - SEAT
130" Wheelbase, Chassis Crew Cab 		- 1 Enquire
18 HXX500160
BRACKET - SUPPORT
130" Wheelbase, Chassis Crew Cab 		- 2 Enquire
19 AFP710230
SUPPORT
Seats 		- 4 Enquire
20 KRN500240
REINFORCEMENT - FLOOR PAN
RH, Underbody / To: 8A752910 		- 1 Enquire
20 KRN500280
REINFORCEMENT - FLOOR PAN
Less Side Runners / RH, Underbody / From: 8A752911 		- 1 Enquire
20 KRN500300
REINFORCEMENT - FLOOR PAN
With Side Runners / RH, Underbody / From: 8A752911 		- 1 Enquire
21 KRN500250
REINFORCEMENT - FLOOR PAN
LH, Underbody / To: 8A752910 		- 1 Enquire
21 KRN500290
REINFORCEMENT - FLOOR PAN
Less Side Runners / LH, Underbody / From: 8A752911 		- 1 Enquire
21 KRN500310
REINFORCEMENT - FLOOR PAN
With Side Runners / LH, Underbody / From: 8A752911 		- 1 Enquire
22 DYH500010
NUT
M6 		- 4 Enquire
23 FS106166
SCREW
M6 X 16MM 		- 8 Enquire
24 14A7081L
PLUG - BLANKING
Less Heated Seats 		- 2 Enquire
