Radiator Grille ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Radiator Grille ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
ASJ710040 FRAME - RADIATOR GRILLE Enquire To Order
ASJ710060 FRAME - RADIATOR GRILLE Enquire To Order
LR059123 FRAME - RADIATOR GRILLE Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AB606056 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WC105007 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
RTC3745 NUT - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
AB614065L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
NJ108061L NUT - HEX. Enquire To Order
NJ108062 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
MTC6332 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
AB614065L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WL106005L WASHER - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
WA106045L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
AK612016 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
LR038615 GRILLE - RADIATOR Enquire To Order
ALR8765LQV GRILLE - RADIATOR Enquire To Order
LR038615 GRILLE - RADIATOR Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MTC4220 GUARD Enquire To Order
Photo Part No Description Price (each) Stock
AB614088 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WA106045L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
CZA4705L NUT - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
SE105161L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WC105001L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WF105001L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
MTC6827 BRACKET - RADIATOR GRILLE Enquire To Order
Photo Part No Description Price (each) Stock
RA610183 RIVET Enquire To Order
Photo Part No Description Price (each) Stock
14A7081 PLUG - BLANKING Enquire To Order
Photo Part No Description Price (each) Stock
DZM100080 FASTENER Enquire To Order
MWC9832PMA FASTENER Enquire To Order
View All

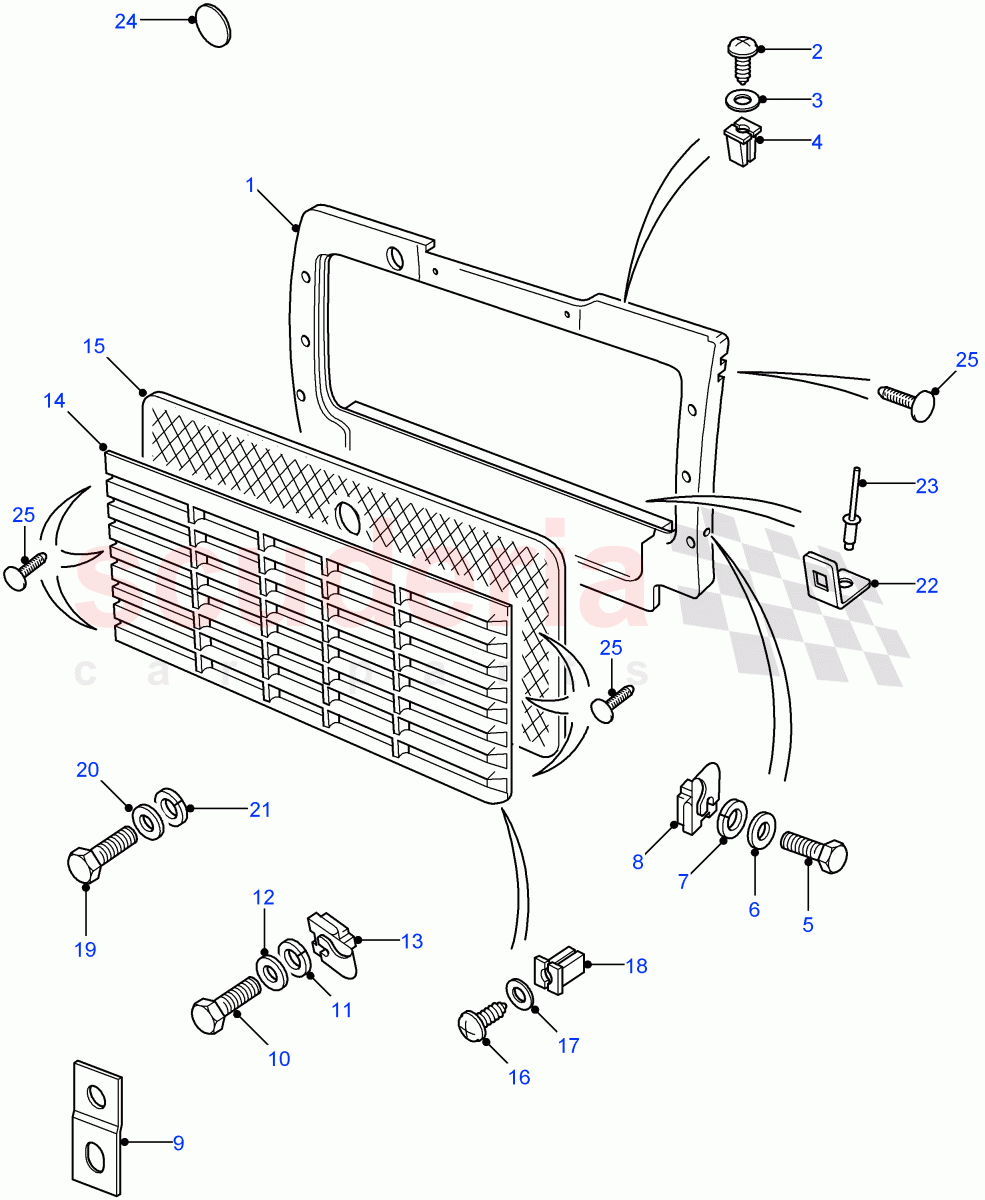

Radiator Grille ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 ASJ710040
FRAME - RADIATOR GRILLE
Less Air Conditioning / Metal 		- 1 Enquire
1 ASJ710060
FRAME - RADIATOR GRILLE
With Manual Air Conditioning / Plastic 		- 1 Enquire
1 LR059123
FRAME - RADIATOR GRILLE
With Indus Silver Grille Type / From: FA000001 		- 1 Enquire
1 LR059124
FRAME - RADIATOR GRILLE
With Black Gloss Grille / From: FA000001 		- 1 Enquire
2 AB606056
SCREW
Long, No 6 x 5/8, Self Tapping, to grille assembly 		- 4 Enquire
3 WC105007
WASHER
Large 		- 4 Enquire
4 RTC3745
NUT - LOCKING 		- 4 Enquire
5 AB614065L
SCREW
Black, No 14 x 3/4 		- 2 Enquire
6 WA108056
WASHER
M8, sprung 		- 2 Enquire
7 WA108056
WASHER
8MM 		- 2 Enquire
8 NJ108061L
NUT - HEX.
retaining / To: 7A999999 		- 2 Enquire
8 NJ108062
NUT - HEX.
retaining / From: 8A000001 		- 2 Enquire
9 MTC6332
BRACKET
With Manual Air Conditioning 		- 1 Enquire
10 AB614065L
SCREW
With Manual Air Conditioning / Self Tapping, To nut spring 		- 2 Enquire
11 WL106005L
WASHER - SPRING
rectangular 		- 2 Enquire
12 WA106045L
WASHER
With Manual Air Conditioning / standard. 		- 2 Enquire
13 AK612016
NUT - HEX.
With Manual Air Conditioning 		- 2 Enquire
14 LR038615
GRILLE - RADIATOR
With Graphite Grille / To: CA426892 		- 1 Enquire
14 ALR8765LQV
GRILLE - RADIATOR
With Brunel Grille / To: CA426892 		- 1 Enquire
14 LR038615
GRILLE - RADIATOR
With Graphite Grille / From: CA426893 		- 1 Enquire
14 LR038617
GRILLE - RADIATOR
With Brunel Grille / From: CA426893 		- 1 Enquire
14 LR059125
GRILLE - RADIATOR
With Indus Silver Grille Type / From: FA000001 		- 1 Enquire
14 LR051771
GRILLE - RADIATOR
With Black Gloss Grille / From: FA000001 		- 1 Enquire
15 MTC4220
GUARD 		- 1 Enquire
16 AB614088
SCREW
Less Air Conditioning / Long, No14 x 1.0, To frame grille 		- 8 Enquire
17 WA106045L
WASHER
standard. 		- 8 Enquire
18 CZA4705L
NUT - LOCKING
Less Air Conditioning 		- 8 Enquire
19 SE105161L
SCREW
With Manual Air Conditioning / M5 x 16, Pan Head, recessed, To frame grille 		- 8 Enquire
20 WC105001L
WASHER
With Manual Air Conditioning / Large, M5, Plain 		- 8 Enquire
21 WF105001L
WASHER
With Manual Air Conditioning / M5, starlock 		- 8 Enquire
22 MTC6827
BRACKET - RADIATOR GRILLE
Less Air Conditioning 		- 2 Enquire
23 RA610183
RIVET
Less Air Conditioning / 5/32" x 0.335"lng 		- 2 Enquire
24 14A7081
PLUG - BLANKING
25mm diameter, Plastic 		- - Enquire
25 DZM100080
FASTENER
With Manual Air Conditioning / Black / To: 7A999999 		- 8 Enquire
25 MWC9832PMA
FASTENER
With Manual Air Conditioning / From: 8A000001 		- 8 Enquire
