Name: Step Assembly-Rear End Door ((V) FROM7A000001)
Rating: 5.0 (1 reviews)

View All

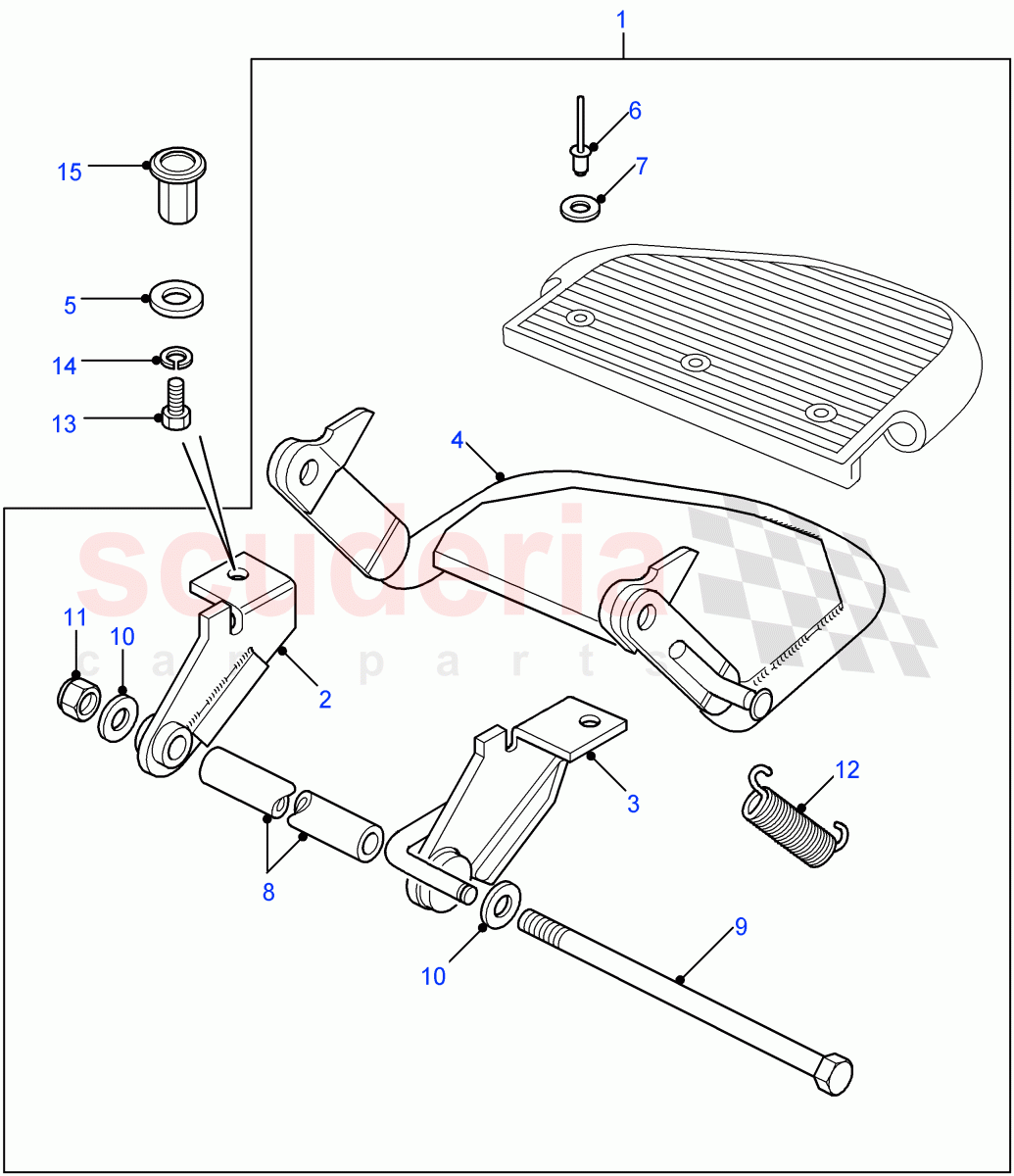

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	MTC3086	RETAINER	$42.86	To Order

Photo	Part No	Description	Price (each)	Stock
	MTC3087	RETAINER	$41.28	To Order

Photo	Part No	Description	Price (each)	Stock
	KVI100040	STEP - REAR	$144.59	To Order

Photo	Part No	Description	Price (each)	Stock
	VYF500070	WASHER	$2.89	To Order

Photo	Part No	Description	Price (each)	Stock
	RU612373L	RIVET	$3.15	To Order

Photo	Part No	Description	Price (each)	Stock
	WA105001L	WASHER	$1.78	To Order

Photo	Part No	Description	Price (each)	Stock
	MTC3099	Spacer	$10.94	To Order

Photo	Part No	Description	Price (each)	Stock
	BH110521	BOLT	$45.40	To Order

Photo	Part No	Description	Price (each)	Stock
	WC110066	WASHER	$1.07	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110046	NUT - HEX.	$2.82	To Order

Photo	Part No	Description	Price (each)	Stock
	MTC1233	SPRING	$14.53	To Order

Photo	Part No	Description	Price (each)	Stock
	SH110201L	SCREW	$2.66	To Order

Photo	Part No	Description	Price (each)	Stock
	WL110001L	WASHER	$0.70	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WYH100470	NUT - HEX.	$3.85	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	KVI100030	KIT - STEP REAR	KVI100030 KIT - STEP REAR folding, Production Fit / To: AA795148	$181.54	1
1	LR016430	KIT - STEP REAR	LR016430 KIT - STEP REAR folding, Production Fit / From: AA795149	$244.96	1
2	MTC3086	RETAINER	MTC3086 RETAINER RH	$42.86	1
3	MTC3087	RETAINER	MTC3087 RETAINER LH	$41.28	1
4	KVI100040	STEP - REAR	KVI100040 STEP - REAR with bonded mat	$144.59	1
5	VYF500070	WASHER	VYF500070 WASHER	$2.89	1
6	RU612373L	RIVET	RU612373L RIVET 3/16" x 0.575"lng	$3.15	7
7	WA105001L	WASHER	WA105001L WASHER M5, Plain, Standard	$1.78	-
8	MTC3099	Spacer	MTC3099 Spacer	$10.94	1
9	BH110521	BOLT	BH110521 BOLT	$45.40	1
10	WC110066	WASHER	WC110066 WASHER	$1.07	2
11	FY110046	NUT - HEX.	FY110046 NUT - HEX. nyloc	$2.82	1
12	MTC1233	SPRING	MTC1233 SPRING	$14.53	1
13	SH110201L	SCREW	SH110201L SCREW Hexagonal Head, M10 x 20, Retainer	$2.66	2
14	WL110001L	WASHER IN STOCK	WL110001L WASHER M10 IN STOCK	$0.70	2
15	WYH100470	NUT - HEX.	WYH100470 NUT - HEX. Hexagonal, M10	$3.85	2

Step Assembly-Rear End Door ((V) From7A000001)

Land Rover Defender (2007-2016)
