Rear Side Door Hinges & Check Strap ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

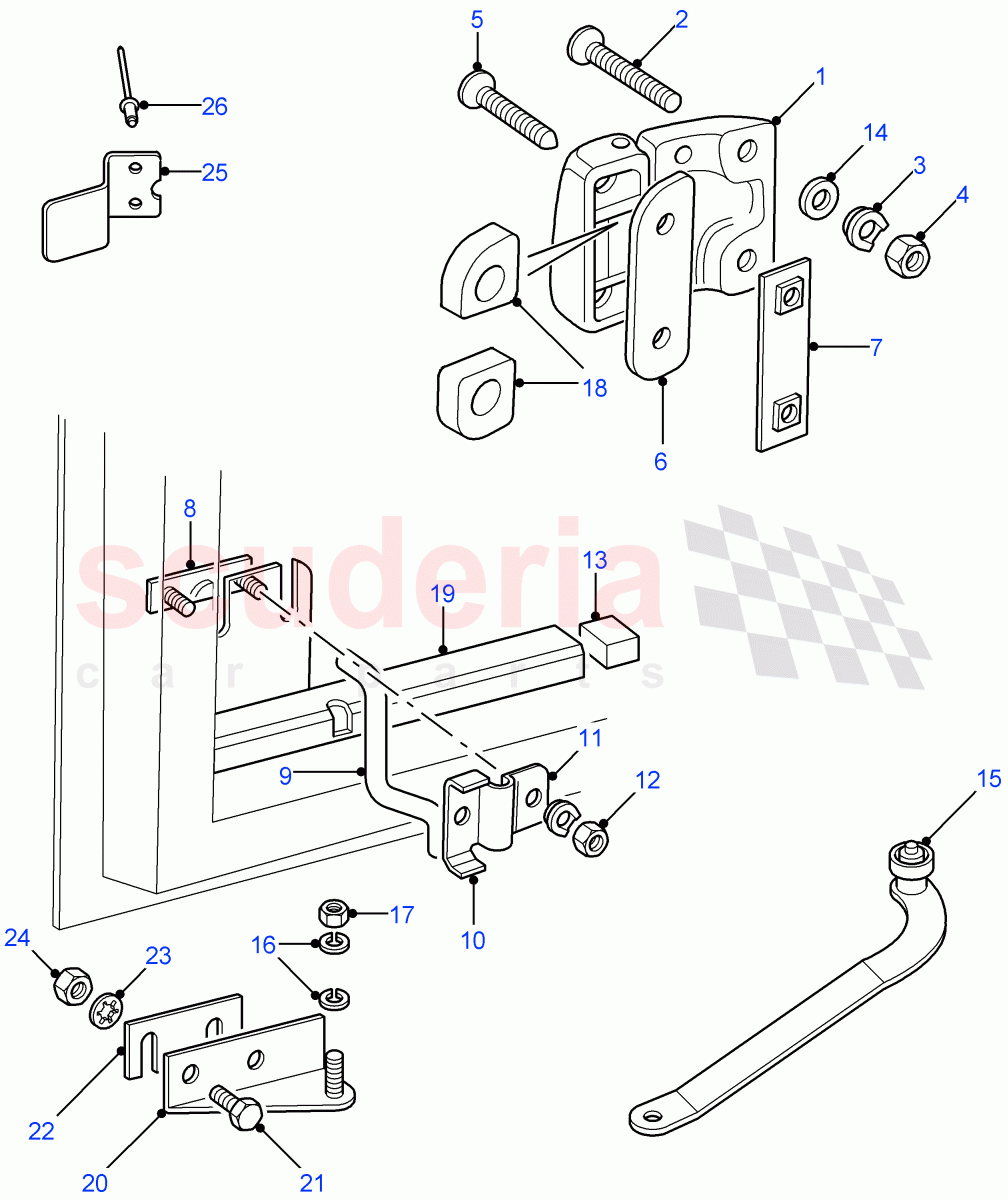

Land Rover Defender (2007-2016) - Rear Side Door Hinges & Check Strap ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	BDB710220	HINGE - DOOR	Enquire	To Order
	BDB710230	HINGE - DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYG500070	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MRC1980	WASHER - NYLON	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NH605041L	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BYG500090	BOLT	Enquire	To Order
	BYG500080	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BDC710040	SPACER - HINGE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MUC9110	PLATE	Enquire	To Order
	LR016715	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BFU710200	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ALR2318	BAR - TORSION	Enquire	To Order
	ALR2319	BAR - TORSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MWC6450	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA106042	RESTRICTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MWC6291	BUMP STOP	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	349955	WASHER - RUBBER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BFH710140	CHECK - DOOR	Enquire	To Order
	BFH710150	CHECK - DOOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA108056	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NZ108041	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BDC710100	INSERT	Enquire	To Order
	BDC710110	INSERT	Enquire	To Order
	BDC710120	INSERT	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	BFH710120	BRACKET	Enquire	To Order
	BFH710130	BRACKET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BFU710160	BRACKET	Enquire	To Order
	BFU710170	BRACKET	Enquire	To Order
	LR012203	BRACKET	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	305232	SHIM	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WF108001L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN108046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ALR9160	PLATE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RU610183L	RIVET	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	BDB710220	HINGE - DOOR	BDB710220 HINGE - DOOR RH, Self Colour	-	2	Enquire
1	BDB710230	HINGE - DOOR	BDB710230 HINGE - DOOR LH, Self Colour	-	2	Enquire
2	BYG500070	BOLT	BYG500070 BOLT counter sunk, M8 x 55, Torx Drive	-	8	Enquire
3	MRC1980	WASHER - NYLON	MRC1980 WASHER - NYLON	-	8	Enquire
4	NH605041L	NUT - HEX.	NH605041L NUT - HEX. 5/16UNF, Hexagonal Head	-	8	Enquire
5	BYG500090	BOLT	BYG500090 BOLT counter sunk, Lower, M8 x 95MM, Torx Drive	-	4	Enquire
5	BYG500080	BOLT	BYG500080 BOLT counter sunk, M8 x 85MM, Torx Drive, Upper	-	4	Enquire
6	BDC710040	SPACER - HINGE	BDC710040 SPACER - HINGE Plastic	-	4	Enquire
7	MUC9110	PLATE	MUC9110 PLATE To: 9A888887	-	4	Enquire
7	LR016715	PLATE	LR016715 PLATE From: 9A888888	-	4	Enquire
8	BFU710200	STUD	BFU710200 STUD	-	2	Enquire
9	ALR2318	BAR - TORSION	ALR2318 BAR - TORSION RH	-	1	Enquire
9	ALR2319	BAR - TORSION	ALR2319 BAR - TORSION LH	-	1	Enquire
10	MWC6450	BRACKET	MWC6450 BRACKET	-	2	Enquire
11	WA106042	RESTRICTOR	WA106042 RESTRICTOR 6MM, Plain	-	4	Enquire
12	FN106046	NUT - HEX.	FN106046 NUT - HEX. M6	-	4	Enquire
13	MWC6291	BUMP STOP	MWC6291 BUMP STOP	-	2	Enquire
14	349955	WASHER - RUBBER	349955 WASHER - RUBBER Use As Required	-	-	Enquire
15	BFH710140	CHECK - DOOR	BFH710140 CHECK - DOOR RH	-	1	Enquire
15	BFH710150	CHECK - DOOR	BFH710150 CHECK - DOOR LH	-	1	Enquire
16	WA108056	WASHER	WA108056 WASHER 8MM	-	4	Enquire
17	NZ108041	NUT - HEX.	NZ108041 NUT - HEX. M8, nyloc	-	2	Enquire
18	BDC710100	INSERT	BDC710100 INSERT RH, Upper	-	2	Enquire
18	BDC710110	INSERT	BDC710110 INSERT LH, Upper	-	2	Enquire
18	BDC710120	INSERT	BDC710120 INSERT RH, Lower	-	2	Enquire
18	BDC710130	INSERT	BDC710130 INSERT LH, Lower	-	2	Enquire
19	BFH710120	BRACKET	BFH710120 BRACKET RH, Checker assembly-rear door	-	1	Enquire
19	BFH710130	BRACKET	BFH710130 BRACKET LH, Checker assembly-rear door	-	1	Enquire
20	BFU710160	BRACKET	BFU710160 BRACKET RH / To: 9A767776	-	1	Enquire
20	BFU710170	BRACKET	BFU710170 BRACKET LH / To: 9A767776	-	1	Enquire
20	LR012203	BRACKET	LR012203 BRACKET RH / From: 9A767777	-	1	Enquire
20	LR012202	BRACKET	LR012202 BRACKET LH / From: 9A767777	-	1	Enquire
21	FS108256	BOLT	FS108256 BOLT Flanged Head, M8 x 25	-	4	Enquire
22	305232	SHIM	305232 SHIM	-	4	Enquire
23	WF108001L	WASHER	WF108001L WASHER M8, starlock	-	4	Enquire
24	FN108046	NUT - HEX.	FN108046 NUT - HEX. Flanged Head, M8	-	4	Enquire
25	ALR9160	PLATE	ALR9160 PLATE	-	1	Enquire
26	RU610183L	RIVET	RU610183L RIVET	-	4	Enquire
