Rear End Door Latch Mechanism (Hard Top, 110" Wheelbase, 90" Wheelbase, Station Wagon - 5 Door,...

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Rear End Door Latch Mechanism (Hard Top, 110" Wheelbase, 90" Wheelbase, Station Wagon - 5 Door,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FUB500060 LATCH Enquire To Order
FQJ500340 LATCH Enquire To Order
LR031336 LATCH Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
SE106161L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
EKC000030PMA SEAL Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FQB500160 STRIKER - DOOR LOCKING MECHANISM Enquire To Order
LR032382 STRIKER - DOOR LOCKING MECHANISM Enquire To Order
LR067267 STRIKER - DOOR LOCKING MECHANISM Enquire To Order
Photo Part No Description Price (each) Stock
FRN500020 SEAL Enquire To Order
LR032389 SEAL - DOOR LOCK - COVER PLATE Enquire To Order
Photo Part No Description Price (each) Stock
FUD500030 ACTUATOR Enquire To Order
Photo Part No Description Price (each) Stock
FUH000010 BRACKET - ACTUATOR MOUNTING Enquire To Order
Photo Part No Description Price (each) Stock
FQS000030 LINK - DOOR LOCK CONTROL Enquire To Order
Photo Part No Description Price (each) Stock
CWH000010 CLIP - LINK Enquire To Order
Photo Part No Description Price (each) Stock
FQF000040 LEVER - BELL CRANK Enquire To Order
View All

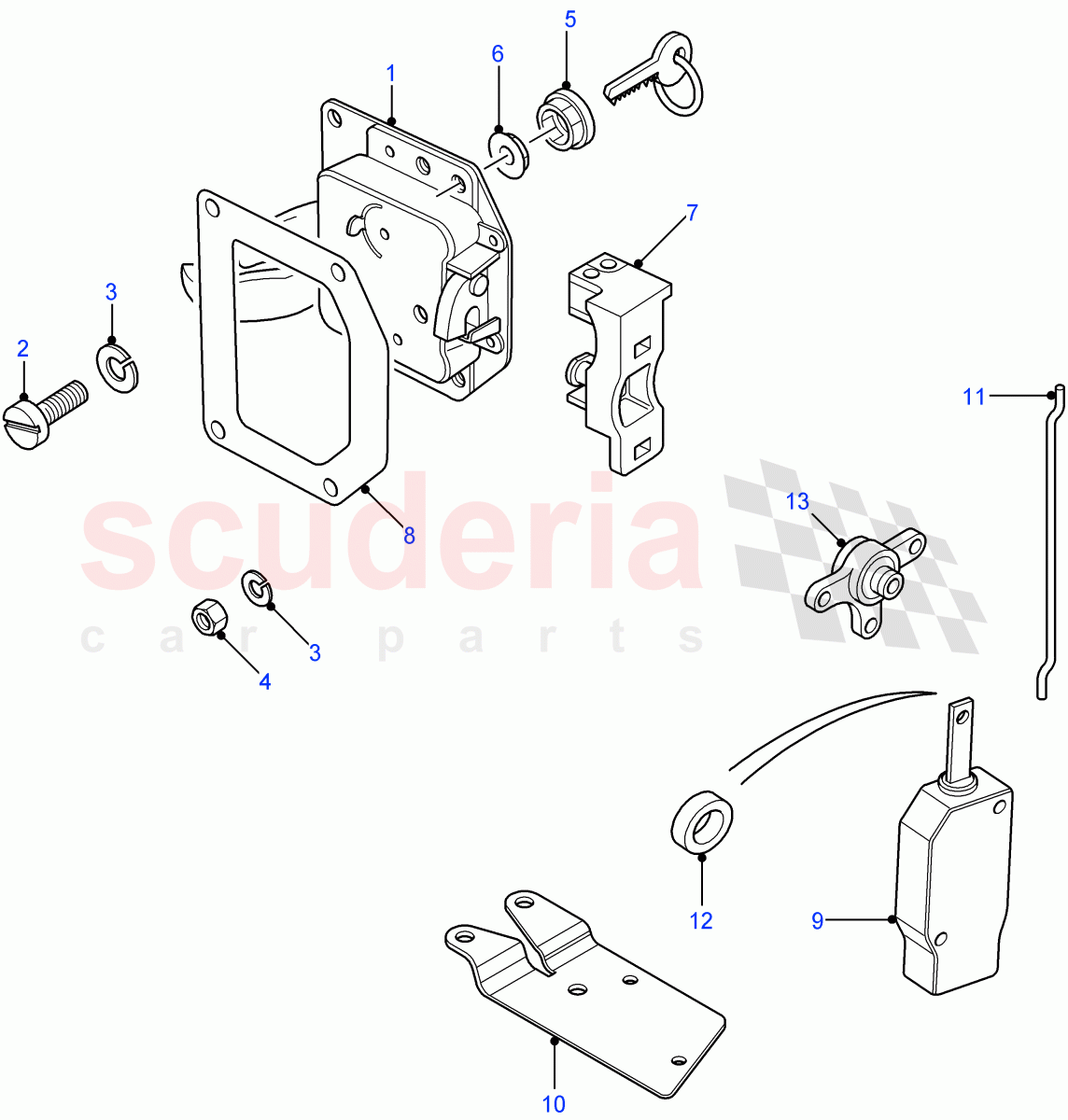

Rear End Door Latch Mechanism (Hard Top, 110" Wheelbase, 90" Wheelbase, Station Wagon - 5 Door, Station Wagon - 3 Door) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 FUB500060
LATCH
With Door Entry Remote Control Unit / To: BA999999 		- 1 Enquire
1 FQJ500340
LATCH
Less Door Entry Remote Control Unit / To: BA999999 		- 1 Enquire
1 LR031336
LATCH
Less Door Entry Remote Control Unit / From: CA000001 		- 1 Enquire
1 LR031337
LATCH
With Door Entry Remote Control Unit / From: CA000001 		- 1 Enquire
2 SE106161L
SCREW
M6 X 16MM, to nut plate 		- 2 Enquire
3 WL106002
RESTRICTOR
M6, sprung 		- 4 Enquire
4 FN106046
NUT - HEX.
M6 		- 2 Enquire
5 EKC000030PMA
SEAL 		- 1 Enquire
6 FN106046
NUT - HEX.
M6 		- 2 Enquire
7 FQB500160
STRIKER - DOOR LOCKING MECHANISM
To: BA999999 		- 1 Enquire
7 LR032382
STRIKER - DOOR LOCKING MECHANISM
From: CA000001 / To: FA456323 		- 1 Enquire
7 LR067267
STRIKER - DOOR LOCKING MECHANISM
From: FA456324 		- 1 Enquire
8 FRN500020
SEAL
To: BA999999 		- 1 Enquire
8 LR032389
SEAL - DOOR LOCK - COVER PLATE
From: CA000001 		- 1 Enquire
9 FUD500030
ACTUATOR 		- 1 Enquire
10 FUH000010
BRACKET - ACTUATOR MOUNTING 		- 1 Enquire
11 FQS000030
LINK - DOOR LOCK CONTROL 		- 2 Enquire
12 CWH000010
CLIP - LINK 		- 1 Enquire
13 FQF000040
LEVER - BELL CRANK 		- 2 Enquire
14 DA608046
SCREW - SELF-TAPPING
8 x 13MM, Flanged Head 		- 2 Enquire
