Rear Body Lower - Less Bulkhead (90" Wheelbase, Less Bulkhead) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Rear Body Lower - Less Bulkhead (90" Wheelbase, Less Bulkhead) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

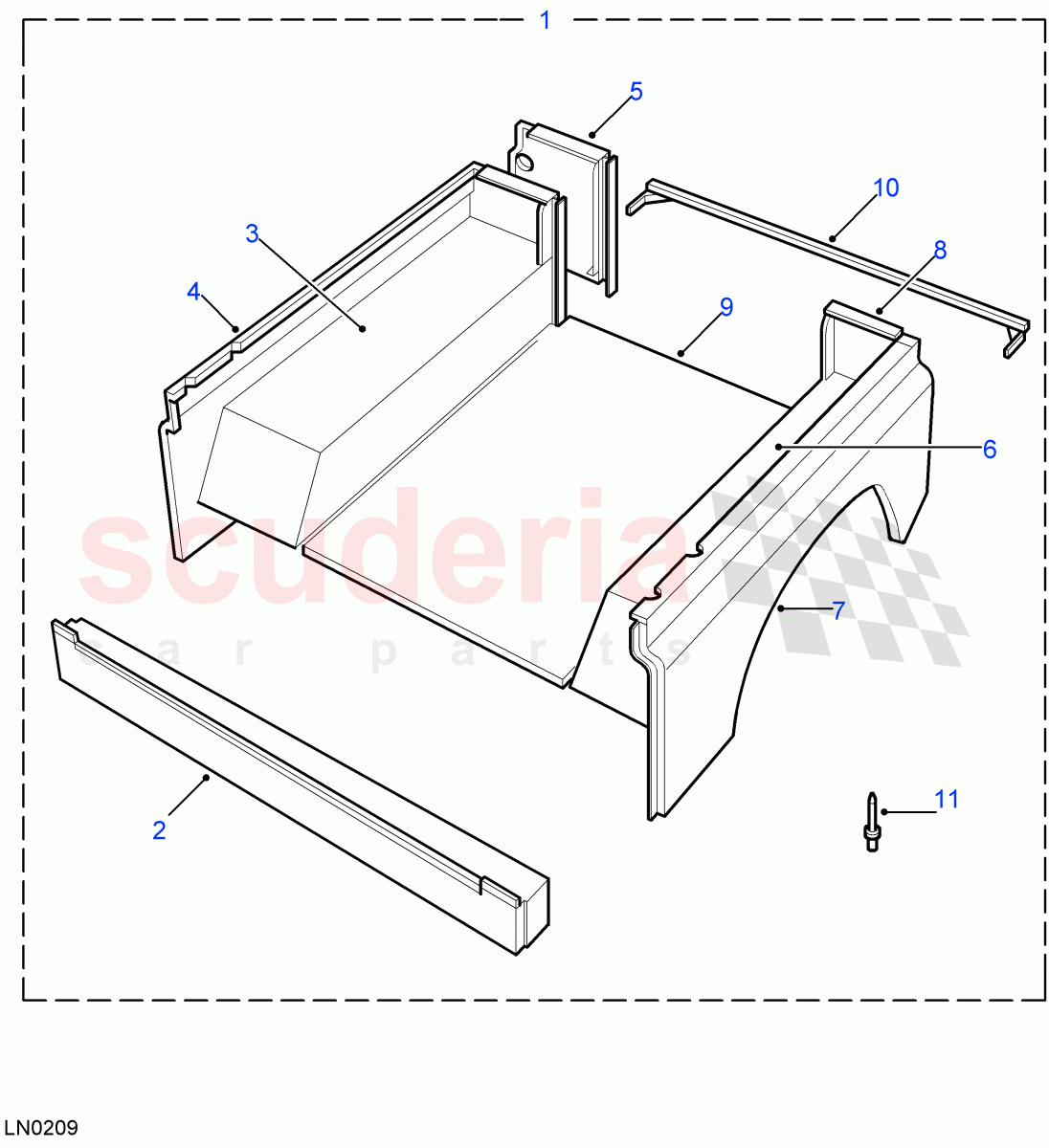

Rear Body Lower - Less Bulkhead (90" Wheelbase, Less Bulkhead) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AQA711070
BODY PANEL - FRONT END
Station Wagon - 3 Door / less rope cleats 		- 1 Enquire
1 LR039122
PANEL - BODY REAR
Hard Top / less rope cleats / From: CA000001 		- 1 Enquire
2 ALR5937
PANEL - SIDE TRIM
Front 		- 1 Enquire
3 ALA711020
PANEL - BODY SIDE
Station Wagon - 3 Door / RH 		- 1 Enquire
3 LR039123
PANEL - BODY SIDE
Hard Top / RH / From: CA000001 		- 1 Enquire
4 ALA710510
PANEL - SIDE TRIM
RH, Lower 		- 1 Enquire
5 STC1854
PANEL
RH 		- 1 Enquire
6 ALA711030
PANEL - BODY SIDE
Station Wagon - 3 Door / LH 		- 1 Enquire
6 LR039124
PANEL - BODY SIDE
Hard Top / LH / From: CA000001 		- 1 Enquire
7 RTC6284
PANEL - SIDE TRIM
LH 		- 1 Enquire
8 STC1855
PANEL
LH 		- 1 Enquire
9 MTC8184
PLATE - FLOOR
Complete Assy, Floor, Rear / To: BA555554 		- 1 Enquire
9 MTC8185
PLATE - FLOOR
Floor, Plate Only, Rear / To: BA555554 		- 1 Enquire
9 LR032943
PLATE - FLOOR
Complete Assy, Floor, Rear / From: BA555555 		- 1 Enquire
9 LR032944
PLATE - FLOOR
Floor, Plate Only, Rear / From: BA555555 		- 1 Enquire
10 AQR710020
FINISHER
Rear 		- 1 Enquire
11 RU612373L
RIVET
3/16" x 0.575"lng 		- 24 Enquire
