Cappings - Rear Body ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

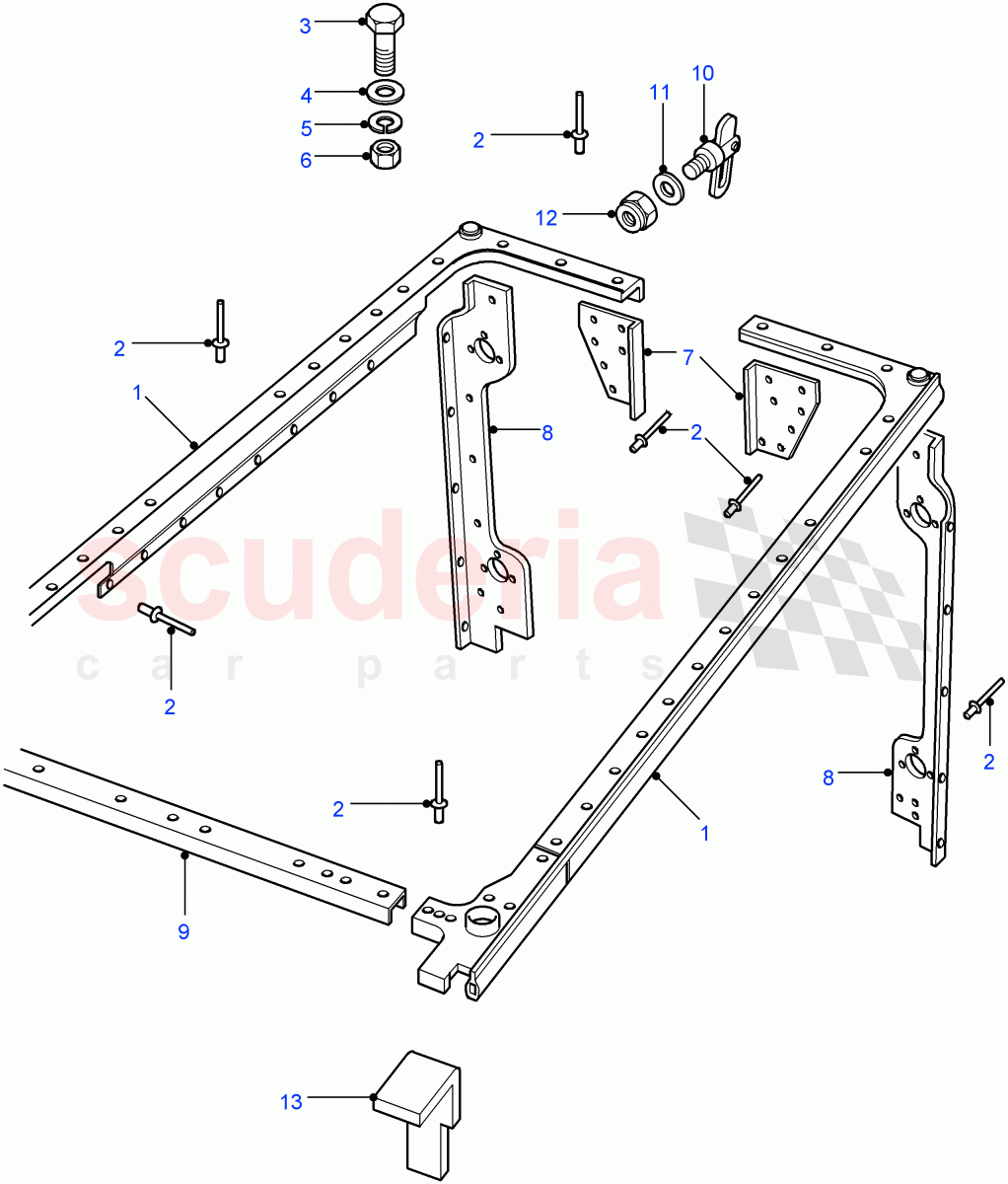

Land Rover Defender (2007-2016) - Cappings - Rear Body ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	ASR1396	FILLER - REAR QUARTER PANEL	Enquire	To Order
	ASR1396	FILLER - REAR QUARTER PANEL	Enquire	To Order
	ASR1397	FILLER - REAR QUARTER PANEL	Enquire	To Order

...and 28 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	RU612373L	RIVET	Enquire	To Order
	LR031461	RIVET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA106042	RESTRICTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WL106002	RESTRICTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY106046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ASR2451	BRACKET	Enquire	To Order
	ASR2451	BRACKET	Enquire	To Order
	ASR2450	BRACKET	Enquire	To Order

...and 13 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AQL710021	FINISHER	Enquire	To Order
	AQL710031	FINISHER	Enquire	To Order
	AQL710240	FINISHER	Enquire	To Order

...and 5 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	MWC2938	FINISHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MUC8748	PIN - FIXING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA112081L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NY112041L	NUT - HEX.	Enquire	To Order
	FY112046	NUT - HEX.	Enquire	To Order
	RYH500510	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR044442	SEAL	Enquire	To Order
	LR054289	SEAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	ASR1396	FILLER - REAR QUARTER PANEL	ASR1396 FILLER - REAR QUARTER PANEL 90" Wheelbase, Soft Top / RH / To: 9A774336	-	1	Enquire
1	ASR1396	FILLER - REAR QUARTER PANEL	ASR1396 FILLER - REAR QUARTER PANEL 90" Wheelbase, Soft Top / RH / To: 9A774336	-	1	Enquire
1	ASR1397	FILLER - REAR QUARTER PANEL	ASR1397 FILLER - REAR QUARTER PANEL 90" Wheelbase, Soft Top / LH / To: 9A774336	-	1	Enquire
1	ASR1397	FILLER - REAR QUARTER PANEL	ASR1397 FILLER - REAR QUARTER PANEL 90" Wheelbase, Soft Top / LH / To: 9A774336	-	1	Enquire
1	AMN710030	FINISHER	AMN710030 FINISHER 110" Wheelbase, Crew Cab Pick Up / LH, Galvanised / To: 9A769248	-	1	Enquire
1	ASR1395	FILLER - REAR QUARTER PANEL	ASR1395 FILLER - REAR QUARTER PANEL 90" Wheelbase, Hard Top / LH / To: 9A769248	-	1	Enquire
1	AMN710420	FINISHER	AMN710420 FINISHER 90" Wheelbase, Less Speaker, Station Wagon - 3 Door / RH / To: 9A769248	-	1	Enquire
1	AMN710430	FINISHER	AMN710430 FINISHER 90" Wheelbase, Less Speaker, Station Wagon - 3 Door / LH / To: 9A769248	-	1	Enquire
1	AMN710890	FINISHER	AMN710890 FINISHER 110" Wheelbase, Crew Cab Pick Up / LH, Galvanised / From: 9A769249	-	1	Enquire
1	AMN710880	FINISHER	AMN710880 FINISHER 110" Wheelbase, Crew Cab Pick Up / RH, Galvanised	-	1	Enquire
1	AMN710750	FINISHER	AMN710750 FINISHER 90" Wheelbase, Less Bulkhead, Station Wagon - 3 Door / LH / From: 9A769249 / To: BA400434	-	1	Enquire
1	AMN710740	FINISHER	AMN710740 FINISHER 90" Wheelbase, Less Bulkhead, Station Wagon - 3 Door / RH / From: 9A769249 / To: BA400434	-	1	Enquire
1	AMN710760	FINISHER	AMN710760 FINISHER 110" Wheelbase, Station Wagon - 5 Door / RH / To: 9A999999	-	1	Enquire
1	LR019163	FINISHER	LR019163 FINISHER 110" Wheelbase, Station Wagon - 5 Door / LH / From: AA000001	-	1	Enquire
1	AMN711050	FILLER - REAR QUARTER PANEL	AMN711050 FILLER - REAR QUARTER PANEL 90" Wheelbase, Station Wagon - 3 Door, With Full Partition - Steel / LH / From: 9A769249	-	1	Enquire
1	AMN711040	FILLER - REAR QUARTER PANEL	AMN711040 FILLER - REAR QUARTER PANEL 90" Wheelbase, Hard Top / RH	-	1	Enquire
1	MXC5973	FINISHER	MXC5973 FINISHER 110" Wheelbase, Soft Top / RH, Galvanised / To: 9A774336	-	1	Enquire
1	MXC5973	FINISHER	MXC5973 FINISHER 110" Wheelbase, Soft Top / RH, Galvanised / To: 9A774336	-	1	Enquire
1	MXC5974	FINISHER	MXC5974 FINISHER 110" Wheelbase, Soft Top / LH, Galvanised / To: 9A774336	-	1	Enquire
1	MXC5974	FINISHER	MXC5974 FINISHER 110" Wheelbase, Soft Top / LH, Galvanised / To: 9A774336	-	1	Enquire
1	AMN711200	FILLER - REAR QUARTER PANEL	AMN711200 FILLER - REAR QUARTER PANEL 90" Wheelbase, Soft Top / RH / From: 9A774337	-	1	Enquire
1	AMN711210	FILLER - REAR QUARTER PANEL	AMN711210 FILLER - REAR QUARTER PANEL 90" Wheelbase, Soft Top / LH / From: 9A774337	-	1	Enquire
1	AMN711210	FILLER - REAR QUARTER PANEL	AMN711210 FILLER - REAR QUARTER PANEL 90" Wheelbase, Soft Top / LH / From: 9A774337	-	1	Enquire
1	AMN711280	FINISHER	AMN711280 FINISHER 110" Wheelbase, Soft Top / RH, Galvanised / From: 9A774337	-	1	Enquire
1	AMN711290	FINISHER	AMN711290 FINISHER 110" Wheelbase, Soft Top / LH, Galvanised / From: 9A774337	-	1	Enquire
1	LR019162	FINISHER	LR019162 FINISHER 110" Wheelbase, Station Wagon - 5 Door / RH / From: AA000001	-	1	Enquire
1	AMN710770	FINISHER	AMN710770 FINISHER 110" Wheelbase, Station Wagon - 5 Door / LH / To: 9A999999	-	1	Enquire
1	LR030561	FINISHER	LR030561 FINISHER 90" Wheelbase, Less Speaker, Station Wagon - 3 Door / RH / From: BA400435	-	1	Enquire
1	LR030561	FINISHER	LR030561 FINISHER 90" Wheelbase, Less Speaker, Station Wagon - 3 Door / RH / From: BA400435	-	1	Enquire
1	LR030562	FINISHER	LR030562 FINISHER 90" Wheelbase, Less Speaker, Station Wagon - 3 Door / LH / From: BA400435	-	1	Enquire
1	LR030562	FINISHER	LR030562 FINISHER 90" Wheelbase, Less Speaker, Station Wagon - 3 Door / LH / From: BA400435	-	1	Enquire
2	RU612373L	RIVET	RU612373L RIVET 3/16" x 0.575"lng / To: BA401871	-	-	Enquire
2	LR031461	RIVET	LR031461 RIVET 4.8 x 4.5 - 11 / From: BA401872	-	-	Enquire
3	FS106206	SCREW	FS106206 SCREW capping to body, Flanged Head, M6 X 20MM	-	2	Enquire
4	WA106042	RESTRICTOR	WA106042 RESTRICTOR M6, Plain	-	2	Enquire
5	WL106002	RESTRICTOR	WL106002 RESTRICTOR M6, sprung	-	2	Enquire
6	FY106046	NUT - HEX.	FY106046 NUT - HEX. Hexagonal Head, M6, nyloc	-	2	Enquire
7	ASR2451	BRACKET	ASR2451 BRACKET LH, corner, tailboard / To: EA448814	-	1	Enquire
7	ASR2451	BRACKET	ASR2451 BRACKET LH, corner, tailboard / To: EA448814	-	1	Enquire
7	ASR2450	BRACKET	ASR2450 BRACKET RH, corner, rear end door / To: EA448814	-	1	Enquire
7	ASR2450	BRACKET	ASR2450 BRACKET RH, corner, rear end door / To: EA448814	-	1	Enquire
7	ASR2449	BRACKET	ASR2449 BRACKET LH, corner, rear end door / To: EA448814	-	1	Enquire
7	ASR2449	BRACKET	ASR2449 BRACKET LH, corner, rear end door / To: EA448814	-	1	Enquire
7	ASR2452	BRACKET	ASR2452 BRACKET RH, corner, tailboard / To: EA448814	-	1	Enquire
7	ASR2452	BRACKET	ASR2452 BRACKET RH, corner, tailboard / To: EA448814	-	1	Enquire
7	LR061990	BRACKET	LR061990 BRACKET RH, corner, tailboard / From: EA448815	-	1	Enquire
7	LR061990	BRACKET	LR061990 BRACKET RH, corner, tailboard / From: EA448815	-	1	Enquire
7	LR062011	BRACKET	LR062011 BRACKET LH, corner, tailboard / From: EA448815	-	1	Enquire
7	LR062011	BRACKET	LR062011 BRACKET LH, corner, tailboard / From: EA448815	-	1	Enquire
7	LR062003	BRACKET	LR062003 BRACKET RH, corner, rear end door / From: EA448815	-	1	Enquire
7	LR062003	BRACKET	LR062003 BRACKET RH, corner, rear end door / From: EA448815	-	1	Enquire
7	LR062009	BRACKET	LR062009 BRACKET LH, corner, rear end door / From: EA448815	-	1	Enquire
7	LR062009	BRACKET	LR062009 BRACKET LH, corner, rear end door / From: EA448815	-	1	Enquire
8	AQL710021	FINISHER	AQL710021 FINISHER RH / To: 7A755900	-	1	Enquire
8	AQL710031	FINISHER	AQL710031 FINISHER LH / To: 7A755900	-	1	Enquire
8	AQL710240	FINISHER	AQL710240 FINISHER RH / From: 7A755901 / To: 8A759516	-	1	Enquire
8	AQL710250	FINISHER	AQL710250 FINISHER LH / From: 7A755901 / To: 8A759516	-	1	Enquire
8	AQL710440	FINISHER	AQL710440 FINISHER RH / From: 8A759517 / To: CA416579	-	1	Enquire
8	AQL710450	FINISHER	AQL710450 FINISHER LH / From: 8A759517 / To: CA416579	-	1	Enquire
8	LR039961	CAPPING - REAR	LR039961 CAPPING - REAR RH, When Used To Replace Earlier Level, Must Be Fitted In Pairs / From: CA416580	-	1	Enquire
8	LR039962	CAPPING - REAR	LR039962 CAPPING - REAR LH, When Used To Replace Earlier Level, Must Be Fitted In Pairs / From: CA416580	-	1	Enquire
9	MWC2938	FINISHER	MWC2938 FINISHER High Capacity Pick Up	-	1	Enquire
10	MUC8748	PIN - FIXING	MUC8748 PIN - FIXING With Lower Tailgate	-	2	Enquire
11	WA112081L	WASHER	WA112081L WASHER With Lower Tailgate / M12, Plain, Standard	-	2	Enquire
12	NY112041L	NUT - HEX.	NY112041L NUT - HEX. With Lower Tailgate / Hexagonal Head, M12, nyloc / To: 7A737621	-	2	Enquire
12	FY112046	NUT - HEX.	FY112046 NUT - HEX. With Lower Tailgate / Hexagonal Head, M12, nyloc / From: 7A737622 / To: 8A756883	-	2	Enquire
12	RYH500510	NUT - HEX.	RYH500510 NUT - HEX. With Lower Tailgate / Hexagonal Head, M12, nyloc / From: 8A756884	-	2	Enquire
13	LR044442	SEAL	LR044442 SEAL Water Ingress Solution / To: DA438753	-	1	Enquire
13	LR054289	SEAL	LR054289 SEAL Water Ingress Solution / From: DA438754	-	1	Enquire
