Rear Body Lower - Mountings (90" Wheelbase) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Rear Body Lower - Mountings (90" Wheelbase) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AFC710010 CROSSMEMBER $63.12 To Order
Photo Part No Description Price (each) Stock
ESQ000030 PAD - ANTI-RATTLE $8.02 To Order
Photo Part No Description Price (each) Stock
RU612373L RIVET $3.15 To Order
Photo Part No Description Price (each) Stock
RU612253 Rivet $0.39 To Order
Photo Part No Description Price (each) Stock
ASU710120 STAY $42.63 To Order
Photo Part No Description Price (each) Stock
LR083229 SCREW $4.31 IN STOCK
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR $2.15 IN STOCK
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.69 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
AYT500010 PIN - FASTENING $1.61 To Order
AYT500020 PIN - FASTENING $0.59 To Order
AYT500030 PIN - FASTENING $1.05 To Order
Photo Part No Description Price (each) Stock
AAU6774 COLLAR $1.32 IN STOCK
Photo Part No Description Price (each) Stock
FS108256 BOLT $3.62 IN STOCK
Photo Part No Description Price (each) Stock
AFU1079 WASHER $1.74 To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.88 IN STOCK
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. $2.00 To Order
Photo Part No Description Price (each) Stock
305232 SHIM $7.33 To Order
Photo Part No Description Price (each) Stock
AYG100240 SCREW $5.11 To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER $0.88 IN STOCK
Photo Part No Description Price (each) Stock
WF600051L WASHER $0.62 To Order
Photo Part No Description Price (each) Stock
NY108041 Nut - Hex. $0.42 To Order
Photo Part No Description Price (each) Stock
305232 SHIM $7.33 To Order
Photo Part No Description Price (each) Stock
MRC8736 PLATE $16.75 To Order
Photo Part No Description Price (each) Stock
RB610082 RIVET $0.68 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.97 IN STOCK
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR $2.15 IN STOCK
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.69 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
MUC6519 PLATE $101.37 To Order
Photo Part No Description Price (each) Stock
MWC2129 GASKET $4.67 To Order
Photo Part No Description Price (each) Stock
RU612253 Rivet $0.39 To Order
Photo Part No Description Price (each) Stock
301328 HOOK - TIE DOWN $17.60 To Order
Photo Part No Description Price (each) Stock
RU612253 Rivet $0.39 To Order
Photo Part No Description Price (each) Stock
MUC3932 COVER $4.03 To Order
View All

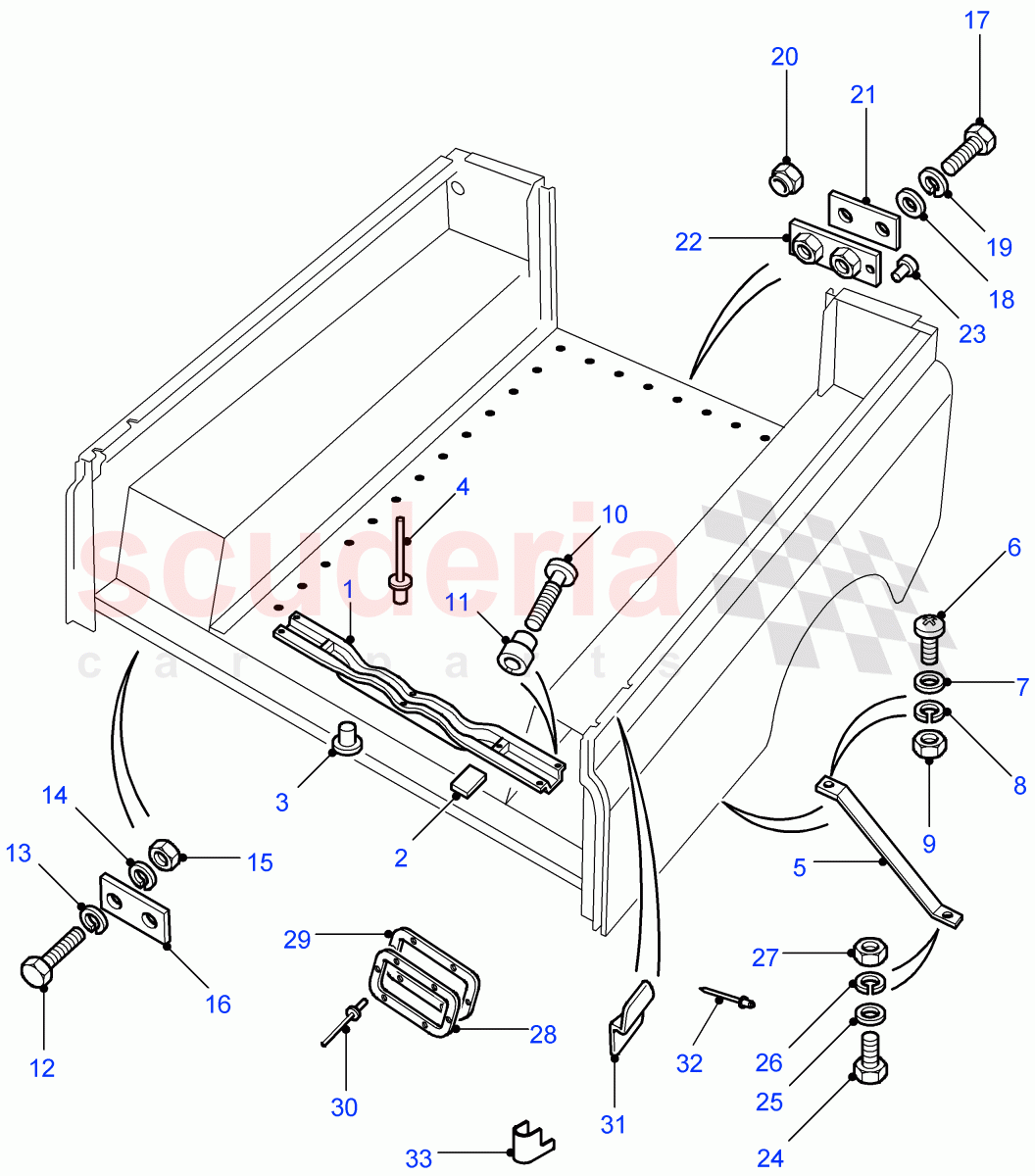

Rear Body Lower - Mountings (90" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AFC710010
CROSSMEMBER 		$63.12 3
2 ESQ000030
PAD - ANTI-RATTLE 		$8.02 6
3 RU612373L
RIVET
3/16" x 0.575"lng 		$3.15 12
4 RU612253
Rivet
3/16" x 0.45"lng, pop 		$0.39 12
5 ASU710120
STAY 		$42.63 2
6 LR083229
SCREW
M6 X 20MM, Pan Head
IN STOCK 		$4.31 2
7 WA106042
RESTRICTOR
6MM, Plain
IN STOCK 		$2.15 4
8 WL106002
RESTRICTOR
M6, sprung
IN STOCK 		$1.69 2
9 FN106046
NUT - HEX.
M6
IN STOCK 		$1.45 2
10 AYT500010
PIN - FASTENING
35MM 		$1.61 -
10 AYT500020
PIN - FASTENING
38MM 		$0.59 -
10 AYT500030
PIN - FASTENING
42MM 		$1.05 -
11 AAU6774
COLLAR
IN STOCK 		$1.32 -
12 FS108256
BOLT
Flanged Head, M8 x 25
IN STOCK 		$3.62 4
13 AFU1079
WASHER
M8 		$1.74 4
14 WA108056
WASHER
8MM
IN STOCK 		$0.88 4
15 FN108046
NUT - HEX.
Flanged Head, M8 		$2.00 4
16 305232
SHIM 		$7.33 4
17 AYG100240
SCREW
M8 x 25, Torx Drive 		$5.11 10
18 WA108056
WASHER
8MM
IN STOCK 		$0.88 10
19 WF600051L
WASHER
retaining 		$0.62 10
20 NY108041
Nut - Hex.
M8, nyloc 		$0.42 4
21 305232
SHIM 		$7.33 -
22 MRC8736
PLATE 		$16.75 3
23 RB610082
RIVET 		$0.68 6
24 FS106206
SCREW
Flanged Head, M6 X 20MM, stay to body
IN STOCK 		$0.97 2
25 WA106042
RESTRICTOR
6MM, Plain
IN STOCK 		$2.15 4
26 WL106002
RESTRICTOR
M6, sprung
IN STOCK 		$1.69 2
27 FN106046
NUT - HEX.
M6
IN STOCK 		$1.45 2
28 MUC6519
PLATE 		$101.37 2
29 MWC2129
GASKET 		$4.67 2
30 RU612253
Rivet
3/16" x 0.45"lng, pop 		$0.39 12
31 301328
HOOK - TIE DOWN 		$17.60 6
32 RU612253
Rivet
3/16" x 0.45"lng, pop 		$0.39 12
33 MUC3932
COVER 		$4.03 6
