Name: Step Assembly Folding-Side Doors (110" Wheelbase, 90" Wheelbase) ((V) FROMBA000001)
Rating: 5.0 (1 reviews)

View All

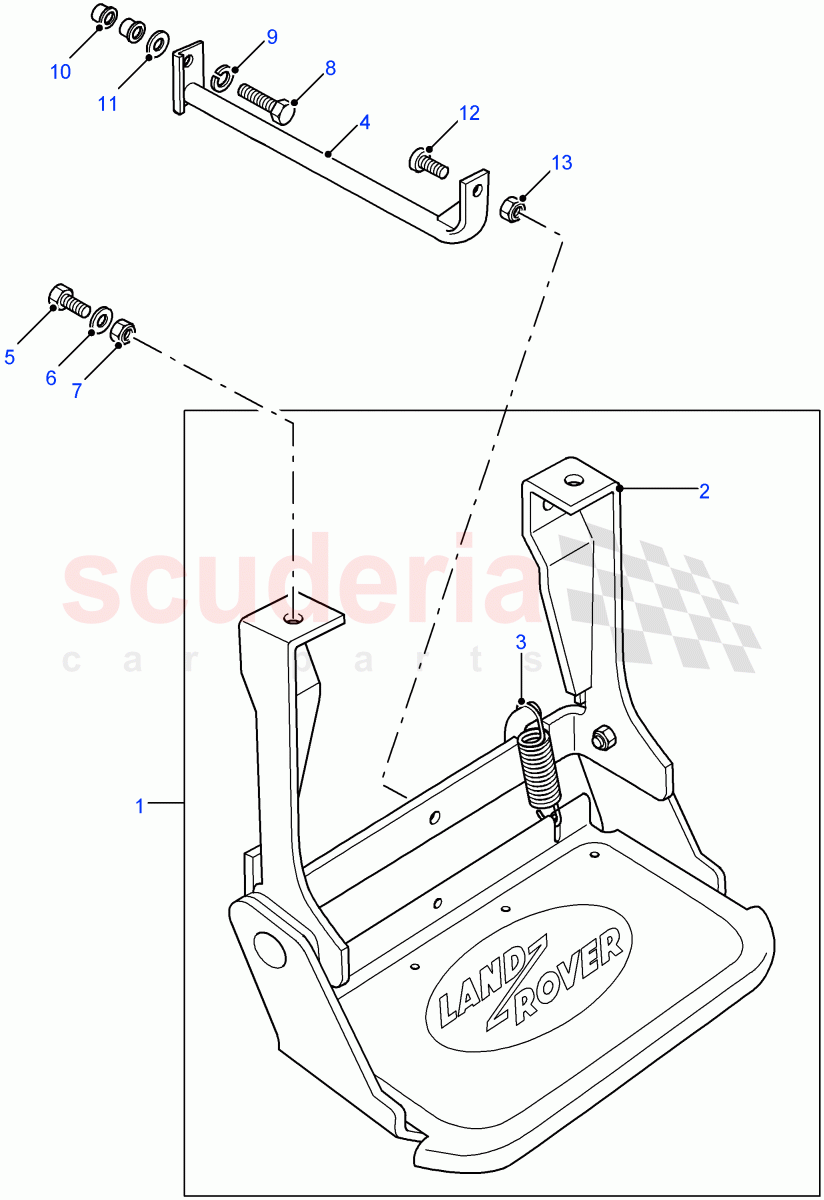

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR020614	STEP - BODY SIDE	$233.14	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020611	STEP	$308.91	To Order

Photo	Part No	Description	Price (each)	Stock
	MTC1233	SPRING	$14.53	To Order

Photo	Part No	Description	Price (each)	Stock
	MXC1624	SUPPORT - BODYSIDE STEP	$63.16	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	$3.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WA108056	WASHER	$0.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FY108046	NUT M8 FLANGED HEX HEAD	$1.13	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FS108256	BOLT	$3.62	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	WA108056	WASHER	$0.88	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	ANR6563	NUT - SPECIAL	$4.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	AYH101200	NUT - HEX.	$2.74	To Order

Photo	Part No	Description	Price (each)	Stock
	SE108201L	SCREW	$1.63	To Order

Photo	Part No	Description	Price (each)	Stock
	FY108046	NUT M8 FLANGED HEX HEAD	$1.13	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR020614	STEP - BODY SIDE	LR020614 STEP - BODY SIDE	$233.14	1
2	LR020611	STEP	LR020611 STEP Kit - Contains Plastic Trims For Step Assy	$308.91	-
3	MTC1233	SPRING	MTC1233 SPRING	$14.53	1
4	MXC1624	SUPPORT - BODYSIDE STEP	MXC1624 SUPPORT - BODYSIDE STEP	$63.16	1
5	FS108256	BOLT IN STOCK	FS108256 BOLT Flanged Head, M8 x 25, step to sill IN STOCK	$3.62	2
6	WA108056	WASHER IN STOCK	WA108056 WASHER 8MM, step to sill IN STOCK	$0.88	2
7	FY108046	NUT M8 FLANGED HEX HEAD IN STOCK	FY108046 NUT M8 FLANGED HEX HEAD M8, nyloc, step to sill IN STOCK	$1.13	2
8	FS108256	BOLT IN STOCK	FS108256 BOLT brace to chassis, Flanged Head, M8 x 25 IN STOCK	$3.62	1
9	WA108056	WASHER IN STOCK	WA108056 WASHER brace to chassis, M8, sprung IN STOCK	$0.88	1
10	ANR6563	NUT - SPECIAL IN STOCK	ANR6563 NUT - SPECIAL brace to chassis, M8 IN STOCK	$4.15	-
11	AYH101200	NUT - HEX.	AYH101200 NUT - HEX. brace to chassis, Hexagonal, M8	$2.74	1
12	SE108201L	SCREW	SE108201L SCREW brace to step	$1.63	1
13	FY108046	NUT M8 FLANGED HEX HEAD IN STOCK	FY108046 NUT M8 FLANGED HEX HEAD brace to step, M8, nyloc IN STOCK	$1.13	1

Step Assembly Folding-Side Doors (110" Wheelbase, 90" Wheelbase) ((V) Fromba000001)

Land Rover Defender (2007-2016)
