Side Windows (Hard Top, 110" Wheelbase, With Sliding Rear Side Window, Station Wagon - 5 Door,...

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Side Windows (Hard Top, 110" Wheelbase, With Sliding Rear Side Window, Station Wagon - 5 Door,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
CPB500720 GLASS - SLIDING ROOF $880.79 To Order
CPB500730 GLASS - SLIDING ROOF $880.87 To Order
CPB500900 GLASS - SLIDING ROOF $587.50 To Order
...and 15 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
CPB000200 SLIDING ROOF $293.91 To Order
CPB000220 SLIDING ROOF $141.73 To Order
Photo Part No Description Price (each) Stock
CPB000160 SLIDING ROOF $215.20 To Order
CPB000180 SLIDING ROOF $82.65 To Order
Photo Part No Description Price (each) Stock
CNM000010 RAIL $124.15 To Order
CNM500010 RAIL $60.09 To Order
Photo Part No Description Price (each) Stock
CPE000020 SEAL $30.54 To Order
Photo Part No Description Price (each) Stock
CZE000010 STRIP - GLAZING AND SEALING $18.38 To Order
Photo Part No Description Price (each) Stock
CZL000030 PAD - SLIDING GLASS $14.06 To Order
Photo Part No Description Price (each) Stock
CZL000020 PAD - SLIDING GLASS $27.05 To Order
Photo Part No Description Price (each) Stock
CNK000010 BUMP STOP $18.22 To Order
Photo Part No Description Price (each) Stock
CPT000020 SEAL $17.65 To Order
CPT000040 SEAL $12.97 To Order
Photo Part No Description Price (each) Stock
CNJ000010 BODY $32.15 To Order
CNJ000020 RUN - GLASS $29.69 To Order
Photo Part No Description Price (each) Stock
CNL000010 STRIP - FILLER - QTR WINDOW W/STRIP $13.70 To Order
Photo Part No Description Price (each) Stock
CPL000020 CATCH $81.92 To Order
CPL000030 CATCH $81.92 To Order
Photo Part No Description Price (each) Stock
CPK000010 BLOCK $77.22 To Order
Photo Part No Description Price (each) Stock
CNR000010 BUTTON $5.42 To Order
Photo Part No Description Price (each) Stock
CYP000040 SCREW $2.09 To Order
Photo Part No Description Price (each) Stock
CYP000050 SCREW $1.38 To Order
Photo Part No Description Price (each) Stock
CYP000030 SCREW - SELF-TAPPING $15.15 To Order
Photo Part No Description Price (each) Stock
CES500020 SEALER- GLASS ADHESIVE $129.96 To Order
Photo Part No Description Price (each) Stock
CYF500010 SPACER $16.80 To Order
Photo Part No Description Price (each) Stock
CYF000040 WASHER $4.71 To Order
Photo Part No Description Price (each) Stock
CNT000010 SPACER $10.82 To Order
Photo Part No Description Price (each) Stock
CHB500010 WEATHERSTRIP - SLIDING GLASS $11.66 To Order
CHB500050 WEATHERSTRIP - SLIDING GLASS $35.13 To Order
Photo Part No Description Price (each) Stock
CPT000010 GASKET $4.17 IN STOCK
Photo Part No Description Price (each) Stock
MWC4715 GLASS - QUARTER WINDOW $53.09 To Order
MWC4716 GLASS - QUARTER WINDOW $73.80 To Order
LR057152 GLASS - TAILGATE WINDOW $172.59 To Order
Photo Part No Description Price (each) Stock
CGE500450 STRIP - GLAZING AND SEALING $37.66 To Order
CGE500660 STRIP - GLAZING AND SEALING $55.38 To Order
Photo Part No Description Price (each) Stock
CPF500020 SPACER $6.62 To Order
View All

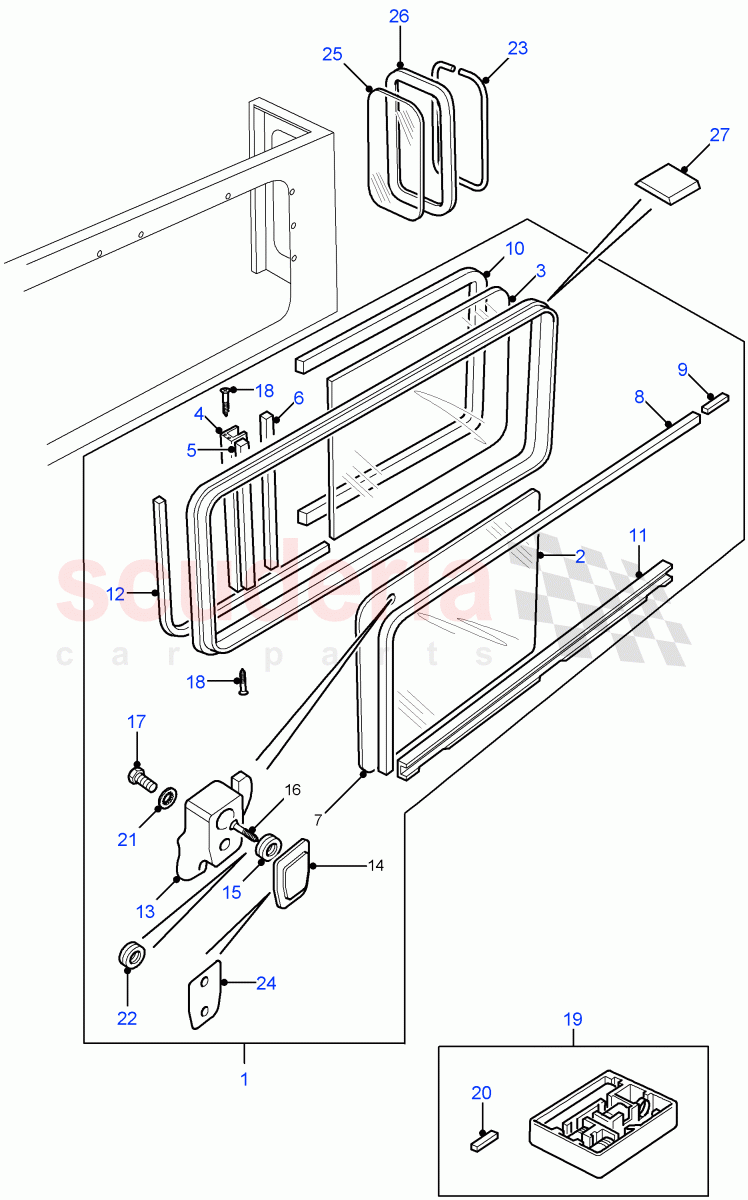

Side Windows (Hard Top, 110" Wheelbase, With Sliding Rear Side Window, Station Wagon - 5 Door, Station Wagon - 3 Door, 90" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 CPB500720
GLASS - SLIDING ROOF
With Clear Glass - Complete / RH / To: 7A739398 		$880.79 1
1 CPB500730
GLASS - SLIDING ROOF
With Clear Glass - Complete / LH / To: 7A739398 		$880.87 1
1 CPB500900
GLASS - SLIDING ROOF
With Tinted Glass All Round / RH / From: 7A739399 / To: 9A999999 		$587.50 1
1 CPB500750
GLASS - SLIDING ROOF
With Tinted Glass All Round / LH / To: 7A739398 		$1,592.28 1
1 CPB500910
GLASS - SLIDING ROOF
With Tinted Glass All Round / LH / From: 7A739399 / To: 9A999999 		$587.50 1
1 CPB500740
GLASS - SLIDING ROOF
With Tinted Glass All Round / RH / To: 7A739398 		$729.46 1
1 CPB500890
GLASS - SLIDING ROOF
With Clear Glass - Complete / LH / From: 7A739399 / To: 9A999999 		$545.47 1
1 CPB500880
GLASS - SLIDING ROOF
With Clear Glass - Complete / RH / From: 7A739399 / To: 9A999999 		$561.85 1
1 LR018573
GLASS - SLIDING ROOF
With Clear Glass - Complete / LH / From: AA000001 / To: BA999999 		$924.58 1
1 LR018575
GLASS - QUARTER WINDOW
With Clear Glass - Complete / RH / From: AA000001 / To: BA999999 		$1,001.55 1
1 LR018574
GLASS - QUARTER WINDOW
With Tinted Glass All Round / RH / From: AA000001 / To: FA468245 		$851.26 1
1 LR018576
GLASS - SLIDING ROOF
With Tinted Glass All Round / LH / From: AA000001 / To: FA468245 		$826.23 1
1 LR057159
GLASS - QUARTER WINDOW
With Privacy Glass / RH / From: FA000001 / To: FA468245 		$879.38 1
1 LR057160
GLASS - QUARTER WINDOW
With Privacy Glass / LH / From: FA000001 / To: FA468245 		$841.10 1
1 LR074766
GLASS - QUARTER WINDOW
With Privacy Glass / RH / From: FA468246 		$868.70 1
1 LR074768
GLASS - QUARTER WINDOW
With Privacy Glass / LH / From: FA468246 		$853.77 1
1 LR074767
GLASS - QUARTER WINDOW
With Tinted Glass All Round / RH / From: FA468246 		$816.18 1
1 LR074769
GLASS - QUARTER WINDOW
With Tinted Glass All Round / LH / From: FA468246 		$826.23 1
2 CPB000200
SLIDING ROOF
With Clear Glass - Complete / Front, Sliding / To: BA999999 		$293.91 1
2 CPB000220
SLIDING ROOF
With Tinted Glass All Round / Front, Sliding 		$141.73 1
3 CPB000160
SLIDING ROOF
With Clear Glass - Complete / Fixed, Rear / To: BA999999 		$215.20 1
3 CPB000180
SLIDING ROOF
With Tinted Glass All Round / Fixed, Rear 		$82.65 1
4 CNM000010
RAIL
LH 		$124.15 2
4 CNM500010
RAIL
RH 		$60.09 2
5 CPE000020
SEAL 		$30.54 2
6 CZE000010
STRIP - GLAZING AND SEALING 		$18.38 2
7 CZL000030
PAD - SLIDING GLASS 		$14.06 2
8 CZL000020
PAD - SLIDING GLASS 		$27.05 2
9 CNK000010
BUMP STOP 		$18.22 2
10 CPT000020
SEAL
RH 		$17.65 1
10 CPT000040
SEAL
LH 		$12.97 1
11 CNJ000010
BODY
RH 		$32.15 1
11 CNJ000020
RUN - GLASS
LH 		$29.69 1
12 CNL000010
STRIP - FILLER - QTR WINDOW W/STRIP 		$13.70 2
13 CPL000020
CATCH
RH 		$81.92 1
13 CPL000030
CATCH
LH 		$81.92 1
14 CPK000010
BLOCK 		$77.22 2
15 CNR000010
BUTTON 		$5.42 2
16 CYP000040
SCREW 		$2.09 2
17 CYP000050
SCREW 		$1.38 2
18 CYP000030
SCREW - SELF-TAPPING
counter sunk 		$15.15 4
19 CES500020
SEALER- GLASS ADHESIVE 		$129.96 1
20 CYF500010
SPACER 		$16.80 8
21 CYF000040
WASHER
4 BA 		$4.71 2
22 CNT000010
SPACER 		$10.82 4
23 CHB500010
WEATHERSTRIP - SLIDING GLASS
To: 8A761299 		$11.66 2
23 CHB500050
WEATHERSTRIP - SLIDING GLASS
From: 8A761300 		$35.13 2
24 CPT000010
GASKET
IN STOCK 		$4.17 2
25 MWC4715
GLASS - QUARTER WINDOW
With Clear Glass - Complete / 4 mm glass, back / To: BA999999 		$53.09 2
25 MWC4716
GLASS - QUARTER WINDOW
With Tinted Glass All Round / 4 mm glass, back 		$73.80 2
25 LR057152
GLASS - TAILGATE WINDOW
With Privacy Glass / 4 mm glass, Back / From: FA000001 		$172.59 2
26 CGE500450
STRIP - GLAZING AND SEALING
4 mm glass / To: 8A761299 		$37.66 2
26 CGE500660
STRIP - GLAZING AND SEALING
4 mm glass / From: 8A761300 		$55.38 2
27 CPF500020
SPACER 		$6.62 10
