Name: Rear Body Lower (Station Wagon - 5 Door, 110" Wheelbase, With 7 Seat Configuration, With 5 Seat Configuration, Less Rear Seats) ((V) FROM7A000001)
Rating: 5.0 (1 reviews)

Rear Body Lower (Station Wagon - 5 Door, 110" Wheelbase, With 7 Seat Configuration, With 5 Seat Configuration, Less Rear Seats) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Rear Body Lower (Station Wagon - 5 Door, 110" Wheelbase, With 7 Seat Configuration, With 5 Seat...

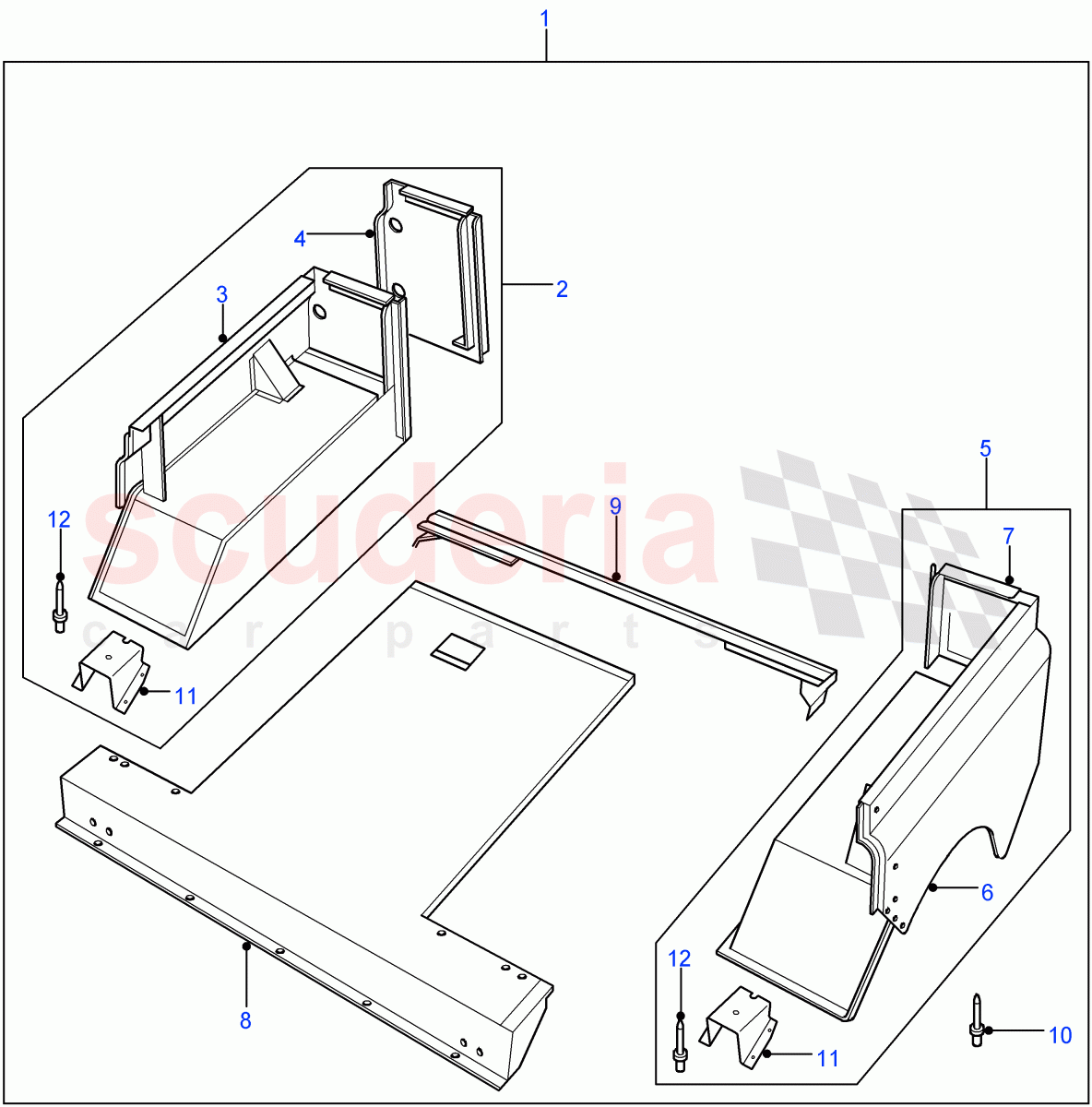

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AQA711090	PANEL - BODY SIDE - REAR	$6,061.44	To Order
	AQA711060	BODY PANEL - FRONT END	$6,111.26	To Order

Photo	Part No	Description	Price (each)	Stock
	ALA711000	PANEL - BODY SIDE	$1,752.79	To Order
	ALA711060	WHEELARCH	$1,647.47	To Order

Photo	Part No	Description	Price (each)	Stock
	ALA710680	PANEL - BODY SIDE	$585.98	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1854	PANEL	$290.35	To Order

Photo	Part No	Description	Price (each)	Stock
	ALA711010	PANEL - BODY SIDE	$1,269.10	To Order
	ALA711070	WHEELARCH	$1,647.47	To Order

Photo	Part No	Description	Price (each)	Stock
	MRC5071	PANEL - BODY SIDE	$585.98	To Order

Photo	Part No	Description	Price (each)	Stock
	STC1855	PANEL	$349.99	To Order

Photo	Part No	Description	Price (each)	Stock
	AFB710130	PANEL - FLOOR	$259.05	To Order
	AFB710160	PANEL - FLOOR	$815.10	To Order
	LR032941	PANEL - FLOOR	$1,326.64	To Order

Photo	Part No	Description	Price (each)	Stock
	AQR710020	FINISHER	$327.97	To Order

Photo	Part No	Description	Price (each)	Stock
	RU612373L	RIVET	$3.15	To Order

Photo	Part No	Description	Price (each)	Stock
	AFU710230	SUPPORT - REAR SEAT CUSHION	$51.01	To Order

Photo	Part No	Description	Price (each)	Stock
	RRC4583	RIVET	$1.09	To Order
	LR021819	RIVET - BLIND	$0.43	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	AQA711090	PANEL - BODY SIDE - REAR	AQA711090 PANEL - BODY SIDE - REAR 110" Wheelbase, Station Wagon - 5 Door, With 5 Seat Configuration	$6,061.44	1
1	AQA711060	BODY PANEL - FRONT END	AQA711060 BODY PANEL - FRONT END 110" Wheelbase, Less Rear Seats, Station Wagon - 5 Door	$6,111.26	1
2	ALA711000	PANEL - BODY SIDE	ALA711000 PANEL - BODY SIDE 110" Wheelbase, Less Rear Seats, Station Wagon - 5 Door / RH	$1,752.79	1
2	ALA711060	WHEELARCH	ALA711060 WHEELARCH 110" Wheelbase, Station Wagon - 5 Door, With 5 Seat Configuration / RH	$1,647.47	1
3	ALA710680	PANEL - BODY SIDE	ALA710680 PANEL - BODY SIDE RH	$585.98	1
4	STC1854	PANEL	STC1854 PANEL RH	$290.35	1
5	ALA711010	PANEL - BODY SIDE	ALA711010 PANEL - BODY SIDE 110" Wheelbase, Less Rear Seats, Station Wagon - 5 Door / LH	$1,269.10	1
5	ALA711070	WHEELARCH	ALA711070 WHEELARCH 110" Wheelbase, Station Wagon - 5 Door, With 5 Seat Configuration / LH	$1,647.47	1
6	MRC5071	PANEL - BODY SIDE	MRC5071 PANEL - BODY SIDE LH	$585.98	1
7	STC1855	PANEL	STC1855 PANEL LH	$349.99	1
8	AFB710130	PANEL - FLOOR	AFB710130 PANEL - FLOOR 110" Wheelbase, Station Wagon - 5 Door, With 7 Seat Configuration / To: BA555554	$259.05	1
8	AFB710160	PANEL - FLOOR	AFB710160 PANEL - FLOOR 110" Wheelbase, Station Wagon - 5 Door, With 5 Seat Configuration	$815.10	1
8	LR032941	PANEL - FLOOR	LR032941 PANEL - FLOOR 110" Wheelbase, Less Rear Seats, Station Wagon - 5 Door / From: BA555555	$1,326.64	1
9	AQR710020	FINISHER	AQR710020 FINISHER Rear	$327.97	1
10	RU612373L	RIVET	RU612373L RIVET 3/16" x 0.575"lng	$3.15	24
11	AFU710230	SUPPORT - REAR SEAT CUSHION	AFU710230 SUPPORT - REAR SEAT CUSHION	$51.01	2
12	RRC4583	RIVET	RRC4583 RIVET To: AA793956	$1.09	8
12	LR021819	RIVET - BLIND	LR021819 RIVET - BLIND From: AA793957	$0.43	8
