Rear Body Lower - Toe Panel (110" And 130" Wheelbase) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Rear Body Lower - Toe Panel (110" And 130" Wheelbase) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

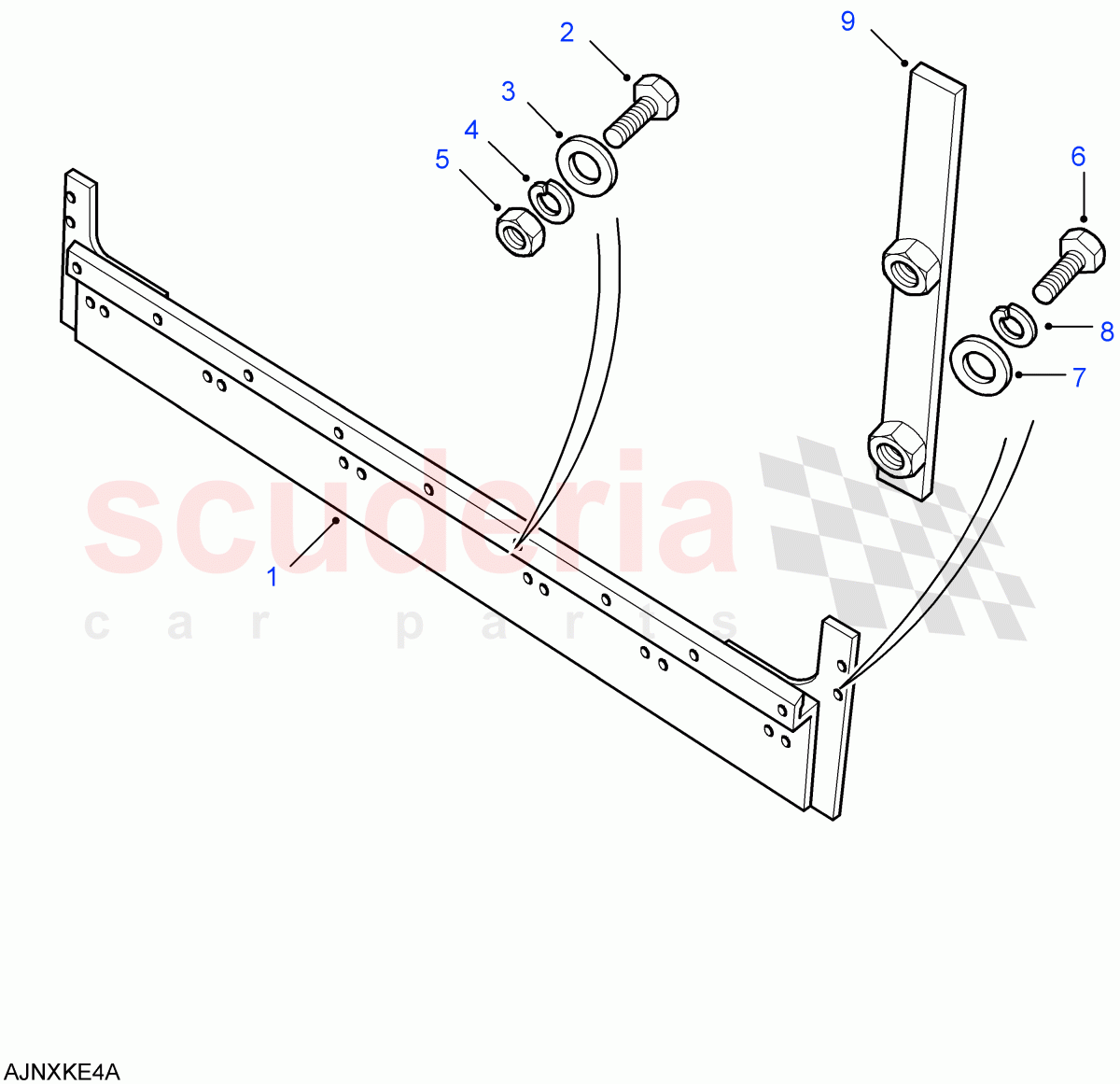

Rear Body Lower - Toe Panel (110" And 130" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 395413
BRACKET 		$376.15 1
2 FS106206
SCREW
Flanged Head, M6 X 20MM
IN STOCK 		$0.97 2
2 FS106167L
SCREW
Flanged Head, M6 X 16MM
IN STOCK 		$2.26 7
3 RTC609
WASHER
Standard 		$2.73 9
4 WM600051L
WASHER - SPRING
5/16" 		$1.03 9
5 FN106046
NUT - HEX.
M6
IN STOCK 		$1.45 9
6 FS106167L
SCREW
Flanged Head, M6 X 16MM
IN STOCK 		$2.26 4
7 WC106041L
WASHER
M6, oversize 		$1.50 4
8 WM106001L
WASHER - SPRING 		$0.80 4
9 MRC9388
PLATE 		$3.96 2
