Rear Side Door Frame (Crew Cab Pick Up, 110" Wheelbase, Chassis Crew Cab, 130" Wheelbase, Station Wagon Utility - 5 Door, Station Wagon - 5 Door, Crew Cab HCPU) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Rear Side Door Frame (Crew Cab Pick Up, 110" Wheelbase, Chassis Crew Cab, 130" Wheelbase, Station...

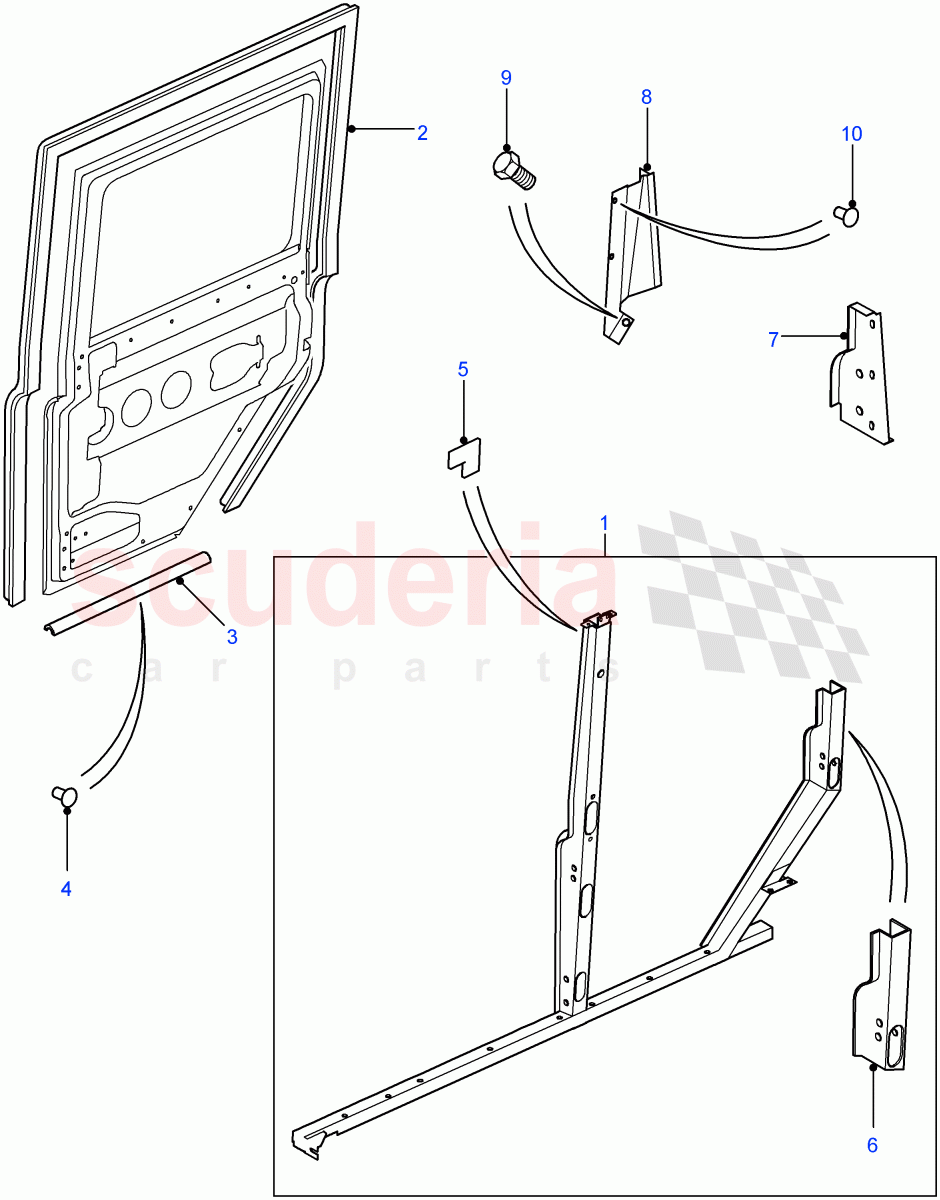

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AMC710200	FRAME	$2,098.15	To Order
	AMC710210	FRAME	$1,933.77	To Order
	AMC710220	FRAME	$2,384.58	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CFE103001	WEATHERSTRIP - DOOR OPENING	$146.52	To Order
	LR024957	WEATHERSTRIP - DOOR OPENING	$141.31	To Order
	LR024956	WEATHERSTRIP-DOOR OPENING REAR	$136.54	To Order

...and 9 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	CGE500350	WEATHERSTRIP - DOOR - LOWER	$5.58	To Order
	LR029307	WEATHERSTRIP - DOOR - LOWER	$45.32	To Order
	LR029308	WEATHERSTRIP - DOOR - LOWER	$45.32	To Order

Photo	Part No	Description	Price (each)	Stock
	RU612503	RIVET	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	ENX500120	PAD - FOAM	$24.92	To Order
	LR028971	PAD - RUBBER	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	ALR710560	MEMBER - SIDE	$57.92	To Order
	ALR710570	MEMBER - SIDE	$57.92	To Order
	LR010454	MEMBER - SIDE	$58.50	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AMJ710020	GUSSET	$16.29	To Order
	AMJ710030	GUSSET	$16.29	To Order

Photo	Part No	Description	Price (each)	Stock
	ALR710300	REINFORCEMENT - SEAT BELT	$37.28	To Order
	ALR710310	REINFORCEMENT - SEAT BELT	$37.28	To Order
	ALR710600	REINFORCEMENT - SEAT BELT	$75.80	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	HYG500410	SCREW	$9.36	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP500930	SCREW	$0.50	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	AMC710200	FRAME	AMC710200 FRAME 110" Wheelbase / RH	$2,098.15	1
1	AMC710210	FRAME	AMC710210 FRAME 110" Wheelbase / LH	$1,933.77	1
1	AMC710220	FRAME	AMC710220 FRAME 130" Wheelbase / RH	$2,384.58	1
1	AMC710230	FRAME	AMC710230 FRAME 130" Wheelbase / LH	$2,274.68	1
2	CFE103001	WEATHERSTRIP - DOOR OPENING	CFE103001 WEATHERSTRIP - DOOR OPENING RH, Side / To: AA798123	$146.52	1
2	LR024957	WEATHERSTRIP - DOOR OPENING	LR024957 WEATHERSTRIP - DOOR OPENING LH, Side / From: AA798124 / To: CA222221	$141.31	1
2	LR024956	WEATHERSTRIP-DOOR OPENING REAR	LR024956 WEATHERSTRIP-DOOR OPENING REAR RH, Side / From: AA798124 / To: CA222221	$136.54	1
2	CFE103011	WEATHERSTRIP - DOOR OPENING	CFE103011 WEATHERSTRIP - DOOR OPENING LH, Side / To: AA798123	$146.52	1
2	LR037348	WEATHERSTRIP - DOOR OPENING	LR037348 WEATHERSTRIP - DOOR OPENING RH, Side / From: CA222222 / To: CA444443	$145.40	1
2	LR037349	WEATHERSTRIP-DOOR OPENING REAR	LR037349 WEATHERSTRIP-DOOR OPENING REAR LH, Side / From: CA222222 / To: CA444443	$133.77	1
2	LR038749	WEATHERSTRIP - DOOR OPENING	LR038749 WEATHERSTRIP - DOOR OPENING RH, Side / From: CA444444 / To: CA555554	$141.28	1
2	LR038750	WEATHERSTRIP - DOOR OPENING	LR038750 WEATHERSTRIP - DOOR OPENING LH, Side / From: CA444444 / To: CA555554	$141.28	1
2	LR044309	WEATHERSTRIP - DOOR OPENING	LR044309 WEATHERSTRIP - DOOR OPENING RH, Side / From: CA555555 / To: FA470710	$141.28	1
2	LR044310	WEATHERSTRIP - DOOR OPENING	LR044310 WEATHERSTRIP - DOOR OPENING LH, Side / From: CA555555 / To: FA470710	$141.28	1
2	LR077683	WEATHERSTRIP - DOOR OPENING	LR077683 WEATHERSTRIP - DOOR OPENING LH, Side / From: FA470711	$141.28	1
2	LR077684	WEATHERSTRIP - DOOR OPENING	LR077684 WEATHERSTRIP - DOOR OPENING RH, Side / From: FA470711	$141.28	1
3	CGE500350	WEATHERSTRIP - DOOR - LOWER	CGE500350 WEATHERSTRIP - DOOR - LOWER To: BA403440	$5.58	2
3	LR029307	WEATHERSTRIP - DOOR - LOWER	LR029307 WEATHERSTRIP - DOOR - LOWER RH / From: BA403441	$45.32	1
3	LR029308	WEATHERSTRIP - DOOR - LOWER	LR029308 WEATHERSTRIP - DOOR - LOWER LH / From: BA403441	$45.32	1
4	RU612503	RIVET	RU612503 RIVET 3/16" x 0.7lng	$0.63	8
5	ENX500120	PAD - FOAM	ENX500120 PAD - FOAM Foam	$24.92	-
5	LR028971	PAD - RUBBER	LR028971 PAD - RUBBER Butyl Seal Pad Preventing Water Leaks, Rubber	$0.54	-
6	ALR710560	MEMBER - SIDE	ALR710560 MEMBER - SIDE 110" Wheelbase / RH / To: 9A768000	$57.92	1
6	ALR710570	MEMBER - SIDE	ALR710570 MEMBER - SIDE 110" Wheelbase / LH / To: 9A768000	$57.92	1
6	LR010454	MEMBER - SIDE	LR010454 MEMBER - SIDE 110" Wheelbase / RH / From: 9A768001	$58.50	1
6	LR010455	MEMBER - SIDE	LR010455 MEMBER - SIDE 110" Wheelbase / LH / From: 9A768001	$58.50	1
7	AMJ710020	GUSSET	AMJ710020 GUSSET 110" Wheelbase, Station Wagon - 5 Door / RH	$16.29	1
7	AMJ710030	GUSSET	AMJ710030 GUSSET 110" Wheelbase, Station Wagon - 5 Door / LH	$16.29	1
8	ALR710300	REINFORCEMENT - SEAT BELT	ALR710300 REINFORCEMENT - SEAT BELT 110" Wheelbase, Station Wagon - 5 Door / RH / To: 7A753011	$37.28	1
8	ALR710310	REINFORCEMENT - SEAT BELT	ALR710310 REINFORCEMENT - SEAT BELT 110" Wheelbase, Station Wagon - 5 Door / LH / To: 7A753011	$37.28	1
8	ALR710600	REINFORCEMENT - SEAT BELT	ALR710600 REINFORCEMENT - SEAT BELT 110" Wheelbase, Station Wagon - 5 Door / RH / From: 7A753012	$75.80	1
8	ALR710610	REINFORCEMENT - SEAT BELT	ALR710610 REINFORCEMENT - SEAT BELT 110" Wheelbase, Station Wagon - 5 Door / LH / From: 7A753012	$75.80	1
9	HYG500410	SCREW	HYG500410 SCREW 110" Wheelbase, Station Wagon - 5 Door	$9.36	2
10	RYP500930	SCREW	RYP500930 SCREW 110" Wheelbase, Station Wagon - 5 Door / M5 x 16	$0.50	4
