Roof Assembly (Hard Top, 110" Wheelbase, Station Wagon Utility - 5 Door, Station Wagon - 5 Door)...

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Roof Assembly (Hard Top, 110" Wheelbase, Station Wagon Utility - 5 Door, Station Wagon - 5 Door)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AKA710800NCL PANEL - ROOF Enquire To Order
AKB710220NCL PANEL - ROOF Enquire To Order
AKA710790NCL PANEL - ROOF Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MWC4714 GLASS - BODY SIDE PANEL - FIXED Enquire To Order
LR057156 GLASS - ROOF Enquire To Order
Photo Part No Description Price (each) Stock
MWC4771 WEATHERSTRIP Enquire To Order
Photo Part No Description Price (each) Stock
302178 STRIP - FILLER - QTR WINDOW W/STRIP Enquire To Order
DBF500010 SEAL - ROOF SIDE MOULDING Enquire To Order
DBF500040 SEAL - ROOF SIDE MOULDING Enquire To Order
Photo Part No Description Price (each) Stock
MTC4994 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
MTC6568 SEAL - WINDSCREEN Enquire To Order
MUC6400 SEAL Enquire To Order
LR053811 Seal Enquire To Order
...and 2 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FS106255L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
AHR710280 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
AB614082 SCREW Enquire To Order
RYP500600 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
DYP101310 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
DDL500011 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
RU608313L RIVET Enquire To Order
Photo Part No Description Price (each) Stock
AWR6715 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
ALR710580 REINFORCEMENT - ROOF RAIL Enquire To Order
ALR710590 REINFORCEMENT - ROOF RAIL Enquire To Order
View All

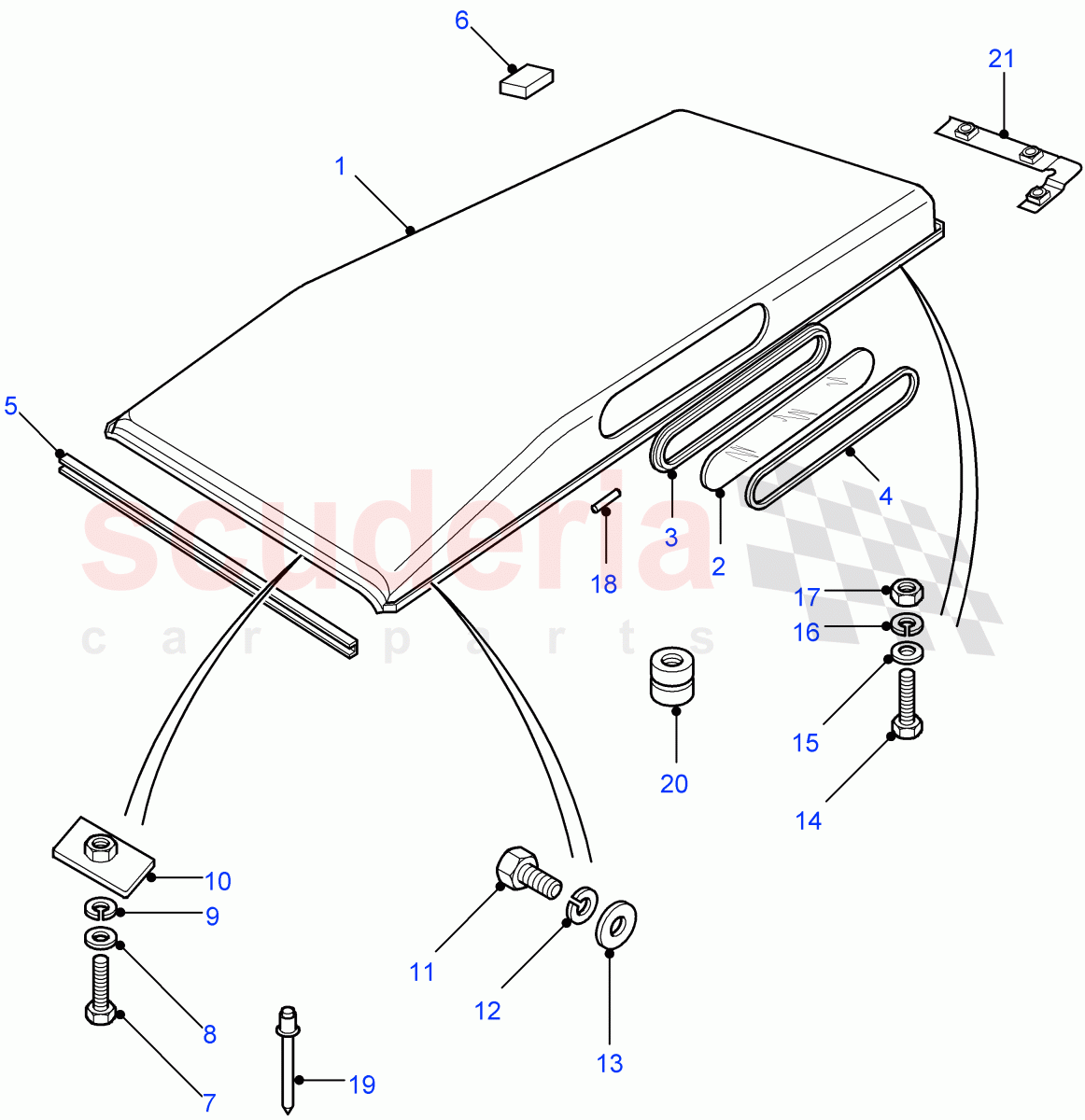

Roof Assembly (Hard Top, 110" Wheelbase, Station Wagon Utility - 5 Door, Station Wagon - 5 Door) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AKA710800NCL
PANEL - ROOF
110" Wheelbase, Hard Top / Alaska White / To: BA666665 		- 1 Enquire
1 AKB710220NCL
PANEL - ROOF
110" Wheelbase, Station Wagon - 5 Door, With Tilt & Slide Sunroof / Alaska White / To: BA666665 		- 1 Enquire
1 AKA710790NCL
PANEL - ROOF
110" Wheelbase, Less Sun Roof, Station Wagon - 5 Door / Alaska White / To: BA666665 		- 1 Enquire
1 AKA710790LYQ
PANEL - ROOF
110" Wheelbase, Less Sun Roof, Station Wagon - 5 Door / Please Refer To Land Rover Parts Communication Bulletin LR2016 - 027, Primed / From: BA666666 		- 1 Enquire
1 AKB710220LYQ
PANEL - ROOF
110" Wheelbase, Station Wagon - 5 Door, With Tilt & Slide Sunroof / Please Refer To Land Rover Parts Communication Bulletin LR2016 - 027, Primed / From: BA666666 		- 1 Enquire
1 AKA710800LYQ
PANEL - ROOF
110" Wheelbase, Hard Top / Please Refer To Land Rover Parts Communication Bulletin LR2016 - 027, Primed / From: BA666666 		- 1 Enquire
2 MWC4714
GLASS - BODY SIDE PANEL - FIXED
110" Wheelbase, Station Wagon - 5 Door / 4mm glass 		- 2 Enquire
2 LR057156
GLASS - ROOF
110" Wheelbase, Station Wagon - 5 Door, With Privacy Glass / 4 mm glass / From: FA000001 		- 2 Enquire
3 MWC4771
WEATHERSTRIP
4mm glass 		- 2 Enquire
4 302178
STRIP - FILLER - QTR WINDOW W/STRIP
To: 7A750705 		- 2 Enquire
4 DBF500010
SEAL - ROOF SIDE MOULDING
From: 7A750706 / To: 8A999999 		- 2 Enquire
4 DBF500040
SEAL - ROOF SIDE MOULDING
From: 9A000001 		- 2 Enquire
5 MTC4994
SEAL
Inner, roof to windscreen 		- 1 Enquire
6 MTC6568
SEAL - WINDSCREEN
Outer, roof to windscreen / To: DA438753 		- 1 Enquire
6 MUC6400
SEAL
corner, packer-seal to windscreen / To: FA456499 		- 2 Enquire
6 LR053811
Seal
Outer, roof to windscreen / From: DA438754 / To: DA446177 		- 1 Enquire
6 LR055343
SEAL
corner, packer-seal to windscreen / From: FA456500 		- 2 Enquire
6 LR055344
SEAL - WINDSCREEN
Outer, roof to windscreen / From: DA446178 		- 1 Enquire
7 FS106255L
SCREW
Flanged Head, M6 X 25MM 		- 6 Enquire
8 WA106042
RESTRICTOR
6MM, Plain 		- 6 Enquire
9 WL106002
RESTRICTOR
M6, sprung 		- 6 Enquire
10 AHR710280
PLATE 		- 6 Enquire
11 AB614082
SCREW
Self Tapping / To: 7A737621 		- 2 Enquire
11 RYP500600
SCREW
Self Tapping / From: 7A737622 		- 2 Enquire
12 WL106002
RESTRICTOR
M6, sprung 		- 2 Enquire
13 WA106042
RESTRICTOR
6MM, Plain 		- 2 Enquire
14 DYP101310
SCREW
Flanged Head, M6 x 30MM 		- 24 Enquire
15 WA106042
RESTRICTOR
6MM, Plain 		- 24 Enquire
16 WL106002
RESTRICTOR
M6, sprung 		- 24 Enquire
17 FN106046
NUT - HEX.
M6 		- 24 Enquire
18 DDL500011
SEAL
110" Wheelbase, Station Wagon - 5 Door / BC post to roof cantrail 		- 1 Enquire
19 RU608313L
RIVET
110" Wheelbase / 1/8" x 0.482"lng, Aluminium 		- 2 Enquire
20 AWR6715
NUT - SPECIAL
M6 		- - Enquire
21 ALR710580
REINFORCEMENT - ROOF RAIL
RH 		- 1 Enquire
21 ALR710590
REINFORCEMENT - ROOF RAIL
LH 		- 1 Enquire
