Land Rover Defender (2007-2016) - Sill Panels (Chassis Cab, 110" Wheelbase, 90" Wheelbase, High Capacity Pick Up, Hard Top, Pick Up,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RTC6205 MEMBER - SIDE Enquire To Order
RTC6206 MEMBER - SIDE Enquire To Order
Photo Part No Description Price (each) Stock
MTC8292 MEMBER - SIDE Enquire To Order
MTC8293 MEMBER - SIDE Enquire To Order
337812 MEMBER - SIDE Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FS106167L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
MRC5525 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FS106167L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RTC609 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WM106001L WASHER - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FS106167L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RTC609 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WM106001L WASHER - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FS106167L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RTC609 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WM106001L WASHER - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
MRC9438 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
AFU1069 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
AJL710020 BODY Enquire To Order
AJL710030 BODY Enquire To Order
LR016691 BODY Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
AYR500130 STUD PLATE Enquire To Order
Photo Part No Description Price (each) Stock
RTC610 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WM600051L WASHER - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
ASU710130 STAY Enquire To Order
Photo Part No Description Price (each) Stock
FS106167L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
ASU710140 STAY Enquire To Order
Photo Part No Description Price (each) Stock
FS106167L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
347436 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
FS108207L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
RTC610 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
BYF500030 WASHER Enquire To Order
VYF500100 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
NK106082 NUT - FLANGED Enquire To Order
Photo Part No Description Price (each) Stock
ALR6368 SEAL Enquire To Order
View All

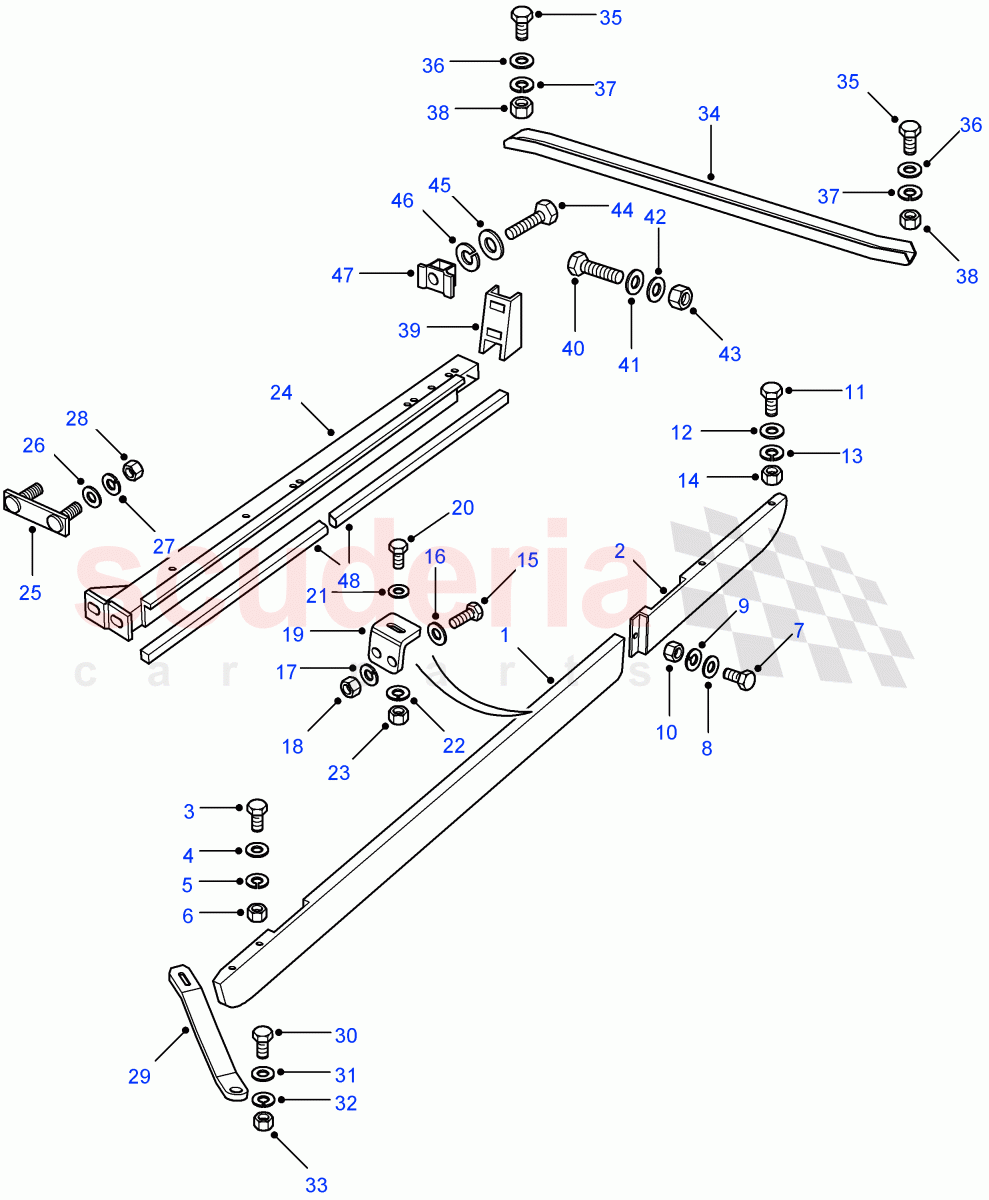

Sill Panels (Chassis Cab, 110" Wheelbase, 90" Wheelbase, High Capacity Pick Up, Hard Top, Pick Up, Soft Top) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 RTC6205
MEMBER - SIDE
RH, Front 		- 1 Enquire
1 RTC6206
MEMBER - SIDE
LH, Front 		- 1 Enquire
2 MTC8292
MEMBER - SIDE
90" Wheelbase / RH, Rear 		- 1 Enquire
2 MTC8293
MEMBER - SIDE
90" Wheelbase / LH, Rear 		- 1 Enquire
2 337812
MEMBER - SIDE
110" Wheelbase, High Capacity Pick Up / RH, Rear 		- 1 Enquire
2 337813
MEMBER - SIDE
110" Wheelbase, High Capacity Pick Up / LH, Rear 		- 1 Enquire
2 MRC5049
MEMBER - SIDE
110" Wheelbase, Hard Top / RH, Rear 		- 1 Enquire
2 MRC5050
MEMBER - SIDE
110" Wheelbase, Hard Top / LH, Rear 		- 1 Enquire
3 FS106167L
SCREW
Flanged Head, M6 X 16MM, sill panel to outer wing 		- 4 Enquire
4 MRC5525
WASHER
sill panel to outer wing, Standard 		- 8 Enquire
5 WL106002
RESTRICTOR
M6, sill panel to outer wing, sprung 		- 4 Enquire
6 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc, sill panel to outer wing 		- 4 Enquire
7 FS106167L
SCREW
Flanged Head, front to rear sill panel, M6 X 16MM 		- 2 Enquire
8 RTC609
WASHER
front to rear sill panel, Standard 		- 4 Enquire
9 WM106001L
WASHER - SPRING
front to rear sill panel, M6, Square 		- 2 Enquire
10 FY106046
NUT - HEX.
front to rear sill panel, Hexagonal Head, M6, nyloc 		- 2 Enquire
11 FS106167L
SCREW
Flanged Head, M6 X 16MM, to sill panel rear 		- 14 Enquire
12 RTC609
WASHER
Standard, to sill panel rear 		- 12 Enquire
13 WM106001L
WASHER - SPRING
M6, Square, to sill panel rear 		- 6 Enquire
14 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc, to sill panel rear 		- 14 Enquire
15 FS106167L
SCREW
Flanged Head, M6 X 16MM, sill panel to channel bracket 		- 4 Enquire
16 RTC609
WASHER
sill panel to channel bracket, Standard 		- 8 Enquire
17 WM106001L
WASHER - SPRING
M6, sill panel to channel bracket, Square 		- 4 Enquire
18 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc, sill panel to channel bracket 		- 4 Enquire
19 MRC9438
BRACKET 		- 4 Enquire
20 FS106206
SCREW
bracket to sill channel, Flanged Head, M6 X 20MM 		- 4 Enquire
21 AFU1069
WASHER
bracket to sill channel 		- 8 Enquire
22 WL106002
RESTRICTOR
bracket to sill channel, M6, sprung 		- 4 Enquire
23 FY106046
NUT - HEX.
bracket to sill channel, Hexagonal Head, M6, nyloc 		- 4 Enquire
24 AJL710020
BODY
RH / To: 9A888887 		- 1 Enquire
24 AJL710030
BODY
LH / To: 9A888887 		- 1 Enquire
24 LR016691
BODY
RH / From: 9A888888 / To: AA792700 		- 1 Enquire
24 LR016763
BODY
LH / From: 9A888888 / To: AA792700 		- 1 Enquire
24 LR023157
BODY
RH / From: AA792701 		- 1 Enquire
24 LR023164
BODY
LH / From: AA792701 		- 1 Enquire
25 AYR500130
STUD PLATE 		- 2 Enquire
26 RTC610
WASHER 		- 4 Enquire
27 WM600051L
WASHER - SPRING
5/16" 		- 4 Enquire
28 FN108046
NUT - HEX.
flange, M8 		- 4 Enquire
29 ASU710130
STAY
Front 		- 2 Enquire
30 FS106167L
SCREW
Flanged Head, M6 X 16MM, to front stay 		- 4 Enquire
31 WA106042
RESTRICTOR
6MM, Plain 		- 4 Enquire
32 WL106002
RESTRICTOR
M6, sprung 		- 4 Enquire
33 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc 		- 4 Enquire
34 ASU710140
STAY
110" Wheelbase, Hard Top / Centre 		- 2 Enquire
35 FS106167L
SCREW
110" Wheelbase, Hard Top / Flanged Head, M6 X 16MM, to centre stay 		- 4 Enquire
36 WA106042
RESTRICTOR
110" Wheelbase, Hard Top / 6MM, Plain, to centre stay 		- 4 Enquire
37 WL106002
RESTRICTOR
110" Wheelbase, Hard Top / M6, sprung, to centre stay 		- 4 Enquire
38 FY106046
NUT - HEX.
110" Wheelbase, Hard Top / Hexagonal Head, M6, nyloc, to centre stay 		- 4 Enquire
39 347436
BRACKET 		- 2 Enquire
40 FS108207L
SCREW
Flanged Head, M8 X 20MM, to bracket mounting 		- 4 Enquire
41 RTC610
WASHER 		- 8 Enquire
42 WA108056
WASHER
M8, sprung 		- 4 Enquire
43 FN108046
NUT - HEX.
flange, M8 		- 4 Enquire
44 FS106206
SCREW
Flanged Head, M6 X 20MM, to bracket mounting 		- 4 Enquire
45 WL106002
RESTRICTOR
M6, sprung 		- 4 Enquire
46 BYF500030
WASHER
Plain / To: 7A751598 		- 4 Enquire
46 VYF500100
WASHER
Plain / From: 7A751599 		- 4 Enquire
47 NK106082
NUT - FLANGED 		- 4 Enquire
48 ALR6368
SEAL
90" Wheelbase, Hard Top / sill/floor 		- 2 Enquire
