Name: Front Door Latch Striker
Rating: 5.0 (1 reviews)

View All

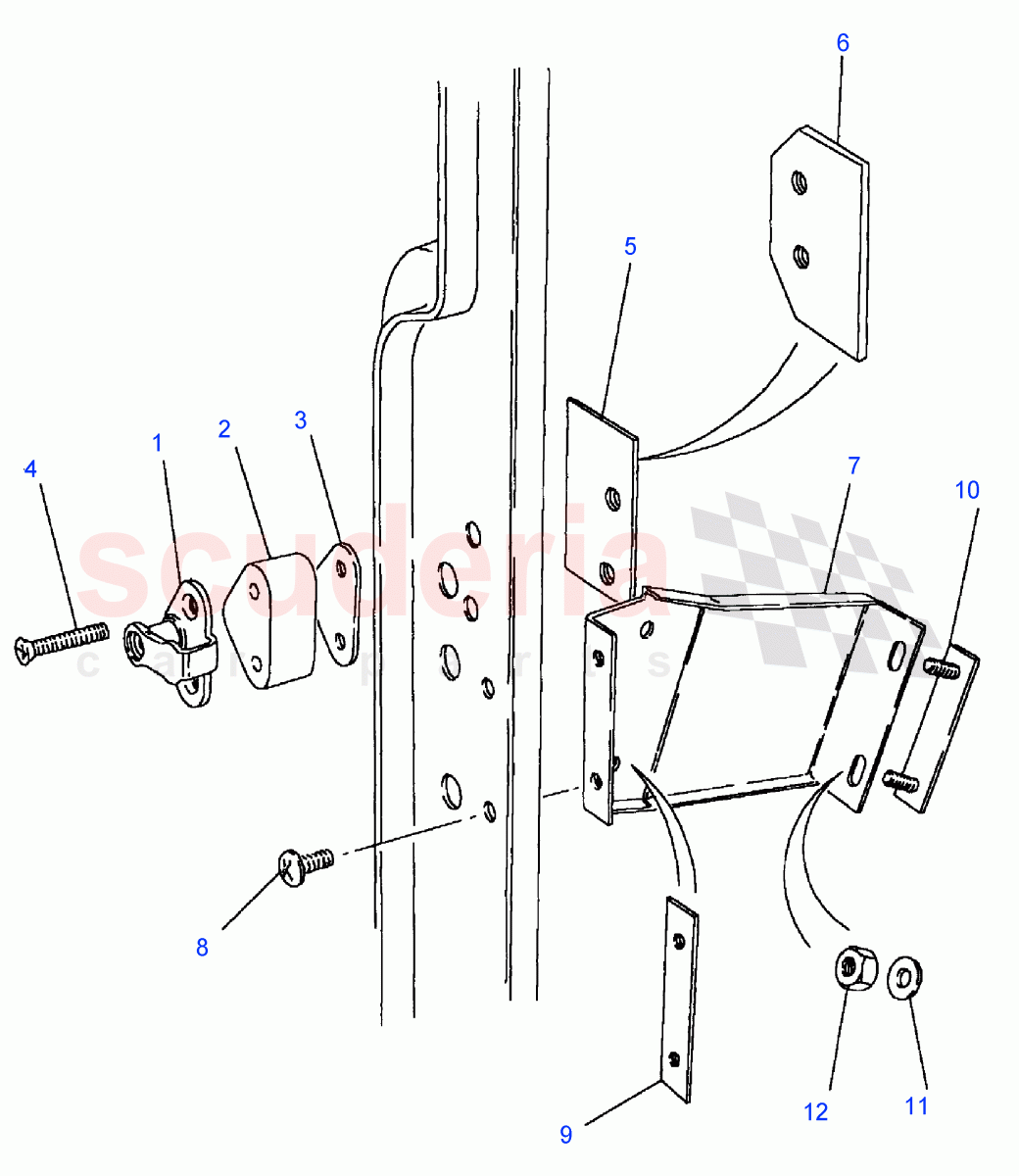

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	FQB500130	STRIKER - DOOR LOCKING MECHANISM	$46.85	To Order

Photo	Part No	Description	Price (each)	Stock
	MWC3148	SPACER	$7.21	To Order

Photo	Part No	Description	Price (each)	Stock
	BYP500200	SCREW	$2.04	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	SE106161L	SCREW	$1.49	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	MUC1049	STUD	$16.33	To Order

Photo	Part No	Description	Price (each)	Stock
	WA106042	RESTRICTOR	$2.15	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FN106046	NUT - HEX.	$1.45	IN STOCK

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	FQB500130	STRIKER - DOOR LOCKING MECHANISM	FQB500130 STRIKER - DOOR LOCKING MECHANISM	$46.85	2
2	MUC7809	SPACER	MUC7809 SPACER To: DA435243	$4.62	2
2	LR050856	SPACER	LR050856 SPACER From: DA435244	$13.63	2
3	MWC3148	SPACER	MWC3148 SPACER	$7.21	-
4	BYP500200	SCREW	BYP500200 SCREW counter sunk, dacromat, Torx	$2.04	4
5	AHR710380	REINFORCEMENT	AHR710380 REINFORCEMENT RH / To: 9A888887	$7.79	1
5	AHR710390	REINFORCEMENT	AHR710390 REINFORCEMENT LH / To: 9A888887	$7.79	1
5	LR016665	REINFORCEMENT	LR016665 REINFORCEMENT RH / From: 9A888888	$19.69	1
5	LR016666	REINFORCEMENT	LR016666 REINFORCEMENT LH / From: 9A888888	$17.90	1
6	MWC1622	NUT - HEX.	MWC1622 NUT - HEX. To: 9A888887	$10.71	2
6	LR016667	NUT - HEX.	LR016667 NUT - HEX. From: 9A888888	$12.91	2
7	MWC1736	BRACKET - SUPPORT	MWC1736 BRACKET - SUPPORT RH	$41.88	1
7	MWC1737	BRACKET - SUPPORT	MWC1737 BRACKET - SUPPORT LH	$38.82	1
8	SE106161L	SCREW IN STOCK	SE106161L SCREW M6 X 16MM, to bracket support IN STOCK	$1.49	4
9	MRC9431	PLATE	MRC9431 PLATE To: 7A735841	$16.22	2
9	AHR710260	PLATE	AHR710260 PLATE From: 7A735842	$8.32	2
10	MUC1049	STUD	MUC1049 STUD	$16.33	2
11	WA106042	RESTRICTOR IN STOCK	WA106042 RESTRICTOR 6MM, Plain IN STOCK	$2.15	4
12	FN106046	NUT - HEX. IN STOCK	FN106046 NUT - HEX. M6 IN STOCK	$1.45	4
