Roof Assembly (Hard Top, 90" Wheelbase, Station Wagon - 3 Door) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Roof Assembly (Hard Top, 90" Wheelbase, Station Wagon - 3 Door) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AKB710200NCL PANEL - ROOF Enquire To Order
AKA710760NCL PANEL - ROOF Enquire To Order
AKA710750NCL PANEL - ROOF Enquire To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MTC4994 SEAL Enquire To Order
MTC6568 SEAL - WINDSCREEN Enquire To Order
LR053811 Seal Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
MWC4714 GLASS - BODY SIDE PANEL - FIXED Enquire To Order
LR057156 GLASS - ROOF Enquire To Order
Photo Part No Description Price (each) Stock
MWC4771 WEATHERSTRIP Enquire To Order
Photo Part No Description Price (each) Stock
302178 STRIP - FILLER - QTR WINDOW W/STRIP Enquire To Order
DBF500010 SEAL - ROOF SIDE MOULDING Enquire To Order
DBF500040 SEAL - ROOF SIDE MOULDING Enquire To Order
Photo Part No Description Price (each) Stock
MUC6400 SEAL Enquire To Order
LR055343 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
FS106167L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
AHR710280 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
AB614082 SCREW Enquire To Order
RYP500600 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
DYP101310 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
AFU1259 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
302532 NUT - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
RU608313L RIVET Enquire To Order
Photo Part No Description Price (each) Stock
AWR6715 NUT - SPECIAL Enquire To Order
Photo Part No Description Price (each) Stock
ALR710580 REINFORCEMENT - ROOF RAIL Enquire To Order
ALR710590 REINFORCEMENT - ROOF RAIL Enquire To Order
Photo Part No Description Price (each) Stock
LR000804 PLUG Enquire To Order
View All

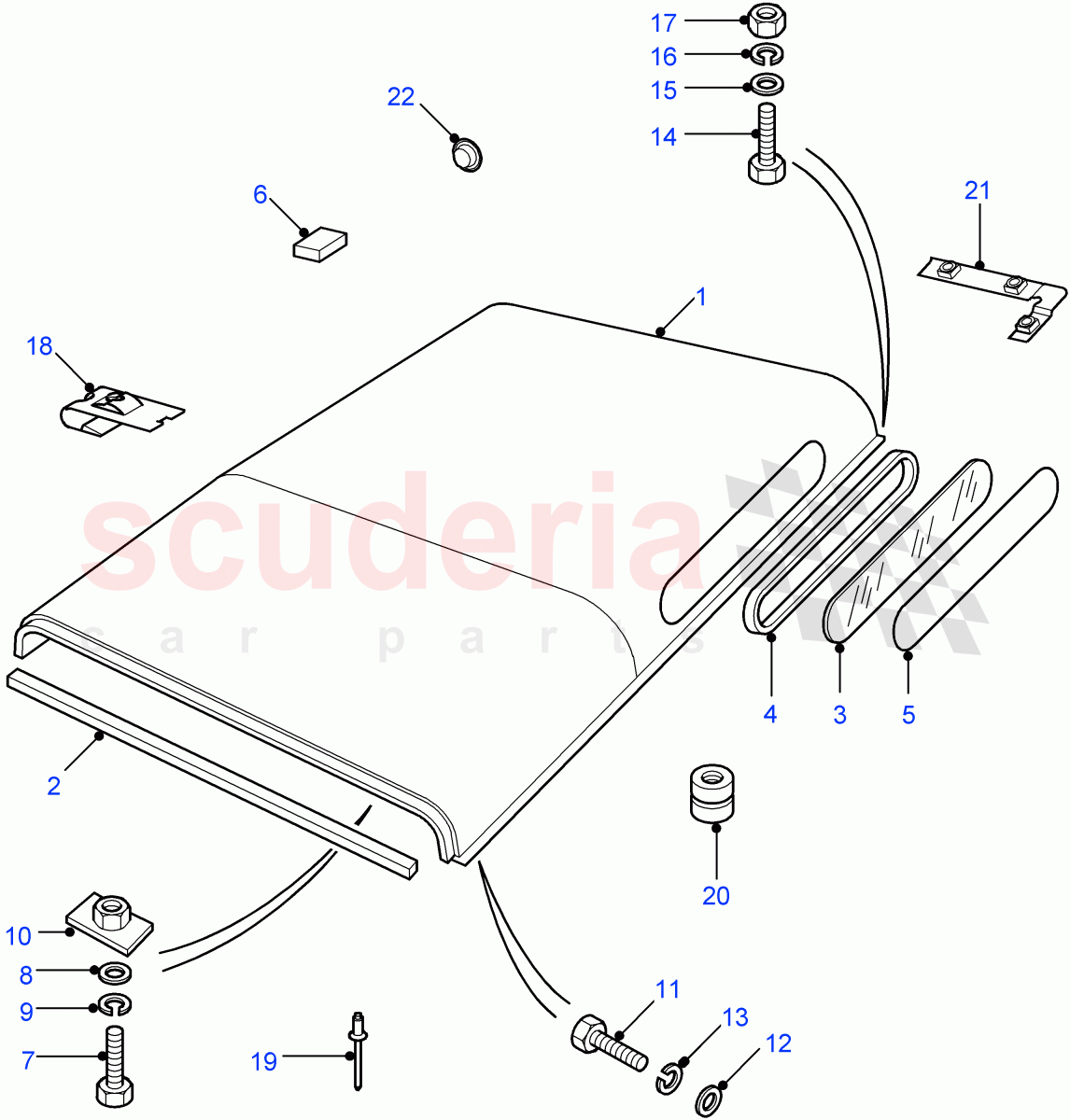

Roof Assembly (Hard Top, 90" Wheelbase, Station Wagon - 3 Door) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AKB710200NCL
PANEL - ROOF
90" Wheelbase, Alpine Hard Top Plain, With Tilt & Slide Sunroof / Alaska White, with alpine lights / To: BA666665 		- 1 Enquire
1 AKA710760NCL
PANEL - ROOF
90" Wheelbase, Hard Top / Alaska White, without Alpine lights / To: BA666665 		- 1 Enquire
1 AKA710750NCL
PANEL - ROOF
90" Wheelbase, Alpine Hard Top Plain / Alaska White, with alpine lights / To: BA666665 		- 1 Enquire
1 AKA710760LYQ
PANEL - ROOF
90" Wheelbase, Hard Top / Please Refer To Land Rover Parts Communication Bulletin LR2016 - 027, Primed, without Alpine lights / From: BA666666 		- 1 Enquire
1 AKA710750LYQ
PANEL - ROOF
90" Wheelbase, Alpine Hard Top Plain / Please Refer To Land Rover Parts Communication Bulletin LR2016 - 027, Primed, with alpine lights / From: BA666666 		- 1 Enquire
1 AKB710200LYQ
PANEL - ROOF
90" Wheelbase, Alpine Hard Top Plain, With Tilt & Slide Sunroof / Please Refer To Land Rover Parts Communication Bulletin LR2016 - 027, Primed, with alpine lights / From: BA666666 		- 1 Enquire
2 MTC4994
SEAL
Inner, roof to windscreen 		- 1 Enquire
2 MTC6568
SEAL - WINDSCREEN
Outer, roof to windscreen / To: DA438753 		- 1 Enquire
2 LR053811
Seal
Outer, roof to windscreen / From: DA438754 / To: DA446177 		- 1 Enquire
2 LR055344
SEAL - WINDSCREEN
Outer, roof to windscreen / From: DA446178 		- 1 Enquire
3 MWC4714
GLASS - BODY SIDE PANEL - FIXED
4mm glass 		- 2 Enquire
3 LR057156
GLASS - ROOF
With Privacy Glass / 4mm glass / From: FA000001 		- 2 Enquire
4 MWC4771
WEATHERSTRIP
4mm glass 		- 2 Enquire
5 302178
STRIP - FILLER - QTR WINDOW W/STRIP
To: 7A750705 		- 2 Enquire
5 DBF500010
SEAL - ROOF SIDE MOULDING
From: 7A750706 / To: 8A999999 		- 2 Enquire
5 DBF500040
SEAL - ROOF SIDE MOULDING
From: 9A000001 		- 2 Enquire
6 MUC6400
SEAL
corner, packer-seal to windscreen / To: FA456499 		- 2 Enquire
6 LR055343
SEAL
corner, packer-seal to windscreen / From: FA456500 		- 2 Enquire
7 FS106167L
SCREW
fixing roof, Flanged Head, M6 X 16MM 		- 6 Enquire
8 WA106042
RESTRICTOR
6MM, Plain 		- 6 Enquire
9 WL106002
RESTRICTOR
M6, sprung 		- 6 Enquire
10 AHR710280
PLATE 		- 6 Enquire
11 AB614082
SCREW
fixing roof, Self Tapping / To: 7A737621 		- 2 Enquire
11 RYP500600
SCREW
fixing roof, Self Tapping / From: 7A737622 		- 2 Enquire
12 WA106042
RESTRICTOR
6MM, Plain 		- 2 Enquire
13 WL106002
RESTRICTOR
M6, sprung 		- 2 Enquire
14 DYP101310
SCREW
fixing roof, Flanged Head, M6 x 30MM 		- 22 Enquire
15 AFU1259
WASHER
Plain 		- 18 Enquire
16 WL106002
RESTRICTOR
M6, sprung 		- 14 Enquire
17 FN106046
NUT - HEX.
M6 		- 14 Enquire
18 302532
NUT - LOCKING 		- 2 Enquire
19 RU608313L
RIVET
1/8" x 0.482"lng, Aluminium 		- 2 Enquire
20 AWR6715
NUT - SPECIAL
M6 		- - Enquire
21 ALR710580
REINFORCEMENT - ROOF RAIL
RH 		- 1 Enquire
21 ALR710590
REINFORCEMENT - ROOF RAIL
LH 		- 1 Enquire
22 LR000804
PLUG
10 X 0.75 X 1.0 / From: FA460345 		- 1 Enquire
