Land Rover Defender (2007-2016) - Wheelarch And Eyebrow ((V) FROM7A000001)

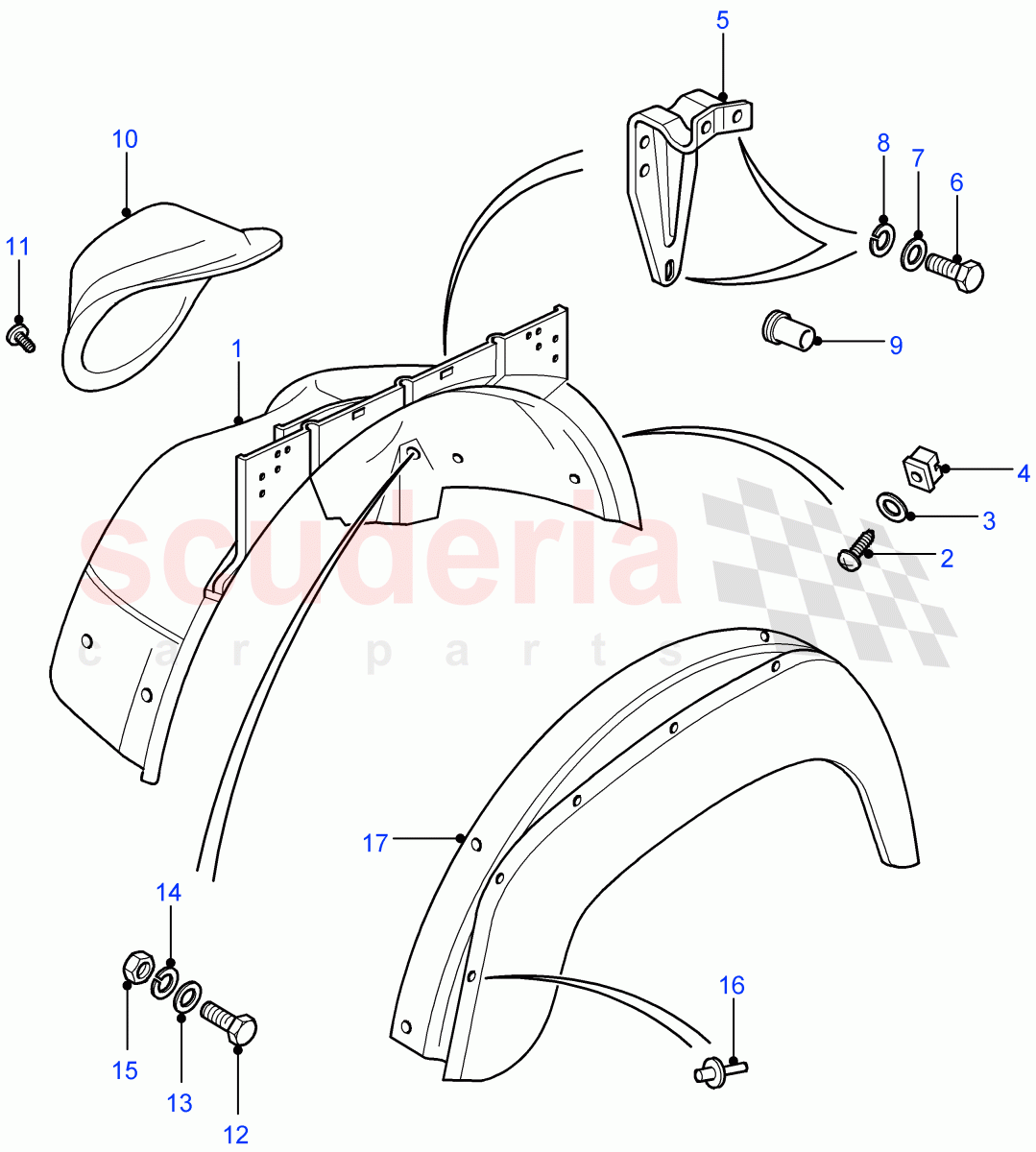

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	AWJ710430	WHEELARCH	Enquire	To Order
	AWJ710460	WHEELARCH	Enquire	To Order
	AWJ710420	WHEELARCH	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	AB614061L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AFU1069	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	CZA4705L	NUT - LOCKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ASU710110	BRACKET - FENDER MOUNTING	Enquire	To Order
	ASU710100	BRACKET - FENDER MOUNTING	Enquire	To Order
	LR018582	BRACKET - FENDER MOUNTING	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA106047L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WL106007L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AFU1280	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RNE500030	COVER - DUST	Enquire	To Order
	LR031509	COVER - DUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	AR608021L	SCREW - SELF-TAPPING	Enquire	To Order
	AR608031L	SCREW - SELF-TAPPING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	SH108501L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BRC9037	WASHER - RETAINING	Enquire	To Order
	LR010196	WASHER - RETAINING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WC108051L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR4477	NUT - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MWC9918PMA	RIVET - PLASTIC	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	MRC9378	WHEELARCH	Enquire	To Order
	MRC9377	WHEELARCH	Enquire	To Order
	MTC6874P	WHEELARCH	Enquire	To Order

...and 1 more part variants. See table on right for more details.

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	AWJ710430	WHEELARCH	AWJ710430 WHEELARCH RH, Less Sound Insulation Pad, Plastic / To: DA440372	-	1	Enquire
1	AWJ710460	WHEELARCH	AWJ710460 WHEELARCH LH, Less Sound Insulation Pad, Plastic / To: DA440372	-	1	Enquire
1	AWJ710420	WHEELARCH	AWJ710420 WHEELARCH RH, Plastic, With Sound Insulation Pad	-	1	Enquire
1	AWJ710470	WHEELARCH	AWJ710470 WHEELARCH LH, Plastic, With Sound Insulation Pad	-	1	Enquire
1	LR053803	WHEELARCH	LR053803 WHEELARCH RH, Less Sound Insulation Pad, Plastic / From: DA440373	-	1	Enquire
1	LR053804	WHEELARCH	LR053804 WHEELARCH LH, Less Sound Insulation Pad, Plastic / From: DA440373	-	1	Enquire
2	AB614061L	SCREW	AB614061L SCREW No 14 x 3/4, nut lokut to wheelarch, Self Tapping	-	8	Enquire
3	AFU1069	WASHER	AFU1069 WASHER	-	8	Enquire
4	CZA4705L	NUT - LOCKING	CZA4705L NUT - LOCKING	-	8	Enquire
5	ASU710110	BRACKET - FENDER MOUNTING	ASU710110 BRACKET - FENDER MOUNTING RHD / To: AA784889	-	1	Enquire
5	ASU710100	BRACKET - FENDER MOUNTING	ASU710100 BRACKET - FENDER MOUNTING LHD / To: BA999999	-	1	Enquire
5	LR018582	BRACKET - FENDER MOUNTING	LR018582 BRACKET - FENDER MOUNTING RHD / From: AA784890 / To: BA400861	-	1	Enquire
5	LR031497	BRACKET - FENDER MOUNTING	LR031497 BRACKET - FENDER MOUNTING RHD / From: BA400862	-	1	Enquire
5	LR030342	BRACKET - FENDER MOUNTING	LR030342 BRACKET - FENDER MOUNTING LHD / From: CA000001	-	1	Enquire
6	FS106206	SCREW	FS106206 SCREW Flanged Head, M6 X 20MM	-	4	Enquire
7	WA106047L	WASHER	WA106047L WASHER M6, Standard	-	4	Enquire
8	WL106007L	WASHER	WL106007L WASHER M6, rectangular	-	4	Enquire
9	AFU1280	NUT - HEX.	AFU1280 NUT - HEX. M8	-	2	Enquire
10	RNE500030	COVER - DUST	RNE500030 COVER - DUST To: AA999999	-	2	Enquire
10	LR031509	COVER - DUST	LR031509 COVER - DUST From: BA000001	-	2	Enquire
11	AR608021L	SCREW - SELF-TAPPING	AR608021L SCREW - SELF-TAPPING 8 x 1/4, to wheelarch	-	11	Enquire
11	AR608031L	SCREW - SELF-TAPPING	AR608031L SCREW - SELF-TAPPING Long, No 8 x 3/8, to wheelarch	-	1	Enquire
12	SH108501L	SCREW	SH108501L SCREW M8 X 50, to wheelarch	-	4	Enquire
13	BRC9037	WASHER - RETAINING	BRC9037 WASHER - RETAINING M8 / To: 9A767000	-	6	Enquire
13	LR010196	WASHER - RETAINING	LR010196 WASHER - RETAINING M8 / From: 9A767001	-	6	Enquire
14	WC108051L	WASHER	WC108051L WASHER M8	-	12	Enquire
15	ANR4477	NUT - FLANGED	ANR4477 NUT - FLANGED M8	-	3	Enquire
16	MWC9918PMA	RIVET - PLASTIC	MWC9918PMA RIVET - PLASTIC	-	16	Enquire
17	MRC9378	WHEELARCH	MRC9378 WHEELARCH RH, Black, Plastic, Plastic Version No Longer Available; Primed Alternatives Still Available, Unpainted	-	1	Enquire
17	MRC9377	WHEELARCH	MRC9377 WHEELARCH LH, Black, Plastic, Plastic Version No Longer Available; Primed Alternatives Still Available, Unpainted	-	1	Enquire
17	MTC6874P	WHEELARCH	MTC6874P WHEELARCH RH, Primer	-	1	Enquire
17	MTC6875P	WHEELARCH	MTC6875P WHEELARCH LH, Primer	-	1	Enquire
