Sill Panels (Crew Cab Pick Up, 110" Wheelbase, Chassis Crew Cab, 130" Wheelbase, Chassis Cab,...

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Sill Panels (Crew Cab Pick Up, 110" Wheelbase, Chassis Crew Cab, 130" Wheelbase, Chassis Cab,...

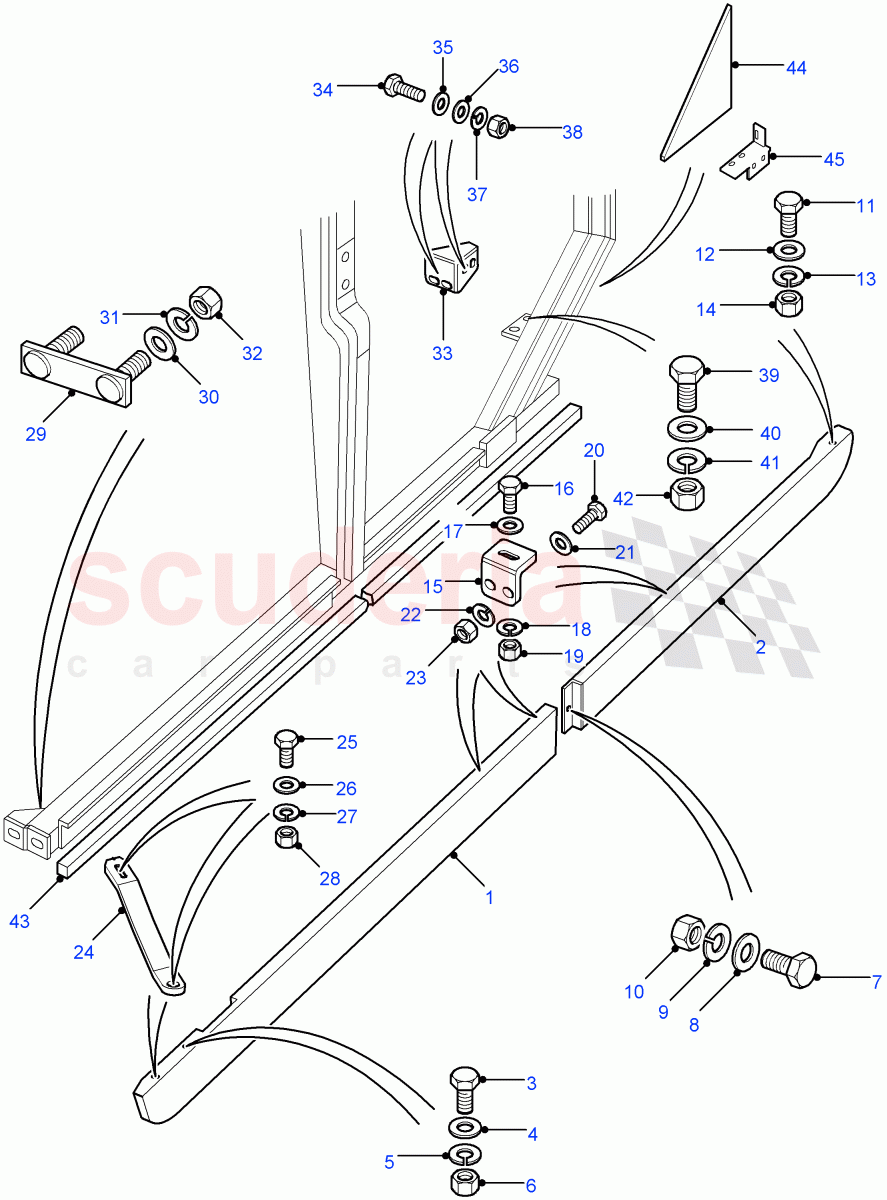

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
RTC6205 MEMBER - SIDE $207.14 To Order
RTC6206 MEMBER - SIDE $207.14 To Order
Photo Part No Description Price (each) Stock
RTC6209 MEMBER - SIDE $152.33 To Order
RTC6210 MEMBER - SIDE $152.33 To Order
ALR9812 MEMBER - SIDE $393.52 To Order
...and 3 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.26 IN STOCK
Photo Part No Description Price (each) Stock
MRC5525 WASHER $2.04 To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.69 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.69 IN STOCK
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.26 IN STOCK
Photo Part No Description Price (each) Stock
RTC609 WASHER $2.73 To Order
Photo Part No Description Price (each) Stock
WM106001L WASHER - SPRING $0.80 To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.69 IN STOCK
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.26 IN STOCK
Photo Part No Description Price (each) Stock
RTC609 WASHER $2.73 To Order
Photo Part No Description Price (each) Stock
WM106001L WASHER - SPRING $0.80 To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.69 IN STOCK
Photo Part No Description Price (each) Stock
MRC9438 BRACKET $18.26 To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW $0.97 IN STOCK
Photo Part No Description Price (each) Stock
AFU1069 WASHER $0.85 To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.69 IN STOCK
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. $0.69 IN STOCK
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.26 IN STOCK
Photo Part No Description Price (each) Stock
RTC609 WASHER $2.73 To Order
Photo Part No Description Price (each) Stock
WM106001L WASHER - SPRING $0.80 To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
ASU710130 STAY $11.68 To Order
Photo Part No Description Price (each) Stock
FS106167L SCREW $2.26 IN STOCK
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR $2.15 IN STOCK
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR $1.69 IN STOCK
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. $1.45 IN STOCK
Photo Part No Description Price (each) Stock
AYR500130 STUD PLATE $21.93 To Order
Photo Part No Description Price (each) Stock
RTC610 WASHER $1.07 To Order
Photo Part No Description Price (each) Stock
WM600051L WASHER - SPRING $1.03 To Order
Photo Part No Description Price (each) Stock
FN108041L NUT - HEX. $1.65 To Order
Photo Part No Description Price (each) Stock
MRC6359 BRACKET $22.62 To Order
MRC6360 BRACKET $25.15 To Order
LR011890 BRACKET $70.40 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
SX108251 SCREW $2.39 To Order
Photo Part No Description Price (each) Stock
WP185L WASHER $3.93 To Order
Photo Part No Description Price (each) Stock
RTC601 PIN - SPLIT $0.62 To Order
Photo Part No Description Price (each) Stock
WM600051L WASHER - SPRING $1.03 To Order
Photo Part No Description Price (each) Stock
FN108041L NUT - HEX. $1.65 To Order
Photo Part No Description Price (each) Stock
FS108161L SCREW $2.43 To Order
Photo Part No Description Price (each) Stock
WC108051L WASHER $0.72 To Order
Photo Part No Description Price (each) Stock
WM600051L WASHER - SPRING $1.03 To Order
Photo Part No Description Price (each) Stock
FN108041L NUT - HEX. $1.65 To Order
Photo Part No Description Price (each) Stock
ALR6368 SEAL $12.14 To Order
Photo Part No Description Price (each) Stock
ALR9804 PANEL - REAR QUARTER $238.07 To Order
ALR9803 PANEL - REAR QUARTER $238.07 To Order
Photo Part No Description Price (each) Stock
ALR9802 BRACKET $234.90 To Order
ALR9801 BRACKET $234.90 To Order
View All
Sill Panels (Crew Cab Pick Up, 110" Wheelbase, Chassis Crew Cab, 130" Wheelbase, Chassis Cab, Station Wagon Utility - 5 Door, Station Wagon - 5 Door, Crew Cab HCPU) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 RTC6205
MEMBER - SIDE
RH, Front 		$207.14 1
1 RTC6206
MEMBER - SIDE
LH, Front 		$207.14 1
2 RTC6209
MEMBER - SIDE
110" Wheelbase / RH, Outer, Rear 		$152.33 1
2 RTC6210
MEMBER - SIDE
110" Wheelbase / LH, Outer, Rear 		$152.33 1
2 ALR9812
MEMBER - SIDE
130" Wheelbase, Chassis Crew Cab / RH, Outer, Rear 		$393.52 1
2 337812
MEMBER - SIDE
130" Wheelbase, Chassis Cab / RH, Outer, Rear 		$18.56 1
2 337813
MEMBER - SIDE
130" Wheelbase, Chassis Cab / LH, Outer, Rear 		$20.10 1
2 ALR9813
MEMBER - SIDE
130" Wheelbase, Chassis Crew Cab / LH, Outer, Rear 		$393.52 1
3 FS106167L
SCREW
Flanged Head, M6 X 16MM
IN STOCK 		$2.26 4
4 MRC5525
WASHER
Standard 		$2.04 8
5 WL106002
RESTRICTOR
M6, sprung
IN STOCK 		$1.69 8
6 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc
IN STOCK 		$0.69 4
7 FS106167L
SCREW
Flanged Head, M6 X 16MM
IN STOCK 		$2.26 2
8 RTC609
WASHER
Standard 		$2.73 4
9 WM106001L
WASHER - SPRING
M6, Square 		$0.80 2
10 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc
IN STOCK 		$0.69 2
11 FS106167L
SCREW
Flanged Head, M6 X 16MM
IN STOCK 		$2.26 4
12 RTC609
WASHER
Standard 		$2.73 4
13 WM106001L
WASHER - SPRING
M6, Square 		$0.80 4
14 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc
IN STOCK 		$0.69 4
15 MRC9438
BRACKET 		$18.26 4
16 FS106206
SCREW
Flanged Head, M6 X 20MM
IN STOCK 		$0.97 4
17 AFU1069
WASHER
Standard 		$0.85 8
18 WL106002
RESTRICTOR
M6, sprung
IN STOCK 		$1.69 4
19 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc
IN STOCK 		$0.69 4
20 FS106167L
SCREW
Flanged Head, M6 X 16MM
IN STOCK 		$2.26 4
21 RTC609
WASHER
Standard 		$2.73 8
22 WM106001L
WASHER - SPRING
M6, Square 		$0.80 4
23 FN106046
NUT - HEX.
M6
IN STOCK 		$1.45 4
24 ASU710130
STAY
Front 		$11.68 2
25 FS106167L
SCREW
Flanged Head, M6 X 16MM
IN STOCK 		$2.26 4
26 WA106042
RESTRICTOR
6MM, Plain
IN STOCK 		$2.15 4
27 WL106002
RESTRICTOR
M6, sprung
IN STOCK 		$1.69 4
28 FN106046
NUT - HEX.
M6
IN STOCK 		$1.45 4
29 AYR500130
STUD PLATE 		$21.93 2
30 RTC610
WASHER 		$1.07 4
31 WM600051L
WASHER - SPRING
5/16" 		$1.03 4
32 FN108041L
NUT - HEX.
flange, M8 		$1.65 4
33 MRC6359
BRACKET
RH / To: 8A777777 		$22.62 1
33 MRC6360
BRACKET
LH / To: 8A777777 		$25.15 1
33 LR011890
BRACKET
LH / From: 8A777778 		$70.40 1
33 LR011892
BRACKET
RH / From: 8A777778 		$42.92 1
34 SX108251
SCREW
hexagonal socket, high tensile, M8 x 25, TO BRACKET 		$2.39 8
35 WP185L
WASHER 		$3.93 2
36 RTC601
PIN - SPLIT 		$0.62 16
37 WM600051L
WASHER - SPRING
5/16" 		$1.03 8
38 FN108041L
NUT - HEX.
flange, M8 		$1.65 8
39 FS108161L
SCREW
Flanged Head, M8 X 16, to frame 		$2.43 4
40 WC108051L
WASHER
M8 		$0.72 4
41 WM600051L
WASHER - SPRING
5/16" 		$1.03 4
42 FN108041L
NUT - HEX.
flange, M8 		$1.65 4
43 ALR6368
SEAL
sill/floor 		$12.14 2
44 ALR9804
PANEL - REAR QUARTER
130" Wheelbase / RH 		$238.07 1
44 ALR9803
PANEL - REAR QUARTER
130" Wheelbase / LH 		$238.07 1
45 ALR9802
BRACKET
130" Wheelbase / RH 		$234.90 1
45 ALR9801
BRACKET
130" Wheelbase / LH 		$234.90 1
