Land Rover Defender (2007-2016) - Rear Body Lower - Mountings (Crew Cab Pick Up, 110" Wheelbase, Station Wagon Utility - 5 Door,...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
AFC710010 CROSSMEMBER Enquire To Order
Photo Part No Description Price (each) Stock
ESQ000030 PAD - ANTI-RATTLE Enquire To Order
Photo Part No Description Price (each) Stock
RU612373L RIVET Enquire To Order
Photo Part No Description Price (each) Stock
AYT500010 PIN - FASTENING Enquire To Order
Photo Part No Description Price (each) Stock
AYH500280 COLLAR Enquire To Order
Photo Part No Description Price (each) Stock
RU612253 Rivet Enquire To Order
Photo Part No Description Price (each) Stock
MRC8736 PLATE Enquire To Order
Photo Part No Description Price (each) Stock
RB610082 RIVET Enquire To Order
Photo Part No Description Price (each) Stock
AYG100240 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WC108057 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
SH108401L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
305232 SHIM Enquire To Order
Photo Part No Description Price (each) Stock
WF600051L WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
MRC6436 PANEL Enquire To Order
MRC6437 PANEL Enquire To Order
Photo Part No Description Price (each) Stock
RU612253 Rivet Enquire To Order
Photo Part No Description Price (each) Stock
333263 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
RTC6270 PAN - FLOOR - CENTRE Enquire To Order
Photo Part No Description Price (each) Stock
MRC8626 SEAL Enquire To Order
LR055349 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
MRC8626 SEAL Enquire To Order
LR055349 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
MRC8626 SEAL Enquire To Order
LR055349 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
DA614061L SCREW - SELF-TAPPING Enquire To Order
Photo Part No Description Price (each) Stock
MRC5527 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
302532 NUT - LOCKING Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
MRC5527 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WM106001L WASHER - SPRING Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
333745 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
AFR710230 STAY Enquire To Order
AFR710220 STAY Enquire To Order
Photo Part No Description Price (each) Stock
LR083229 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
RYP501010 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WA106042 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
WL106002 RESTRICTOR Enquire To Order
Photo Part No Description Price (each) Stock
FY106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
FN108046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
AFT710090 REINFORCEMENT Enquire To Order
Photo Part No Description Price (each) Stock
FS108207L SCREW Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
WA108056 WASHER Enquire To Order
Photo Part No Description Price (each) Stock
AYT500020 PIN - FASTENING Enquire To Order
Photo Part No Description Price (each) Stock
AYF000010 WASHER Enquire To Order
View All

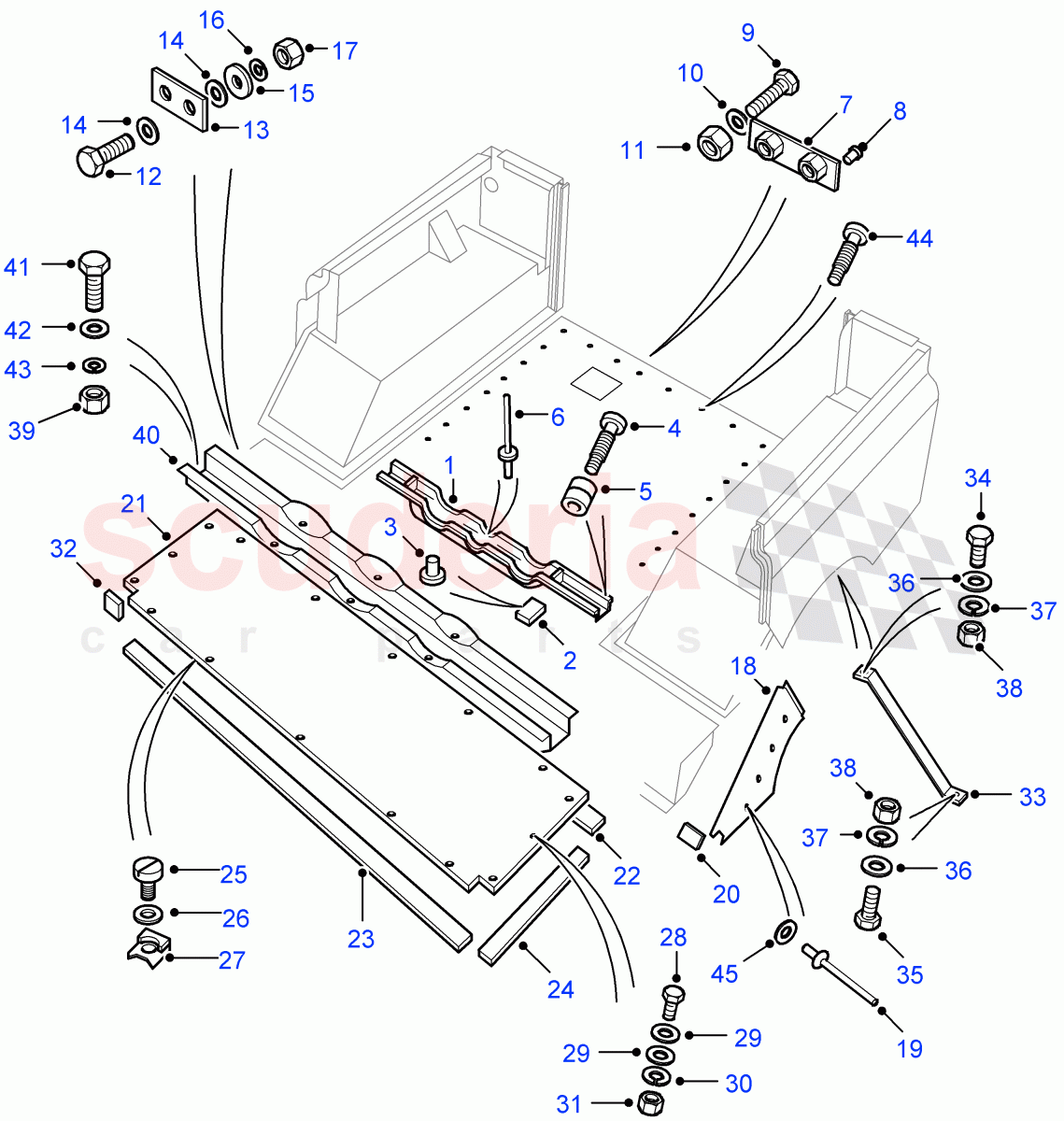

Rear Body Lower - Mountings (Crew Cab Pick Up, 110" Wheelbase, Station Wagon Utility - 5 Door, Station Wagon - 5 Door) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 AFC710010
CROSSMEMBER 		- 4 Enquire
2 ESQ000030
PAD - ANTI-RATTLE 		- 8 Enquire
3 RU612373L
RIVET
3/16" x 0.575"lng 		- 16 Enquire
4 AYT500010
PIN - FASTENING
35MM 		- - Enquire
5 AYH500280
COLLAR 		- - Enquire
6 RU612253
Rivet
3/16" x 0.45"lng, pop 		- 24 Enquire
7 MRC8736
PLATE 		- 3 Enquire
8 RB610082
RIVET 		- 6 Enquire
9 AYG100240
SCREW
M8 x 25, Torx Drive 		- 10 Enquire
10 WC108057
WASHER
M8 		- 10 Enquire
11 FN108046
NUT - HEX.
Flanged Head, M8 		- 4 Enquire
12 SH108401L
SCREW
heelboard to chassis, Hexagonal Head, M8 x 40 		- 4 Enquire
13 305232
SHIM 		- 10 Enquire
14 WF600051L
WASHER
retaining 		- 8 Enquire
15 WA108056
WASHER
8MM 		- 4 Enquire
16 WA108056
WASHER
M8, sprung 		- 4 Enquire
17 FN108046
NUT - HEX.
Flanged Head, M8 		- 4 Enquire
18 MRC6436
PANEL
RH 		- 1 Enquire
18 MRC6437
PANEL
LH 		- 1 Enquire
19 RU612253
Rivet
3/16" x 0.45"lng, pop 		- 22 Enquire
20 333263
SEAL 		- 2 Enquire
21 RTC6270
PAN - FLOOR - CENTRE 		- 1 Enquire
22 MRC8626
SEAL
1.6M, Long / To: DA445715 		- 1 Enquire
22 LR055349
SEAL
1.6M, Long / From: DA445716 		- 1 Enquire
23 MRC8626
SEAL
1.6M, Long / To: DA445715 		- 1 Enquire
23 LR055349
SEAL
1.6M, Long / From: DA445716 		- 1 Enquire
24 MRC8626
SEAL
1.6M, Long / To: DA445715 		- 2 Enquire
24 LR055349
SEAL
1.6M, Long / From: DA445716 		- 2 Enquire
25 DA614061L
SCREW - SELF-TAPPING 		- 2 Enquire
26 MRC5527
WASHER
M6, Plain 		- 6 Enquire
27 302532
NUT - LOCKING 		- 6 Enquire
28 FS106206
SCREW
Flanged Head, M6 X 20MM 		- 6 Enquire
29 MRC5527
WASHER
M6, Plain 		- 12 Enquire
30 WM106001L
WASHER - SPRING
M6, Square 		- 6 Enquire
31 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc 		- 6 Enquire
32 333745
SEAL 		- 2 Enquire
33 AFR710230
STAY
LH 		- 1 Enquire
33 AFR710220
STAY
RH 		- 1 Enquire
34 LR083229
SCREW
M6 X 20MM, Pan Head, stay to floor 		- 2 Enquire
35 FS106206
SCREW
Flanged Head, M6 X 20MM / To: 8A758864 		- 2 Enquire
35 RYP501010
SCREW
Flanged Head, M6 X 20MM / From: 8A758865 		- 2 Enquire
36 WA106042
RESTRICTOR
6MM, Plain 		- 4 Enquire
37 WL106002
RESTRICTOR
M6, sprung 		- 4 Enquire
38 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc 		- 4 Enquire
39 FN108046
NUT - HEX.
Flanged Head, M8 		- 8 Enquire
40 AFT710090
REINFORCEMENT
Lower 		- 1 Enquire
41 FS108207L
SCREW
Flanged Head, M8 X 20MM 		- 8 Enquire
42 WA108056
WASHER
8MM 		- 8 Enquire
43 WA108056
WASHER
M8, sprung 		- 8 Enquire
44 AYT500020
PIN - FASTENING
38MM 		- - Enquire
45 AYF000010
WASHER
M8 x 18MM 		- 4 Enquire
