Rear End Door Check Mechanism-With Torsion Bar (Hard Top, 110" Wheelbase, 90" Wheelbase, Station...

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Rear End Door Check Mechanism-With Torsion Bar (Hard Top, 110" Wheelbase, 90" Wheelbase, Station...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

View All

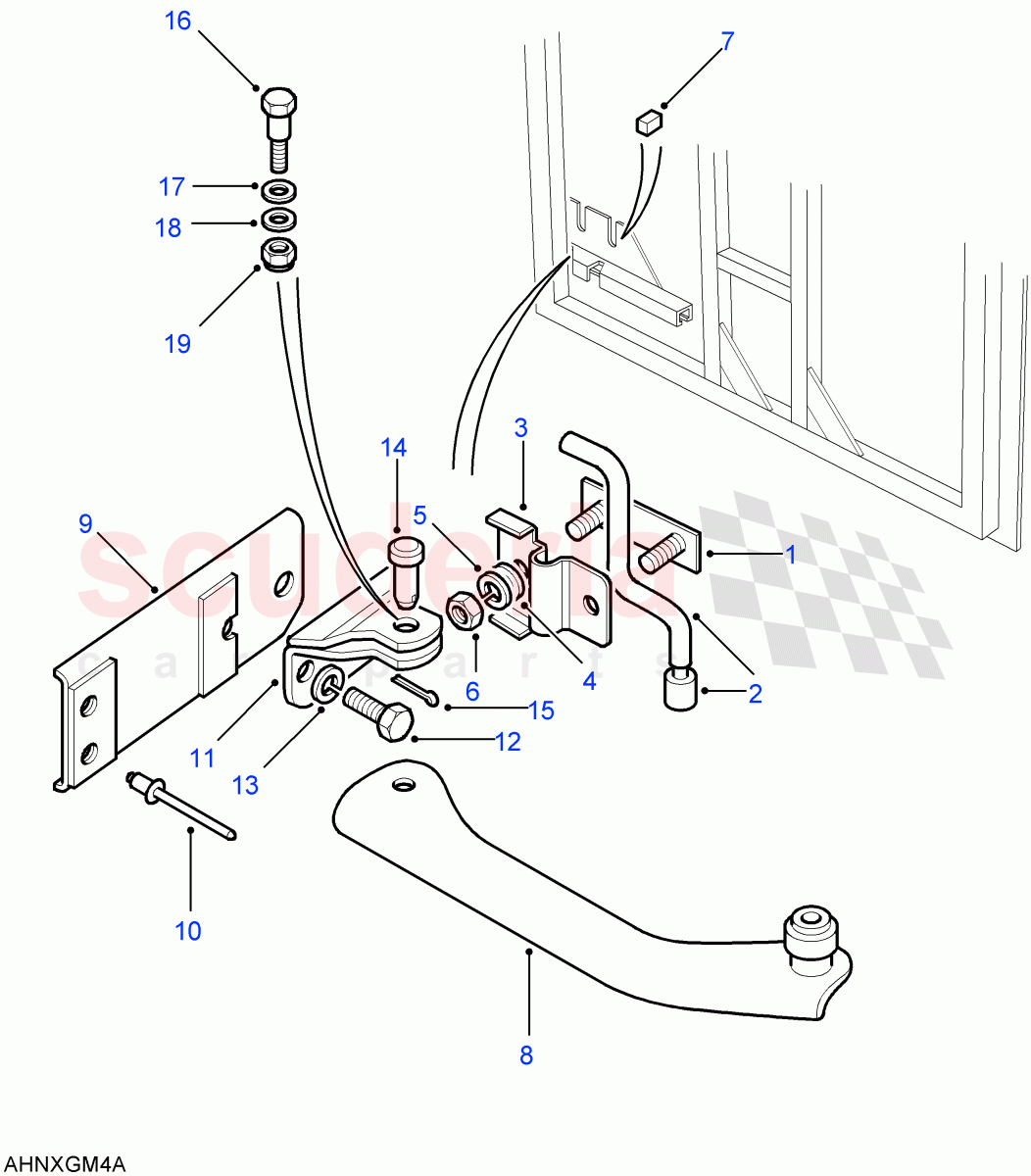

Rear End Door Check Mechanism-With Torsion Bar (Hard Top, 110" Wheelbase, 90" Wheelbase, Station Wagon - 5 Door, Station Wagon - 3 Door) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 BFU710200
STUD 		- 1 Enquire
2 MXC1790
BAR - TORSION 		- 1 Enquire
3 MWC6450
BRACKET 		- 1 Enquire
4 AFU1080
WASHER
Plain 		- 2 Enquire
5 WL106002
RESTRICTOR
M6, sprung 		- 2 Enquire
6 FN106046
NUT - HEX.
M6 		- 2 Enquire
7 MWC5759
PAD - DOOR STOP
To: 8A759999 		- 1 Enquire
7 CFM500020
BUMPER - DOOR
From: 8A760000 / To: 9A766023 		- 1 Enquire
7 LR010901
BUMPER - DOOR
From: 9A766024 		- 1 Enquire
7 LR024184
BUMPER - DOOR
RAW LE / From: BA401872 		- 1 Enquire
8 BHQ710030
CHECK - DOOR
To: 9A888887 		- 1 Enquire
8 LR016708
CHECK - DOOR
From: 9A888888 		- 1 Enquire
9 RRC8517
ARM AND BRACKET - DOOR CHECK
To: 9A888887 		- 1 Enquire
9 LR016768
ARM AND BRACKET - DOOR CHECK
From: 9A888888 		- 1 Enquire
10 RU612253
Rivet
3/16" x 0.45"lng, pop 		- 2 Enquire
11 MXC2047
BRACKET
To: 9A888887 		- 1 Enquire
11 LR079274
BRACKET - BRACE MOUNTING
From: 9A888888 / To: GA479046 		- 1 Enquire
11 LR079274
BRACKET - BRACE MOUNTING
From: GA479047 		- 1 Enquire
12 FS108207L
SCREW
bracket pivot to bracket checker, Flanged Head, M8 X 20MM 		- 2 Enquire
13 WL108002
WASHER
M8, sprung 		- 2 Enquire
14 306564
CLEVIS PIN 		- 1 Enquire
15 2393
PIN - SPLIT 		- 1 Enquire
16 BYG500130
BOLT
pin clevis to checker assembly 		- 1 Enquire
17 WA108056
WASHER
8MM 		- 1 Enquire
18 WA106042
RESTRICTOR
6MM, Plain 		- 1 Enquire
19 FY106046
NUT - HEX.
Hexagonal Head, M6, nyloc 		- 1 Enquire
