Name: Pulleys And Drive Belts (2.2L 16V TC I4 DSL 122PS PUMA, Less Air Conditioning) ((V) FROMCA000001)
Rating: 4.9 (1 reviews)

View All

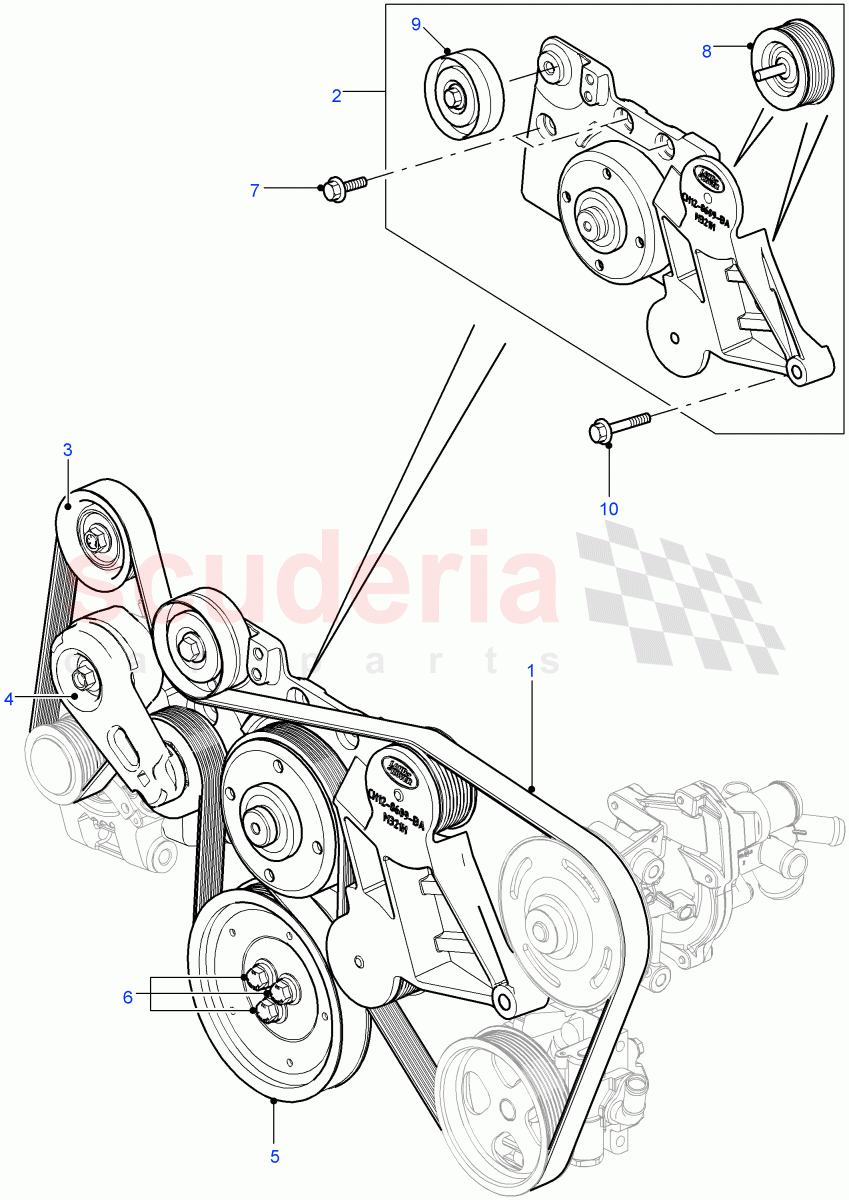

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR031361	V-BELT	$75.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031367	BRACKET AND BEARING	$489.08	To Order

Photo	Part No	Description	Price (each)	Stock
	PQH500100	IDLER	$96.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR033497	PULLEY - TENSION	$158.26	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029988	PULLEY - CRANKSHAFT	$427.30	To Order

Photo	Part No	Description	Price (each)	Stock
	LR023101	BOLT - HEX.HEAD	$13.43	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108307L	SCREW	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	PQH500100	IDLER	$96.49	To Order

Photo	Part No	Description	Price (each)	Stock
	PQH500120	IDLER	$91.44	To Order

Photo	Part No	Description	Price (each)	Stock
	FC110116	BOLT	$1.00	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR031361	V-BELT	LR031361 V-BELT	$75.72	1
2	LR031367	BRACKET AND BEARING	LR031367 BRACKET AND BEARING	$489.08	1
3	PQH500100	IDLER	PQH500100 IDLER	$96.49	1
4	LR033497	PULLEY - TENSION	LR033497 PULLEY - TENSION	$158.26	1
5	LR029988	PULLEY - CRANKSHAFT	LR029988 PULLEY - CRANKSHAFT From: CA000001	$427.30	1
6	LR023101	BOLT - HEX.HEAD	LR023101 BOLT - HEX.HEAD M12 x 80MM	$13.43	3
7	FS108307L	SCREW	FS108307L SCREW Flanged Head, M8 x 30MM	$2.61	3
8	PQH500100	IDLER	PQH500100 IDLER	$96.49	2
9	PQH500120	IDLER	PQH500120 IDLER	$91.44	1
10	FC110116	BOLT	FC110116 BOLT M10 x 55MM	$1.00	1

Pulleys And Drive Belts (2.2L 16V Tc I4 Dsl 122Ps Puma, Less Air Conditioning) ((V) Fromca000001)

Land Rover Defender (2007-2016)
