Fuel Injectors And Pipes (2.2L 16V Tc I4 Dsl 122Ps Puma) ((V) Fromca000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Fuel Injectors And Pipes (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR029947 TUBE - FUEL $91.83 To Order
Photo Part No Description Price (each) Stock
LR029948 TUBE - FUEL RETURN $143.73 To Order
Photo Part No Description Price (each) Stock
LR029949 MANIFOLD - FUEL SUPPLY $387.91 To Order
Photo Part No Description Price (each) Stock
LR029950 BRACKET - FUEL TUBE SUPPORT $11.76 To Order
LR043160 BRACKET - FUEL TUBE SUPPORT $16.40 To Order
Photo Part No Description Price (each) Stock
LR029951 TUBE - FUEL $36.40 To Order
Photo Part No Description Price (each) Stock
LR029954 TUBE - FUEL $60.89 To Order
Photo Part No Description Price (each) Stock
LR032066 SCREW $4.52 To Order
Photo Part No Description Price (each) Stock
LR029957 TUBE - FUEL $57.98 To Order
Photo Part No Description Price (each) Stock
LR032067 NOZZLE AND HOLDER - FUEL INJECTOR $749.24 To Order
LR083366 NOZZLE AND HOLDER - FUEL INJECTOR $560.14 To Order
Photo Part No Description Price (each) Stock
LR029959 WIRE - GLOW PLUG $92.43 To Order
LR037550 WIRE - GLOW PLUG $141.39 To Order
LR039646 WIRE - GLOW PLUG $161.28 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR029960 GLOW PLUG $23.30 To Order
Photo Part No Description Price (each) Stock
LR029961 CLAMP $30.82 To Order
LR058107 CLAMP $31.21 To Order
Photo Part No Description Price (each) Stock
LR029962 BOLT $4.17 IN STOCK
Photo Part No Description Price (each) Stock
LR032070 SEAL - INJECTOR $11.64 To Order
Photo Part No Description Price (each) Stock
JYP500110 SCREW $1.08 To Order
Photo Part No Description Price (each) Stock
LR004029 BOLT - HEX.HEAD $3.40 To Order
Photo Part No Description Price (each) Stock
NH104042 NUT $3.71 IN STOCK
Photo Part No Description Price (each) Stock
LR004490 CLAMP $5.98 To Order
Photo Part No Description Price (each) Stock
LR019118 O-RING $3.32 To Order
View All

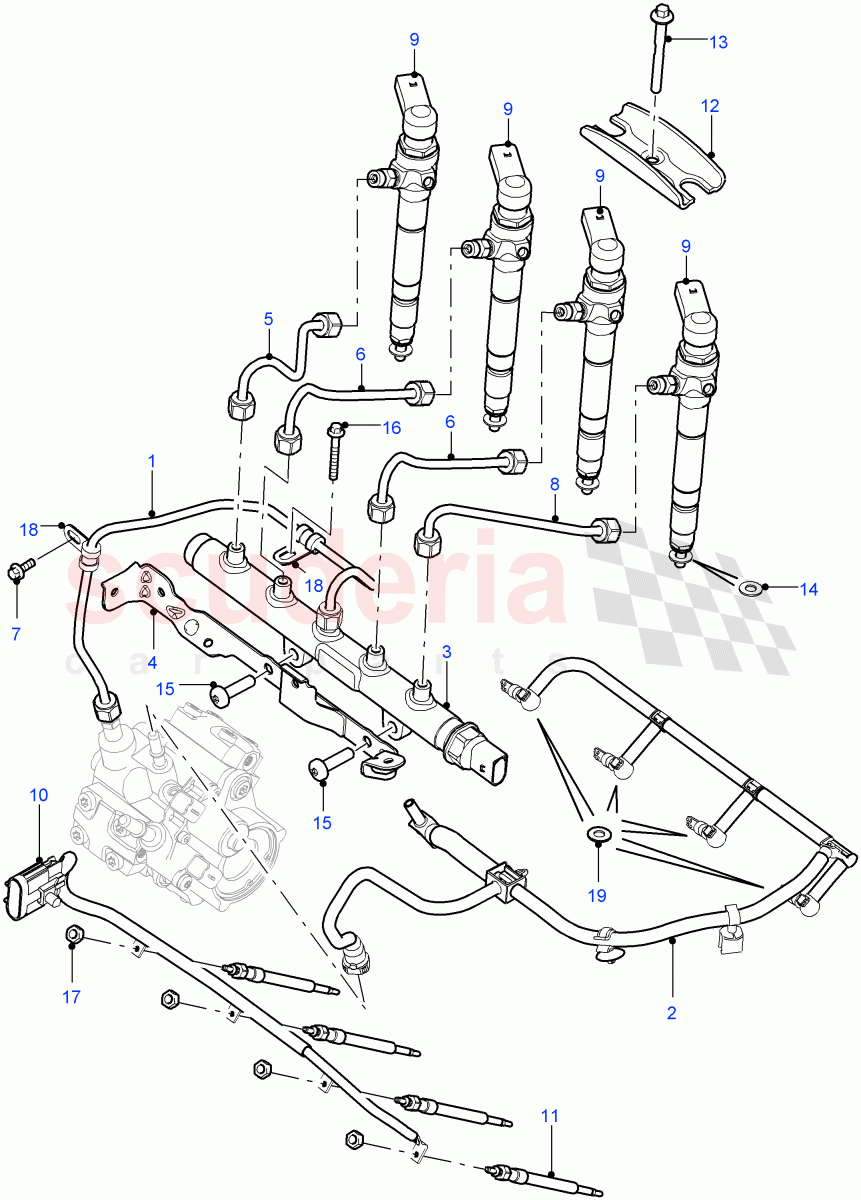

Fuel Injectors And Pipes (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR029947
TUBE - FUEL 		$91.83 1
2 LR029948
TUBE - FUEL RETURN
Leak Off 		$143.73 1
3 LR029949
MANIFOLD - FUEL SUPPLY 		$387.91 1
4 LR029950
BRACKET - FUEL TUBE SUPPORT
To: CA444443 		$11.76 1
4 LR043160
BRACKET - FUEL TUBE SUPPORT
From: CA444444 		$16.40 1
5 LR029951
TUBE - FUEL 		$36.40 1
6 LR029954
TUBE - FUEL 		$60.89 2
7 LR032066
SCREW
M6 X 14MM 		$4.52 1
8 LR029957
TUBE - FUEL 		$57.98 1
9 LR032067
NOZZLE AND HOLDER - FUEL INJECTOR
New Part-Please Check For Reman Version 		$749.24 4
9 LR083366
NOZZLE AND HOLDER - FUEL INJECTOR
Remanufactured Part 		$560.14 4
10 LR029959
WIRE - GLOW PLUG
To: CA455554 		$92.43 1
10 LR037550
WIRE - GLOW PLUG
From: CA455555 / To: CA555554 		$141.39 1
10 LR039646
WIRE - GLOW PLUG
From: CA555555 / To: CA999999 		$161.28 1
10 LR045566
WIRE - GLOW PLUG
From: DA000001 		$161.28 1
11 LR029960
GLOW PLUG 		$23.30 4
12 LR029961
CLAMP
To: DA444246 		$30.82 2
12 LR058107
CLAMP
From: DA444247 		$31.21 2
13 LR029962
BOLT
IN STOCK 		$4.17 2
14 LR032070
SEAL - INJECTOR 		$11.64 4
15 JYP500110
SCREW
M8 x 30MM 		$1.08 2
16 LR004029
BOLT - HEX.HEAD
M6 x 50MM 		$3.40 1
17 NH104042
NUT
M4
IN STOCK 		$3.71 4
18 LR004490
CLAMP 		$5.98 2
19 LR019118
O-RING
For Fuel Tube, Leak Off 		$3.32 4
