Timing Gear Covers (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)

Find Your Part

Land Rover Defender (2007-2016) - Timing Gear Covers (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR029906 COVER - CYLINDER FRONT Enquire To Order
Photo Part No Description Price (each) Stock
LR029318 SEAL - CRANKSHAFT OIL - FRONT Enquire To Order
LR045106 SEAL - CRANKSHAFT OIL - FRONT Enquire To Order
LR077704 SEAL - CRANKSHAFT OIL - FRONT Enquire To Order
Photo Part No Description Price (each) Stock
LR004639 COVER - OPENING Enquire To Order
Photo Part No Description Price (each) Stock
LR029907 GASKET - CYL. HEAD FRONT COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR005625 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
FN106042 NUT Enquire To Order
Photo Part No Description Price (each) Stock
STC50550 SEALER - ADHESIVE PAN/ENGINE Enquire To Order
Photo Part No Description Price (each) Stock
LR004356 STUD - SPECIAL Enquire To Order
View All

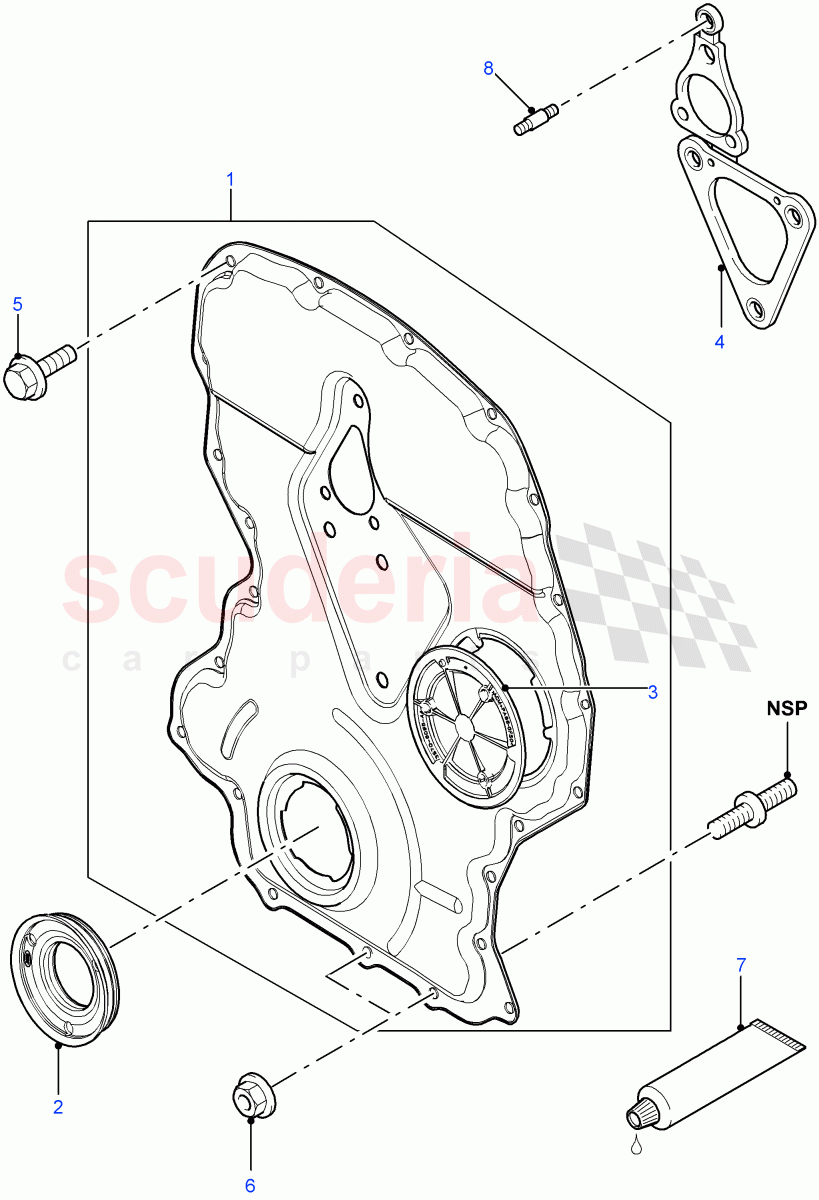

Timing Gear Covers (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR029906
COVER - CYLINDER FRONT 		- 1 Enquire
2 LR029318
SEAL - CRANKSHAFT OIL - FRONT
To: CA444443 		- 1 Enquire
2 LR045106
SEAL - CRANKSHAFT OIL - FRONT
From: CA444444 / To: FA467697 		- 1 Enquire
2 LR077704
SEAL - CRANKSHAFT OIL - FRONT
From: FA467698 		- 1 Enquire
3 LR004639
COVER - OPENING 		- 1 Enquire
4 LR029907
GASKET - CYL. HEAD FRONT COVER 		- 1 Enquire
5 LR005625
BOLT - HEX.HEAD
M6 X 16MM 		- 20 Enquire
6 FN106042
NUT
M6 		- 2 Enquire
7 STC50550
SEALER - ADHESIVE PAN/ENGINE
Use As Required 		- - Enquire
8 LR004356
STUD - SPECIAL
M8 X 17 + M8 X 21 		- 1 Enquire
