Name: Timing Gear (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999)
Rating: 4.4 (1 reviews)

View All

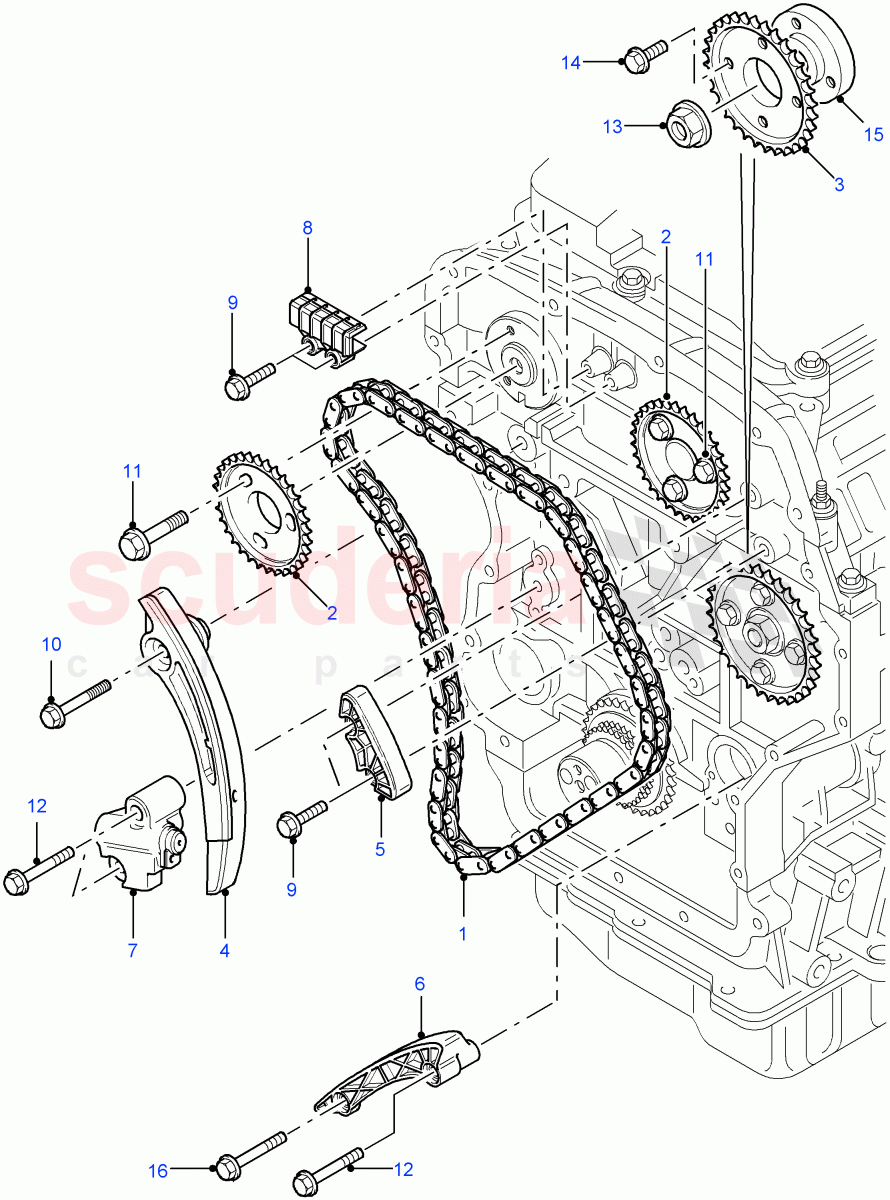

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004457	CHAIN - TIMING	$439.29	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004485	PULLEY - FUEL INJ. PUMP	$248.65	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004367	GUIDE	$45.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004450	CHAIN - TIMING	$176.36	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005330	TENSIONER	$51.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004449	CHAIN - TIMING	$42.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004340	BOLT	$1.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004386	SCREW	$4.00	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004499	BOLT	$2.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR002806	NUT	$1.19	To Order

Photo	Part No	Description	Price (each)	Stock
	LR000260	BOLT	$1.74	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004338	BOLT - HEX.HEAD	$2.47	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR004457	CHAIN - TIMING	LR004457 CHAIN - TIMING	$439.29	1
2	LR004456	SPROCKET - CAMSHAFT	LR004456 SPROCKET - CAMSHAFT To: 9A768937	$35.27	2
2	LR014247	SPROCKET - CAMSHAFT	LR014247 SPROCKET - CAMSHAFT From: 9A768938	$153.96	2
3	LR004485	PULLEY - FUEL INJ. PUMP	LR004485 PULLEY - FUEL INJ. PUMP	$248.65	1
4	LR005329	TENSIONER - TIMING BELT	LR005329 TENSIONER - TIMING BELT From: 7A748008	$14.40	1
4	LR004439	TENSIONER - TIMING BELT	LR004439 TENSIONER - TIMING BELT To: 7A748007	$41.06	1
5	LR004367	GUIDE	LR004367 GUIDE	$45.75	1
6	LR004450	CHAIN - TIMING	LR004450 CHAIN - TIMING	$176.36	1
7	LR005330	TENSIONER	LR005330 TENSIONER	$51.62	1
8	LR004449	CHAIN - TIMING	LR004449 CHAIN - TIMING	$42.53	1
9	LR004340	BOLT	LR004340 BOLT M6 x 30	$1.62	4
10	LR004442	BOLT	LR004442 BOLT To: 7A999999	$7.24	1
10	LR006615	BOLT	LR006615 BOLT From: 8A000001	$2.97	1
11	LR004386	SCREW	LR004386 SCREW M8 X 16	$4.00	6
12	LR004499	BOLT	LR004499 BOLT M6 x 50	$2.74	3
13	LR002806	NUT	LR002806 NUT	$1.19	1
14	LR000260	BOLT	LR000260 BOLT M8 x 25	$1.74	4
15	LR004481	HUB	LR004481 HUB To: 7A999999	$95.30	1
15	LR006248	HUB	LR006248 HUB From: 8A000001	$281.52	1
16	LR004338	BOLT - HEX.HEAD	LR004338 BOLT - HEX.HEAD M6 X 25MM	$2.47	1

Timing Gear (2.4L Duratorq-Tdci Hpcr (140Ps) -Puma) ((V) From7A000001, (V) Toba999999)

Land Rover Defender (2007-2016)
