Crankshaft/Pistons And Bearings (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Crankshaft/Pistons And Bearings (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V)...

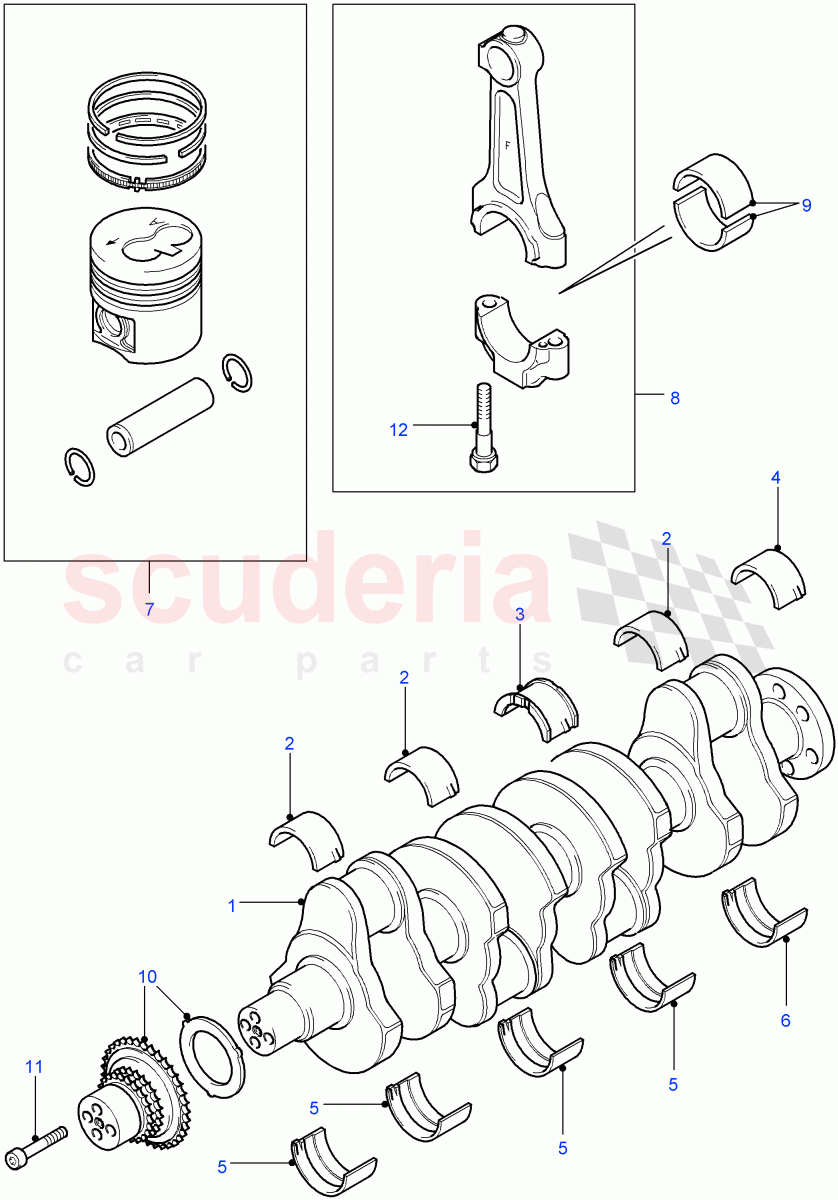

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004413	CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004400	BEARING - CRANKSHAFT MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004372	BEARING - CRANKSHAFT MAIN THRUST	Enquire	To Order
	LR038335	BEARING - CRANKSHAFT MAIN THRUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004368	BEARING - CRANKSHAFT MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004394	RING - CRANKSHAFT MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004398	BEARING - CRANKSHAFT MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004436	PISTON - PIN AND RING	Enquire	To Order
	LR004437	PISTON- PIN AND RING	Enquire	To Order
	LR004438	PISTON- PIN AND RING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004453	ROD - CONNECTING	Enquire	To Order
	LR004454	ROD - CONNECTING	Enquire	To Order
	LR004455	ROD - CONNECTING	Enquire	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR004411	BEARING - CONNECTING ROD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004458	GEAR - CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004366	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004385	BOLT - SPECIAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	LR004413	CRANKSHAFT	LR004413 CRANKSHAFT	-	1	Enquire
2	LR004400	BEARING - CRANKSHAFT MAIN	LR004400 BEARING - CRANKSHAFT MAIN Front, Upper	-	3	Enquire
3	LR004372	BEARING - CRANKSHAFT MAIN THRUST	LR004372 BEARING - CRANKSHAFT MAIN THRUST Centre, Standard, Upper	-	1	Enquire
3	LR038335	BEARING - CRANKSHAFT MAIN THRUST	LR038335 BEARING - CRANKSHAFT MAIN THRUST 0.25mm oversize, Centre, Upper	-	1	Enquire
4	LR004368	BEARING - CRANKSHAFT MAIN	LR004368 BEARING - CRANKSHAFT MAIN Rear, Upper	-	1	Enquire
5	LR004394	RING - CRANKSHAFT MAIN	LR004394 RING - CRANKSHAFT MAIN Lower, STD	-	4	Enquire
6	LR004398	BEARING - CRANKSHAFT MAIN	LR004398 BEARING - CRANKSHAFT MAIN Lower, Rear	-	1	Enquire
7	LR004436	PISTON - PIN AND RING	LR004436 PISTON - PIN AND RING Grade A	-	4	Enquire
7	LR004437	PISTON- PIN AND RING	LR004437 PISTON- PIN AND RING Grade B	-	4	Enquire
7	LR004438	PISTON- PIN AND RING	LR004438 PISTON- PIN AND RING Grade C	-	4	Enquire
8	LR004453	ROD - CONNECTING	LR004453 ROD - CONNECTING Grade H / To: AA999999	-	4	Enquire
8	LR004454	ROD - CONNECTING	LR004454 ROD - CONNECTING Grade I / To: AA999999	-	4	Enquire
8	LR004455	ROD - CONNECTING	LR004455 ROD - CONNECTING Grade J	-	4	Enquire
8	LR044564	ROD - CONNECTING	LR044564 ROD - CONNECTING Grade H / From: BA000001	-	4	Enquire
8	LR046706	ROD - CONNECTING	LR046706 ROD - CONNECTING Grade I / From: BA000001	-	4	Enquire
8	LR056902	ROD - CONNECTING	LR056902 ROD - CONNECTING Grade J	-	4	Enquire
9	LR004411	BEARING - CONNECTING ROD	LR004411 BEARING - CONNECTING ROD	-	8	Enquire
10	LR004458	GEAR - CRANKSHAFT	LR004458 GEAR - CRANKSHAFT	-	1	Enquire
11	LR004366	SCREW	LR004366 SCREW	-	1	Enquire
12	LR004385	BOLT - SPECIAL	LR004385 BOLT - SPECIAL	-	8	Enquire
