Air Conditioning - Compressor (2.2L 16V Tc I4 Dsl 122Ps Puma, With Manual Air Conditioning) ((V)...

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Air Conditioning - Compressor (2.2L 16V TC I4 DSL 122PS PUMA, With Manual Air Conditioning) ((V)...

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR031453 COMPRESSOR - AIR CONDITIONING Enquire To Order
Photo Part No Description Price (each) Stock
FB108226 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LDU500080 BRACKET - ENGINE FRONT SUPPORT Enquire To Order
Photo Part No Description Price (each) Stock
PRF500030 PULLEY - AUX. DRIVE Enquire To Order
Photo Part No Description Price (each) Stock
FS108206 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS108206 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
FS108256 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
KYG500390 STUD Enquire To Order
Photo Part No Description Price (each) Stock
FN106046 NUT - HEX. Enquire To Order
Photo Part No Description Price (each) Stock
JYX100140L O-RING Enquire To Order
View All

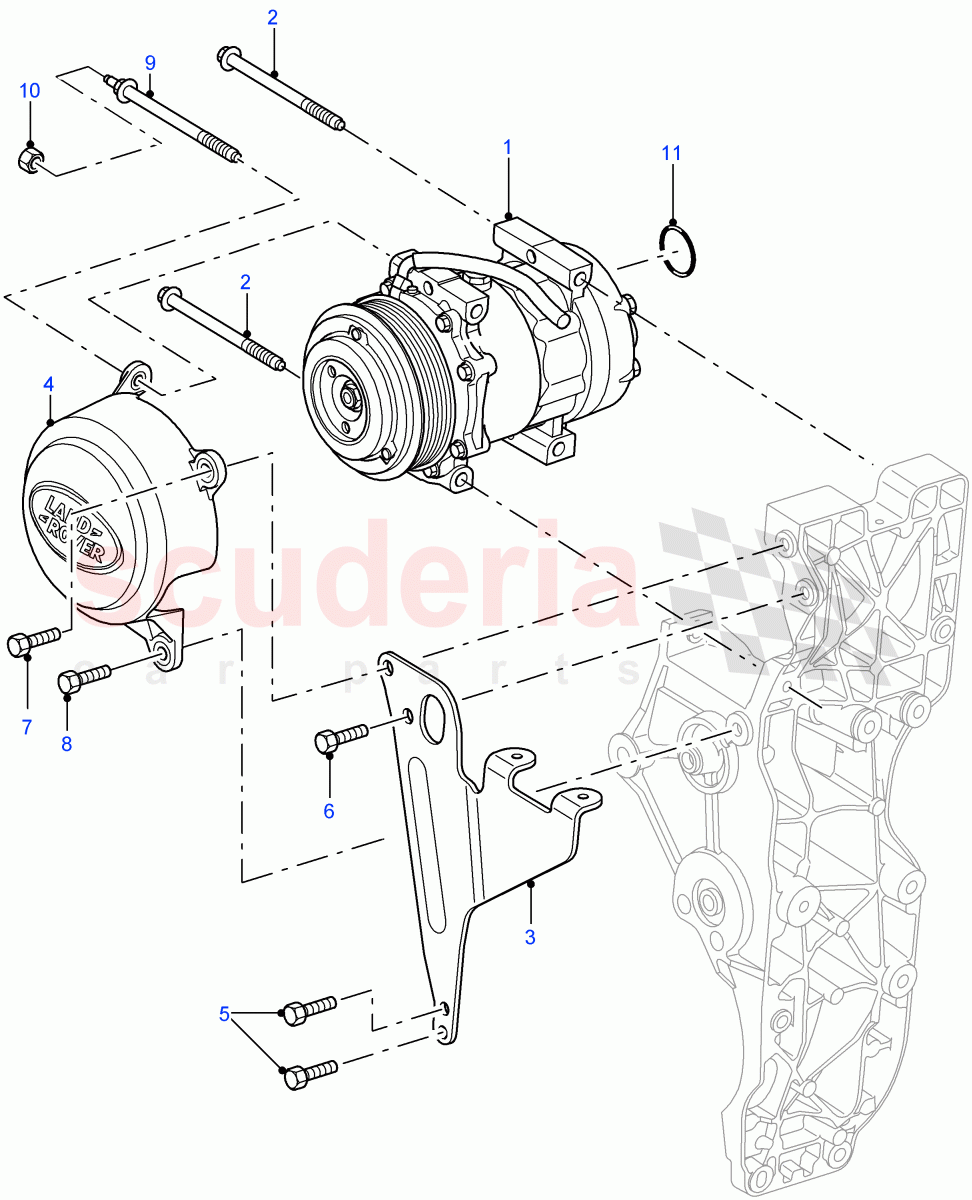

Air Conditioning - Compressor (2.2L 16V TC I4 DSL 122PS PUMA, With Manual Air Conditioning) ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR031453
COMPRESSOR - AIR CONDITIONING 		- 1 Enquire
2 FB108226
BOLT
M8 X 110MM 		- 2 Enquire
3 LDU500080
BRACKET - ENGINE FRONT SUPPORT 		- 1 Enquire
4 PRF500030
PULLEY - AUX. DRIVE 		- 1 Enquire
5 FS108206
BOLT
M8 X 20 		- 2 Enquire
6 FS108206
BOLT
M8 X 20 		- 1 Enquire
7 FS108256
BOLT
M8 x 25 		- 1 Enquire
8 FS108256
BOLT
M8 x 25 		- 1 Enquire
9 KYG500390
STUD 		- 1 Enquire
10 FN106046
NUT - HEX.
M6 		- 1 Enquire
11 JYX100140L
O-RING 		- 2 Enquire
