Oil Pump (2.4L Duratorq-Tdci Hpcr (140Ps) -Puma) ((V) From7A000001, (V) Toba999999)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Oil Pump (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR004868 PUMP - OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR004405 CHAIN - OIL PUMP DRIVE Enquire To Order
Photo Part No Description Price (each) Stock
LR004406 TENSIONER - TIMING CHAIN Enquire To Order
Photo Part No Description Price (each) Stock
LR004504 SCREW AND WASHER Enquire To Order
Photo Part No Description Price (each) Stock
4378449 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR004246 DOWEL - PIN Enquire To Order
Photo Part No Description Price (each) Stock
LR004360 STUD Enquire To Order
View All

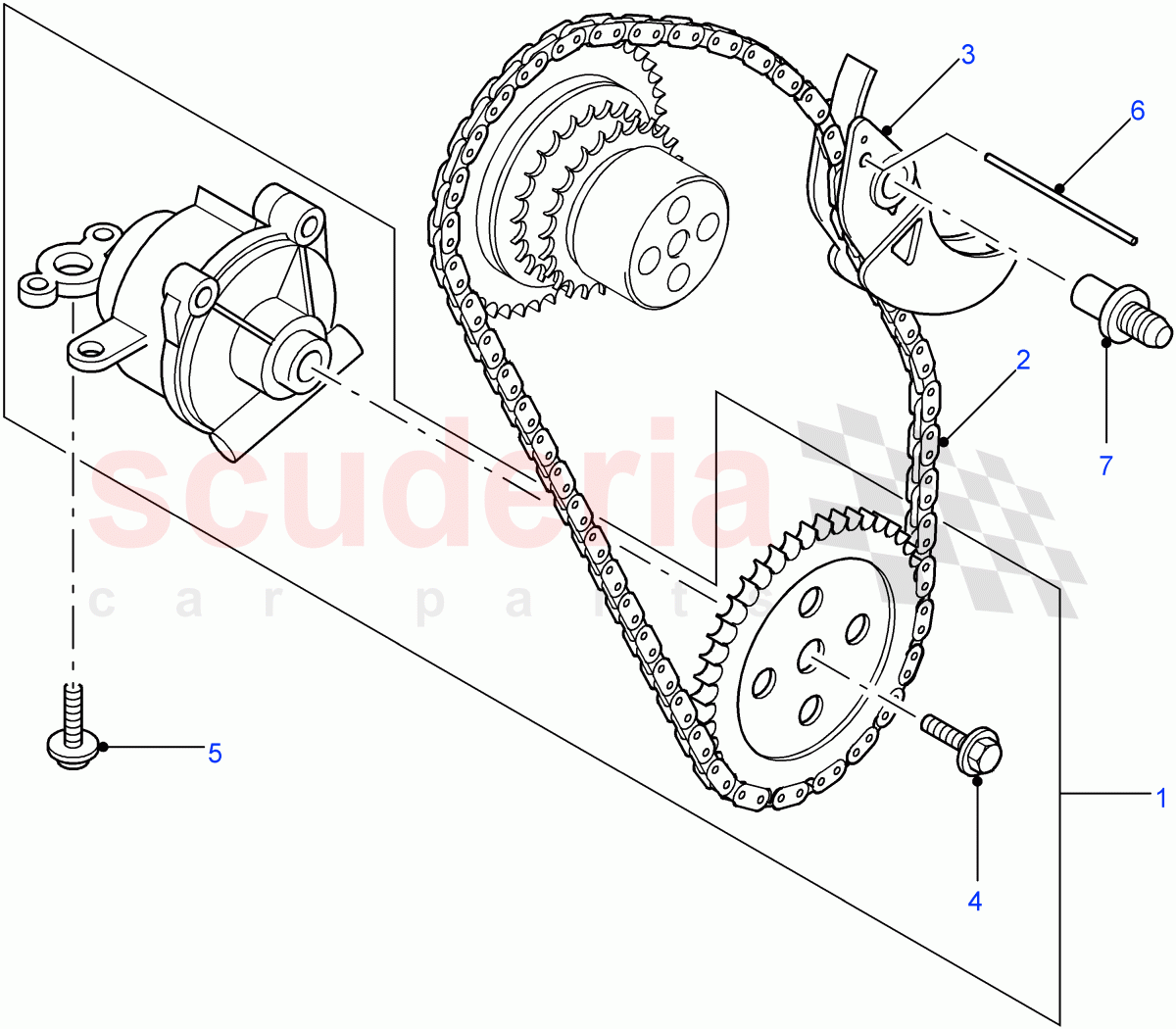

Oil Pump (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR004868
PUMP - OIL 		- 1 Enquire
2 LR004405
CHAIN - OIL PUMP DRIVE 		- 1 Enquire
3 LR004406
TENSIONER - TIMING CHAIN 		- 1 Enquire
4 LR004504
SCREW AND WASHER
M8 X 20MM 		- 1 Enquire
5 4378449
SCREW
M6 X 25MM 		- 2 Enquire
6 LR004246
DOWEL - PIN 		- 1 Enquire
7 LR004360
STUD 		- 1 Enquire
