Water Pump (2.4L Duratorq-Tdci Hpcr (140Ps) -Puma) ((V) From7A000001, (V) Toba999999)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Water Pump (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR004514 PUMP AND CONNECTOR - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR083283 KIT - WATER PUMP REPAIR Enquire To Order
Photo Part No Description Price (each) Stock
LR004389 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
LR004628 HOSE Enquire To Order
Photo Part No Description Price (each) Stock
LR004627 TUBE - CONNECTING Enquire To Order
Photo Part No Description Price (each) Stock
LR004614 SEAL Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
LR004335 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR004350 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
PYB500040 PLUG - BLANKING Enquire To Order
View All

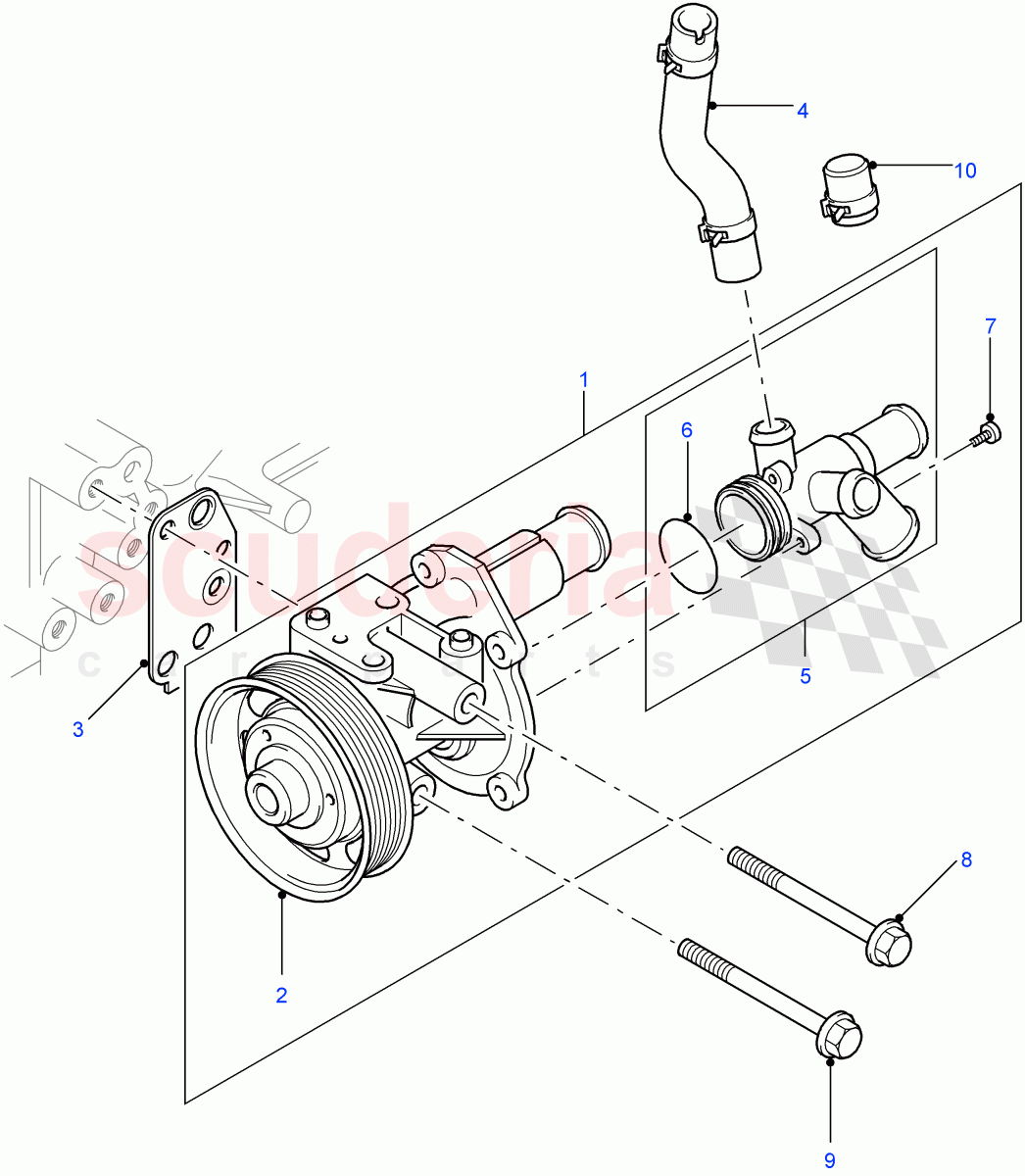

Water Pump (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR004514
PUMP AND CONNECTOR - WATER 		- 1 Enquire
2 LR083283
KIT - WATER PUMP REPAIR 		- 1 Enquire
3 LR004389
SEAL 		- 1 Enquire
4 LR004628
HOSE 		- 1 Enquire
5 LR004627
TUBE - CONNECTING 		- 1 Enquire
6 LR004614
SEAL 		- 1 Enquire
7 FS106206
SCREW
Flanged Head, M6 X 20MM 		- 5 Enquire
8 LR004335
BOLT - HEX.HEAD
M8 x 70MM 		- 2 Enquire
9 LR004350
BOLT
M8 x 105MM 		- 1 Enquire
10 PYB500040
PLUG - BLANKING 		- 1 Enquire
