Name: Cylinder Head (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)
Rating: 4.7 (1 reviews)

Cylinder Head (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016)

View All

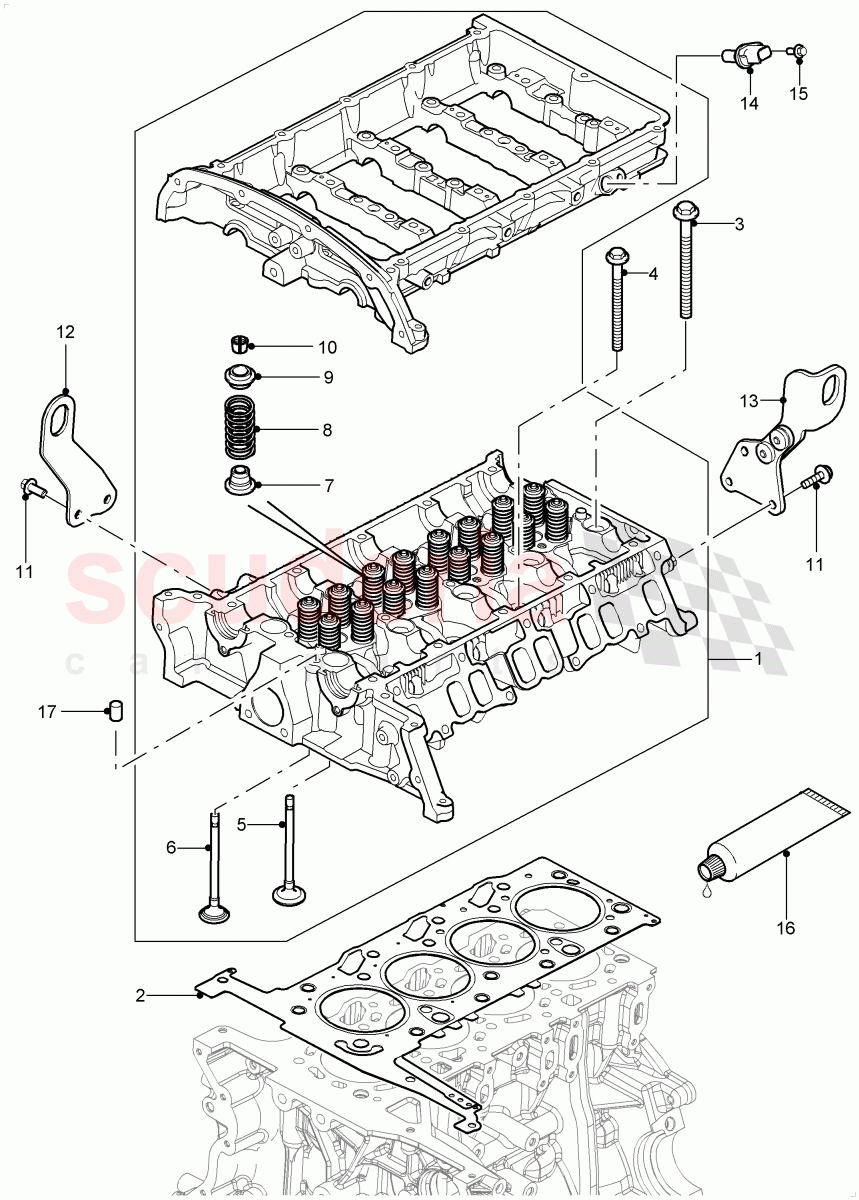

Land Rover Defender (2007-2016) - Cylinder Head (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR029711	CYLINDER HEAD	$1,061.72	To Order
	LR037049	CYLINDER HEAD	$2,458.25	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029712	GASKET-CYLINDER HEAD	$118.79	To Order
	LR029713	GASKET-CYLINDER HEAD	$118.79	To Order
	LR029714	GASKET-CYLINDER HEAD	$118.79	To Order

...and 3 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR022163	BOLT - HEX.HEAD	$23.79	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004370	BOLT - CYLINDER HEAD	$9.75	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032065	VALVE - INLET	$95.88	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029317	VALVE - EXHAUST	$74.62	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005901	SEAL - VALVE STEM	$1.97	To Order
	LR058096	SEAL - VALVE STEM	$9.56	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031454	SPRING - VALVE	$4.27	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004376	RETAINER - VALVE SPRING	$11.53	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004433	COLLET - VALVE SPRING RETAINER	$16.36	To Order

Photo	Part No	Description	Price (each)	Stock
	FT108206	BOLT - HEX.HEAD	$4.20	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005747	BRACKET - ENGINE LIFTING	$35.70	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029716	BRACKET - ENGINE LIFTING	$35.93	To Order
	LR034121	BRACKET - ENGINE LIFTING	$37.72	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004492	SENSOR - CAMSHAFT POSITION	$84.86	To Order
	LR041120	SENSOR - CAMSHAFT POSITION	$84.27	To Order
	LR048186	SENSOR - CAMSHAFT POSITION	$208.73	To Order

Photo	Part No	Description	Price (each)	Stock
	4380670	SCREW	$0.73	To Order

Photo	Part No	Description	Price (each)	Stock
	STC50550	SEALER - ADHESIVE PAN/ENGINE	$20.10	To Order

Photo	Part No	Description	Price (each)	Stock
	LR049403	DOWEL	$10.27	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR029711	CYLINDER HEAD	LR029711 CYLINDER HEAD With Valves / To: CA444443	$1,061.72	1
1	LR037049	CYLINDER HEAD	LR037049 CYLINDER HEAD With Valves / From: CA444444	$2,458.25	1
2	LR029712	GASKET-CYLINDER HEAD	LR029712 GASKET-CYLINDER HEAD 1 Tooth / To: CA555554	$118.79	1
2	LR029713	GASKET-CYLINDER HEAD	LR029713 GASKET-CYLINDER HEAD 2 Teeth / To: CA555554	$118.79	1
2	LR029714	GASKET-CYLINDER HEAD	LR029714 GASKET-CYLINDER HEAD 3 Teeth / To: CA555554	$118.79	1
2	LR040897	GASKET-CYLINDER HEAD	LR040897 GASKET-CYLINDER HEAD 1 Tooth / From: CA555555	$113.94	1
2	LR040898	GASKET-CYLINDER HEAD	LR040898 GASKET-CYLINDER HEAD 2 Teeth / From: CA555555	$113.94	1
2	LR040899	GASKET-CYLINDER HEAD	LR040899 GASKET-CYLINDER HEAD 3 Teeth / From: CA555555	$113.94	1
3	LR022163	BOLT - HEX.HEAD	LR022163 BOLT - HEX.HEAD M10 x 140MM	$23.79	10
4	LR004370	BOLT - CYLINDER HEAD	LR004370 BOLT - CYLINDER HEAD M8 x 120MM	$9.75	8
5	LR032065	VALVE - INLET	LR032065 VALVE - INLET	$95.88	8
6	LR029317	VALVE - EXHAUST	LR029317 VALVE - EXHAUST	$74.62	8
7	LR005901	SEAL - VALVE STEM	LR005901 SEAL - VALVE STEM To: DA444246	$1.97	16
7	LR058096	SEAL - VALVE STEM	LR058096 SEAL - VALVE STEM From: DA444247	$9.56	16
8	LR031454	SPRING - VALVE	LR031454 SPRING - VALVE	$4.27	16
9	LR004376	RETAINER - VALVE SPRING	LR004376 RETAINER - VALVE SPRING	$11.53	16
10	LR004433	COLLET - VALVE SPRING RETAINER	LR004433 COLLET - VALVE SPRING RETAINER	$16.36	32
11	FT108206	BOLT - HEX.HEAD	FT108206 BOLT - HEX.HEAD M8 X 20MM	$4.20	4
12	LR005747	BRACKET - ENGINE LIFTING	LR005747 BRACKET - ENGINE LIFTING Front	$35.70	1
13	LR029716	BRACKET - ENGINE LIFTING	LR029716 BRACKET - ENGINE LIFTING Rear / To: CA500001	$35.93	1
13	LR034121	BRACKET - ENGINE LIFTING	LR034121 BRACKET - ENGINE LIFTING Rear / From: CA500002	$37.72	1
14	LR004492	SENSOR - CAMSHAFT POSITION	LR004492 SENSOR - CAMSHAFT POSITION To: CA420896	$84.86	1
14	LR041120	SENSOR - CAMSHAFT POSITION	LR041120 SENSOR - CAMSHAFT POSITION From: CA420897 / To: DA431428	$84.27	1
14	LR048186	SENSOR - CAMSHAFT POSITION	LR048186 SENSOR - CAMSHAFT POSITION From: DA431429	$208.73	1
15	4380670	SCREW	4380670 SCREW M6X16	$0.73	1
16	STC50550	SEALER - ADHESIVE PAN/ENGINE	STC50550 SEALER - ADHESIVE PAN/ENGINE Use As Required	$20.10	-
17	LR049403	DOWEL	LR049403 DOWEL	$10.27	2
