Oil Cooler And Filter (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)

Find Your Part

Land Rover Defender (2007-2016) - Oil Cooler And Filter (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR029928 ADAPTOR - OIL FILTER Enquire To Order
LR058091 ADAPTOR - OIL FILTER Enquire To Order
Photo Part No Description Price (each) Stock
LR030778 FILTER - OIL - ELEMENT AND SEAL Enquire To Order
LR058104 FILTER - OIL Enquire To Order
Photo Part No Description Price (each) Stock
LR004508 COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR004410 SWITCH - OIL PRESSURE Enquire To Order
Photo Part No Description Price (each) Stock
LR029933 HOSE - WATER Enquire To Order
LR037958 HOSE - WATER Enquire To Order
LR058090 HOSE - WATER Enquire To Order
Photo Part No Description Price (each) Stock
LR029936 CONNECTION - WATER OUTLET Enquire To Order
Photo Part No Description Price (each) Stock
LR004447 SEAL - OIL COOLER Enquire To Order
LR058105 SEAL - OIL COOLER Enquire To Order
Photo Part No Description Price (each) Stock
4378449 SCREW Enquire To Order
Photo Part No Description Price (each) Stock
FS108252 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR004315 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR004503 CLIP Enquire To Order
View All

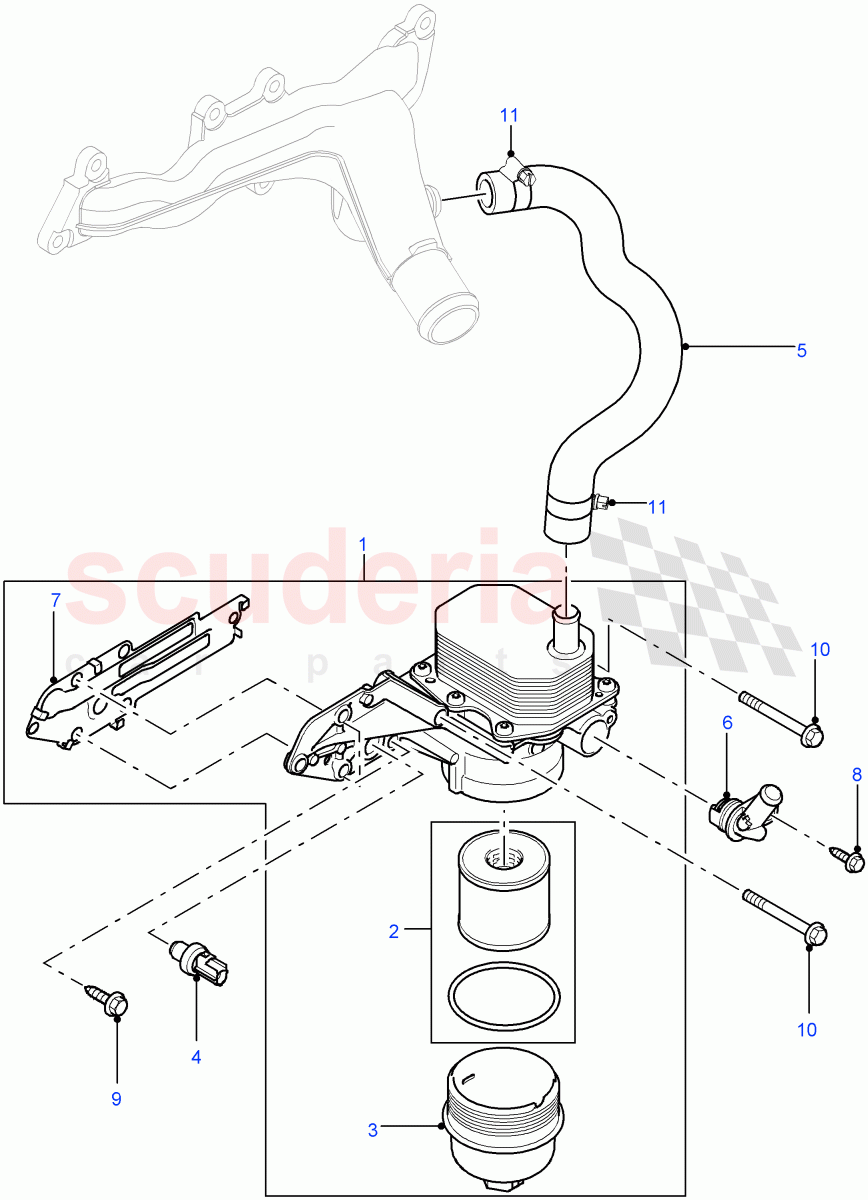

Oil Cooler And Filter (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR029928
ADAPTOR - OIL FILTER
To: DA444246 		- 1 Enquire
1 LR058091
ADAPTOR - OIL FILTER
From: DA444247 		- 1 Enquire
2 LR030778
FILTER - OIL - ELEMENT AND SEAL
Cartridge Type / To: DA444246 		- 1 Enquire
2 LR058104
FILTER - OIL
Metal Type / From: DA444247 		- 1 Enquire
3 LR004508
COVER 		- 1 Enquire
4 LR004410
SWITCH - OIL PRESSURE 		- 1 Enquire
5 LR029933
HOSE - WATER
To: CA444443 		- 1 Enquire
5 LR037958
HOSE - WATER
From: CA444444 / To: DA444246 		- 1 Enquire
5 LR058090
HOSE - WATER
From: DA444247 		- 1 Enquire
6 LR029936
CONNECTION - WATER OUTLET 		- 1 Enquire
7 LR004447
SEAL - OIL COOLER
To: DA444246 		- 1 Enquire
7 LR058105
SEAL - OIL COOLER
From: DA444247 		- 1 Enquire
8 4378449
SCREW
M6 x 25MM 		- 1 Enquire
9 FS108252
BOLT - HEX.HEAD
M8 X 25MM 		- 4 Enquire
10 LR004315
BOLT
M8 x 75 		- 2 Enquire
11 LR004503
CLIP 		- 2 Enquire
