Cylinder Head Cover (2.4L Duratorq-Tdci Hpcr (140Ps) -Puma) ((V) From7A000001, (V) Toba999999)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Cylinder Head Cover (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR007754 COVER - CAMSHAFT Enquire To Order
Photo Part No Description Price (each) Stock
LR004440 GASKET Enquire To Order
Photo Part No Description Price (each) Stock
LR004269 CAP - OIL FILLER Enquire To Order
Photo Part No Description Price (each) Stock
LR004397 GROMMET - VALVE COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR004395 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR004424 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR012480 COVER Enquire To Order
Photo Part No Description Price (each) Stock
LR004650 RETAINER Enquire To Order
LR019663 RETAINER Enquire To Order
Photo Part No Description Price (each) Stock
LR006031 COVER Enquire To Order
Photo Part No Description Price (each) Stock
LBH500370 COVERING - PROTECTIVE Enquire To Order
Photo Part No Description Price (each) Stock
FS106206 SCREW Enquire To Order
View All

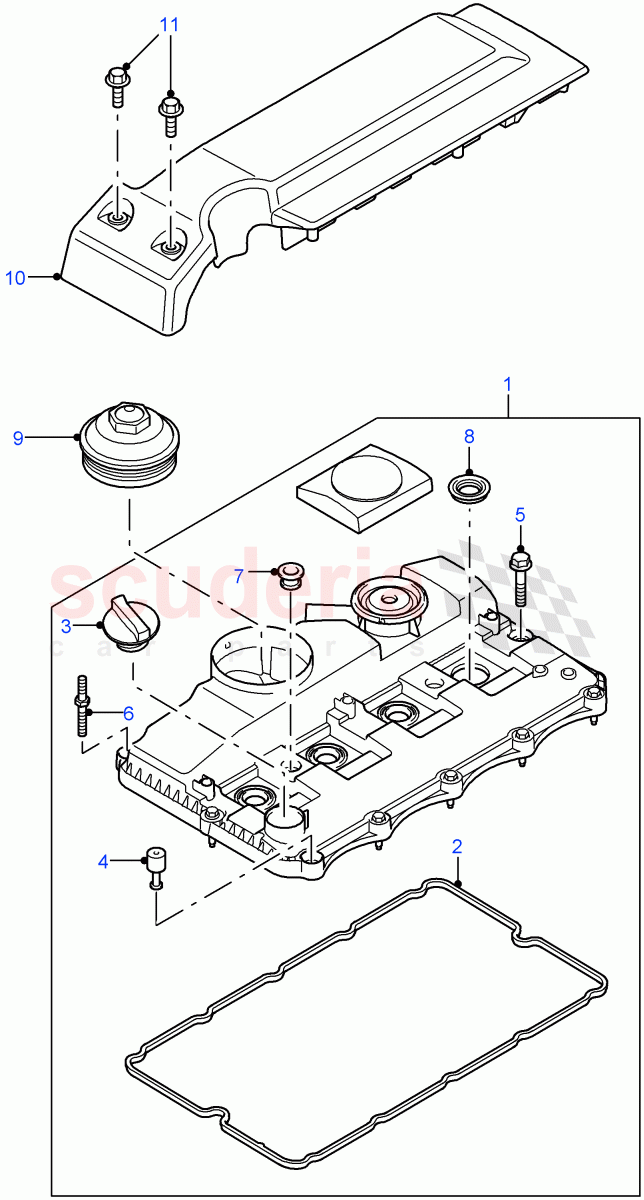

Cylinder Head Cover (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR007754
COVER - CAMSHAFT 		- 1 Enquire
2 LR004440
GASKET 		- 1 Enquire
3 LR004269
CAP - OIL FILLER 		- 1 Enquire
4 LR004397
GROMMET - VALVE COVER 		- 1 Enquire
5 LR004395
BOLT - HEX.HEAD 		- 10 Enquire
6 LR004424
BOLT - HEX.HEAD 		- 1 Enquire
7 LR012480
COVER 		- 2 Enquire
8 LR004650
RETAINER
To: 7A999999 		- 4 Enquire
8 LR019663
RETAINER
From: 8A000001 		- 4 Enquire
9 LR006031
COVER 		- 1 Enquire
10 LBH500370
COVERING - PROTECTIVE 		- 1 Enquire
11 FS106206
SCREW
Flanged Head, M6 X 20MM 		- 2 Enquire
