Name: Clutch And Flywheel ((V) FROM7A000001)
Rating: 4.8 (1 reviews)

View All

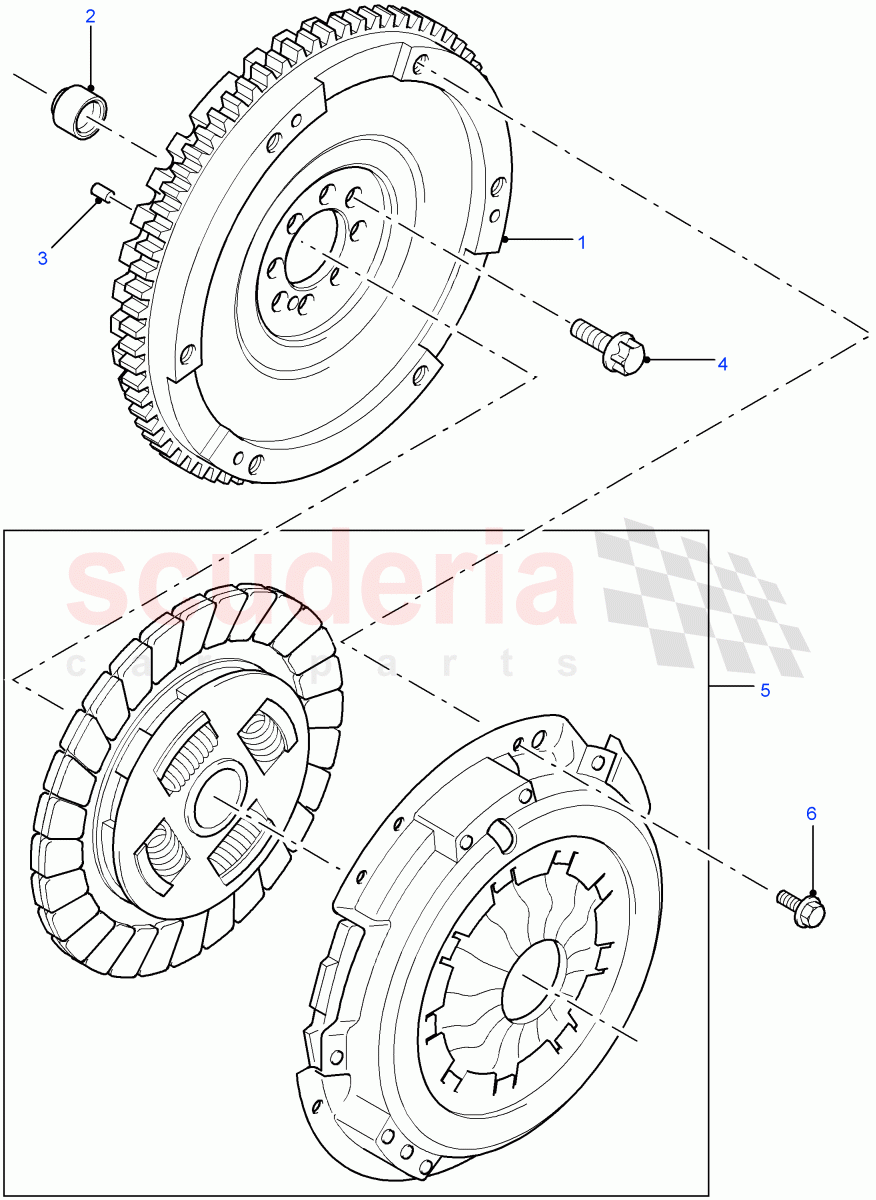

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004390	SLEEVE	$106.76	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004357	DOWEL - PIN	$9.32	To Order

...and 1 more part variants. See table on right for more details.

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR006953	FLYWHEEL	LR006953 FLYWHEEL To: BA401519	$942.54	1
1	LR031818	FLYWHEEL	LR031818 FLYWHEEL From: CA000001	$878.73	1
1	LR033026	FLYWHEEL	LR033026 FLYWHEEL From: BA401520 / To: BA999999	$942.54	1
2	LR004390	SLEEVE	LR004390 SLEEVE	$106.76	1
3	LR004357	DOWEL - PIN	LR004357 DOWEL - PIN	$9.32	1
4	LR004373	BOLT - HEX.HEAD	LR004373 BOLT - HEX.HEAD To: CA425941	$6.97	8
4	LR045965	BOLT - HEX.HEAD	LR045965 BOLT - HEX.HEAD From: CA425942	$3.77	8
5	LR012199	KIT - CLUTCH REPAIR	LR012199 KIT - CLUTCH REPAIR To: BA401552	$542.58	1
5	LR048731	KIT - CLUTCH REPAIR	LR048731 KIT - CLUTCH REPAIR From: DA432441	$514.90	1
5	LR029894	CLUTCH	LR029894 CLUTCH Alternative Part	$556.31	1
5	LR037956	KIT - CLUTCH REPAIR	LR037956 KIT - CLUTCH REPAIR From: BA401553 / To: DA432440	$480.81	1
6	URC000030	BOLT - HEX.HEAD IN STOCK	URC000030 BOLT - HEX.HEAD M8 x 13MM / To: BA999999 IN STOCK	$1.49	6
6	LR030000	BOLT	LR030000 BOLT M8 X 16MM / From: CA000001	$3.88	6

Clutch And Flywheel ((V) From7A000001)

Land Rover Defender (2007-2016)
