Cylinder Head Cover (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Cylinder Head Cover (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)

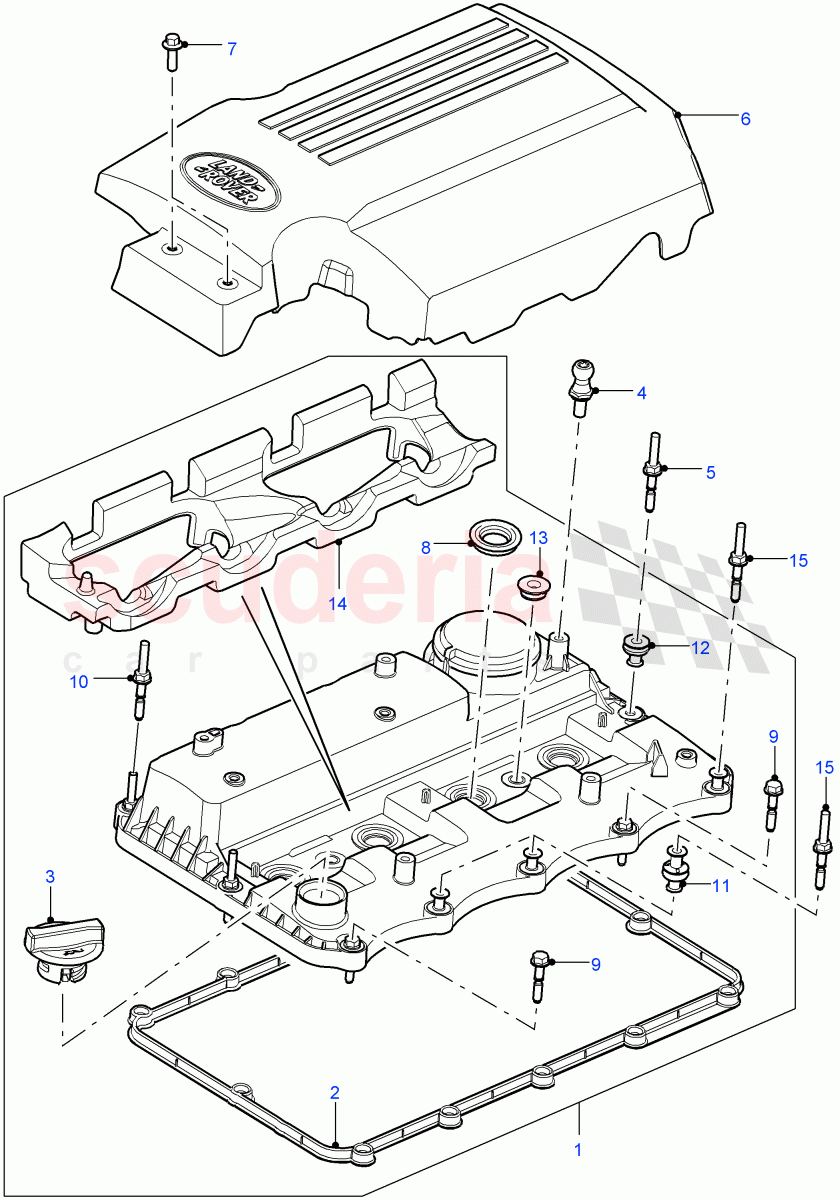

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR031366	COVER - CYLINDER HEAD	Enquire	To Order
	LR037650	COVER - CYLINDER HEAD	Enquire	To Order
	LR041124	COVER - CYLINDER HEAD	Enquire	To Order

...and 2 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR037689	GASKET - CYLINDER HEAD COVER	Enquire	To Order
	LR058092	GASKET - CYLINDER HEAD COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004269	CAP - OIL FILLER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031825	STUD - SPECIAL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029708	STUD	Enquire	To Order
	LR046411	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029710	COVERING - PROTECTIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS106206	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037698	GROMMET - FUEL INJECTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037686	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037687	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037688	GROMMET - VALVE COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037694	BUSH - CAMSHAFT COVER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037736	SEAL - FUEL INJECTOR BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037685	Insulator - Fuel Supply	Enquire	To Order
	LR043159	INSULATOR - FUEL SUPPLY	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR037703	STUD	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	LR031366	COVER - CYLINDER HEAD	LR031366 COVER - CYLINDER HEAD To: CA222221	-	1	Enquire
1	LR037650	COVER - CYLINDER HEAD	LR037650 COVER - CYLINDER HEAD From: CA222222 / To: CA333332	-	1	Enquire
1	LR041124	COVER - CYLINDER HEAD	LR041124 COVER - CYLINDER HEAD From: CA333333 / To: CA444443	-	1	Enquire
1	LR043158	COVER - CYLINDER HEAD	LR043158 COVER - CYLINDER HEAD From: CA444444 / To: DA444246	-	1	Enquire
1	LR058093	COVER - CYLINDER HEAD	LR058093 COVER - CYLINDER HEAD From: DA444247	-	1	Enquire
2	LR037689	GASKET - CYLINDER HEAD COVER	LR037689 GASKET - CYLINDER HEAD COVER To: DA444246	-	1	Enquire
2	LR058092	GASKET - CYLINDER HEAD COVER	LR058092 GASKET - CYLINDER HEAD COVER From: DA444247	-	1	Enquire
3	LR004269	CAP - OIL FILLER	LR004269 CAP - OIL FILLER	-	1	Enquire
4	LR031825	STUD - SPECIAL	LR031825 STUD - SPECIAL	-	1	Enquire
5	LR029708	STUD	LR029708 STUD To: DA430110	-	1	Enquire
5	LR046411	STUD	LR046411 STUD From: DA430111	-	1	Enquire
6	LR029710	COVERING - PROTECTIVE	LR029710 COVERING - PROTECTIVE	-	1	Enquire
7	FS106206	SCREW	FS106206 SCREW Flanged Head, M6 X 20MM	-	2	Enquire
8	LR037698	GROMMET - FUEL INJECTOR	LR037698 GROMMET - FUEL INJECTOR	-	4	Enquire
9	LR037686	BOLT - HEX.HEAD	LR037686 BOLT - HEX.HEAD	-	5	Enquire
10	LR037687	STUD	LR037687 STUD	-	3	Enquire
11	LR037688	GROMMET - VALVE COVER	LR037688 GROMMET - VALVE COVER	-	3	Enquire
12	LR037694	BUSH - CAMSHAFT COVER	LR037694 BUSH - CAMSHAFT COVER	-	1	Enquire
13	LR037736	SEAL - FUEL INJECTOR BOLT	LR037736 SEAL - FUEL INJECTOR BOLT	-	2	Enquire
14	LR037685	Insulator - Fuel Supply	LR037685 Insulator - Fuel Supply To: CA444443	-	1	Enquire
14	LR043159	INSULATOR - FUEL SUPPLY	LR043159 INSULATOR - FUEL SUPPLY From: CA444444	-	1	Enquire
15	LR037703	STUD	LR037703 STUD	-	3	Enquire
