Name: Alternator (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)
Rating: 5.0 (1 reviews)

View All

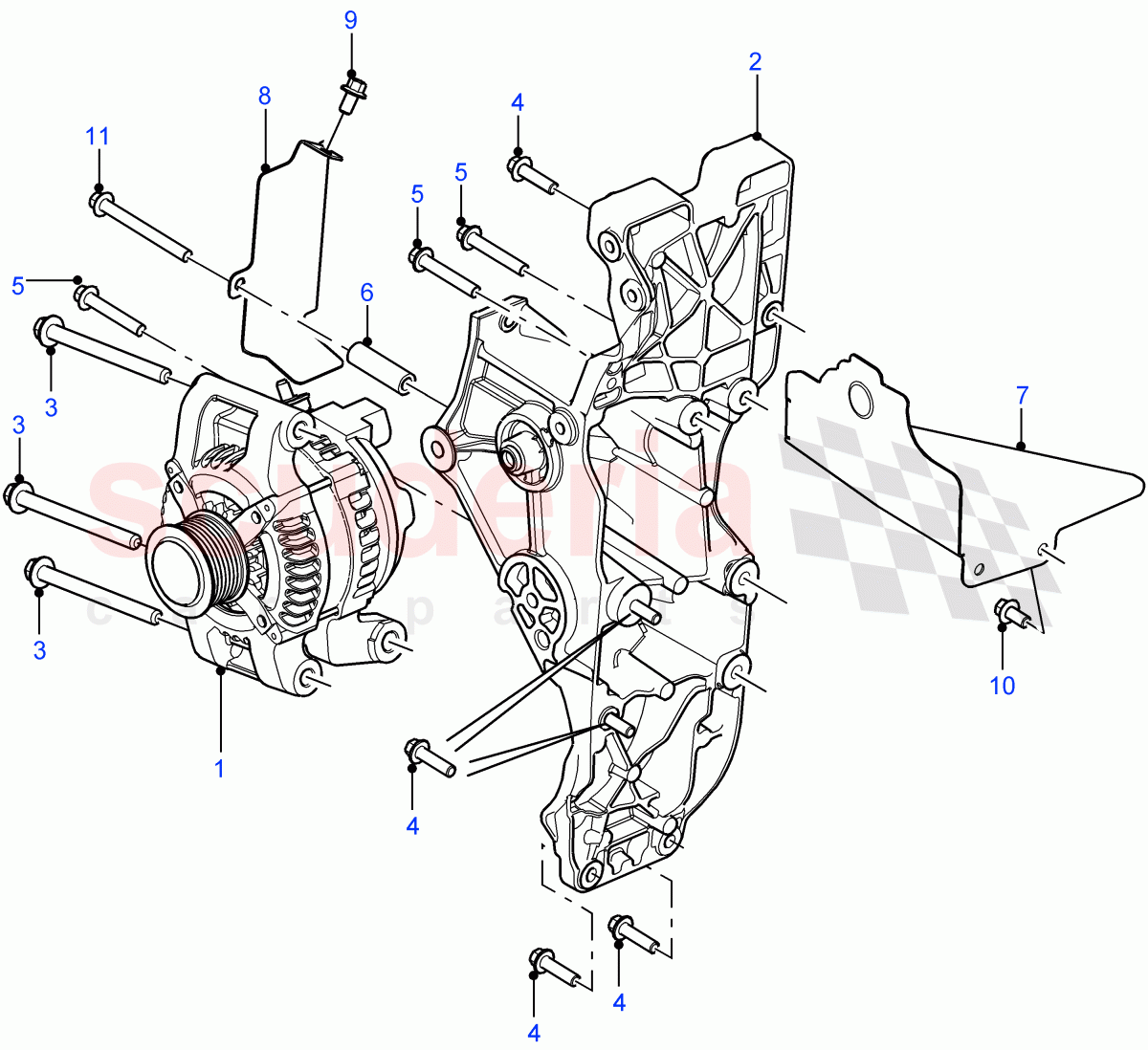

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR029981	ALTERNATOR	$944.21	To Order

Photo	Part No	Description	Price (each)	Stock
	LR031362	BRACKET - ALTERNATOR	$126.63	To Order

Photo	Part No	Description	Price (each)	Stock
	FB110226	BOLT - HEX.HEAD	$2.32	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108307L	SCREW	$2.61	To Order

Photo	Part No	Description	Price (each)	Stock
	FB108106	BOLT	$10.49	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029982	SPACER	$7.05	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029990	HEAT SHIELD	$29.90	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029905	HEAT SHIELD	$12.87	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108146	SCREW	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108166	BOLT	$0.63	IN STOCK

Photo	Part No	Description	Price (each)	Stock
	FB108206	BOLT - FLANGED HEX.	$4.03	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR029981	ALTERNATOR	LR029981 ALTERNATOR	$944.21	1
2	LR031362	BRACKET - ALTERNATOR	LR031362 BRACKET - ALTERNATOR	$126.63	1
3	FB110226	BOLT - HEX.HEAD	FB110226 BOLT - HEX.HEAD M10 x 110	$2.32	3
4	FS108307L	SCREW	FS108307L SCREW M8 X 30	$2.61	5
5	FB108106	BOLT	FB108106 BOLT M8 X 50	$10.49	4
6	LR029982	SPACER	LR029982 SPACER	$7.05	1
7	LR029990	HEAT SHIELD	LR029990 HEAT SHIELD Alternator	$29.90	1
8	LR029905	HEAT SHIELD	LR029905 HEAT SHIELD Alternator, Lower	$12.87	1
9	FS108146	SCREW	FS108146 SCREW M8 X 14MM	$0.63	1
10	FS108166	BOLT IN STOCK	FS108166 BOLT M8 X 16MM IN STOCK	$0.63	3
11	FB108206	BOLT - FLANGED HEX.	FB108206 BOLT - FLANGED HEX. M8 x 100MM	$4.03	1

Alternator (2.2L 16V Tc I4 Dsl 122Ps Puma) ((V) Fromca000001)

Land Rover Defender (2007-2016)
