Crankshaft/Pistons And Bearings (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016)

View All

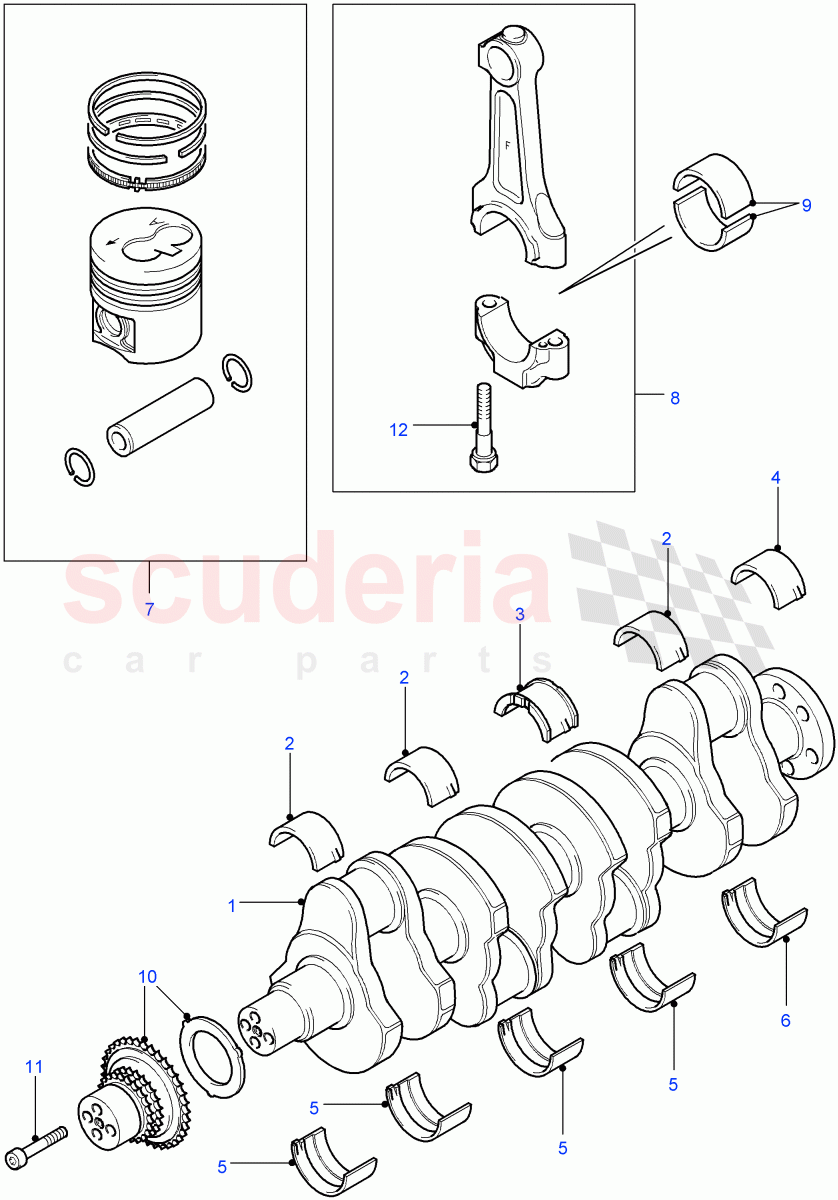

Land Rover Defender (2007-2016) - Crankshaft/Pistons And Bearings (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR019400	CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019685	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR038406	BEARING - CRANKSHAFT MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019686	BEARING - CRANKSHAFT MAIN THRUST	Enquire	To Order
	LR038296	BEARING - CRANKSHAFT MAIN THRUST	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019688	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR038396	BEARING - CRANKSHAFT MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019687	BEARING - CRANKSHAFT MAIN	Enquire	To Order
	LR038395	BEARING - CRANKSHAFT MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR019689	BEARING - CRANKSHAFT MAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NSP	Piston, Pin And Ring	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022165	ROD - CONNECTING	Enquire	To Order
	LR022166	ROD - CONNECTING	Enquire	To Order
	LR022167	ROD - CONNECTING	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR004411	BEARING - CONNECTING ROD	Enquire	To Order
	LR033020	BEARING - CONNECTING ROD	Enquire	To Order
	LR041319	BEARING - CONNECTING ROD	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR020402	GEAR - CRANKSHAFT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004366	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR022161	BOLT - SPECIAL	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	LR019400	CRANKSHAFT	LR019400 CRANKSHAFT	-	1	Enquire
2	LR019685	BEARING - CRANKSHAFT MAIN	LR019685 BEARING - CRANKSHAFT MAIN Front, Standard, Upper	-	3	Enquire
2	LR038406	BEARING - CRANKSHAFT MAIN	LR038406 BEARING - CRANKSHAFT MAIN 0.25mm oversize, Front, Upper	-	3	Enquire
3	LR019686	BEARING - CRANKSHAFT MAIN THRUST	LR019686 BEARING - CRANKSHAFT MAIN THRUST Centre, Upper / To: CA555554	-	1	Enquire
3	LR038296	BEARING - CRANKSHAFT MAIN THRUST	LR038296 BEARING - CRANKSHAFT MAIN THRUST Centre, Upper / From: CA555555	-	1	Enquire
4	LR019688	BEARING - CRANKSHAFT MAIN	LR019688 BEARING - CRANKSHAFT MAIN Rear, Standard, Upper	-	1	Enquire
4	LR038396	BEARING - CRANKSHAFT MAIN	LR038396 BEARING - CRANKSHAFT MAIN 0.25mm oversize, Rear, Upper	-	1	Enquire
5	LR019687	BEARING - CRANKSHAFT MAIN	LR019687 BEARING - CRANKSHAFT MAIN Lower, Standard	-	4	Enquire
5	LR038395	BEARING - CRANKSHAFT MAIN	LR038395 BEARING - CRANKSHAFT MAIN 0.25mm oversize, Lower	-	4	Enquire
6	LR019689	BEARING - CRANKSHAFT MAIN	LR019689 BEARING - CRANKSHAFT MAIN Lower, Rear	-	1	Enquire
7	NSP	Piston, Pin And Ring	NSP Piston, Pin And Ring Serviced Only In Short Block Or Complete Engine Assy	-	-	Enquire
8	LR022165	ROD - CONNECTING	LR022165 ROD - CONNECTING Grade E	-	4	Enquire
8	LR022166	ROD - CONNECTING	LR022166 ROD - CONNECTING Grade F / To: FA999999	-	4	Enquire
8	LR022167	ROD - CONNECTING	LR022167 ROD - CONNECTING Grade G	-	4	Enquire
8	LR138367	ROD - CONNECTING	LR138367 ROD - CONNECTING Grade F / From: GA000001	-	4	Enquire
9	LR004411	BEARING - CONNECTING ROD	LR004411 BEARING - CONNECTING ROD Standard / To: CA422221	-	8	Enquire
9	LR033020	BEARING - CONNECTING ROD	LR033020 BEARING - CONNECTING ROD 0.25mm oversize / From: CA422221	-	8	Enquire
9	LR041319	BEARING - CONNECTING ROD	LR041319 BEARING - CONNECTING ROD Standard / From: CA422222	-	8	Enquire
9	LR043519	BEARING - CONNECTING ROD	LR043519 BEARING - CONNECTING ROD 0.25mm oversize / From: CA422222	-	8	Enquire
10	LR020402	GEAR - CRANKSHAFT	LR020402 GEAR - CRANKSHAFT	-	1	Enquire
11	LR004366	SCREW	LR004366 SCREW	-	1	Enquire
12	LR022161	BOLT - SPECIAL	LR022161 BOLT - SPECIAL	-	8	Enquire
