Fuel Injection Pump (2.2L 16V Tc I4 Dsl 122Ps Puma) ((V) Fromca000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Fuel Injection Pump (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
LR029969 PUMP - FUEL INJECTION Enquire To Order
LR078821 PUMP - FUEL INJECTION Enquire To Order
LR086834 PUMP - FUEL INJECTION Enquire To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
LR004363 BOLT Enquire To Order
Photo Part No Description Price (each) Stock
LR045359 RING Enquire To Order
Photo Part No Description Price (each) Stock
LR045360 VALVE - FUEL VAPOUR Enquire To Order
LR079825 VALVE - FUEL VAPOUR Enquire To Order
Photo Part No Description Price (each) Stock
LR007471 BOLT - HEX.HEAD Enquire To Order
Photo Part No Description Price (each) Stock
LR029970 BRACKET Enquire To Order
Photo Part No Description Price (each) Stock
LR045361 SENSOR - FUEL TEMPERATURE Enquire To Order
Photo Part No Description Price (each) Stock
LR050801 BOLT Enquire To Order
View All

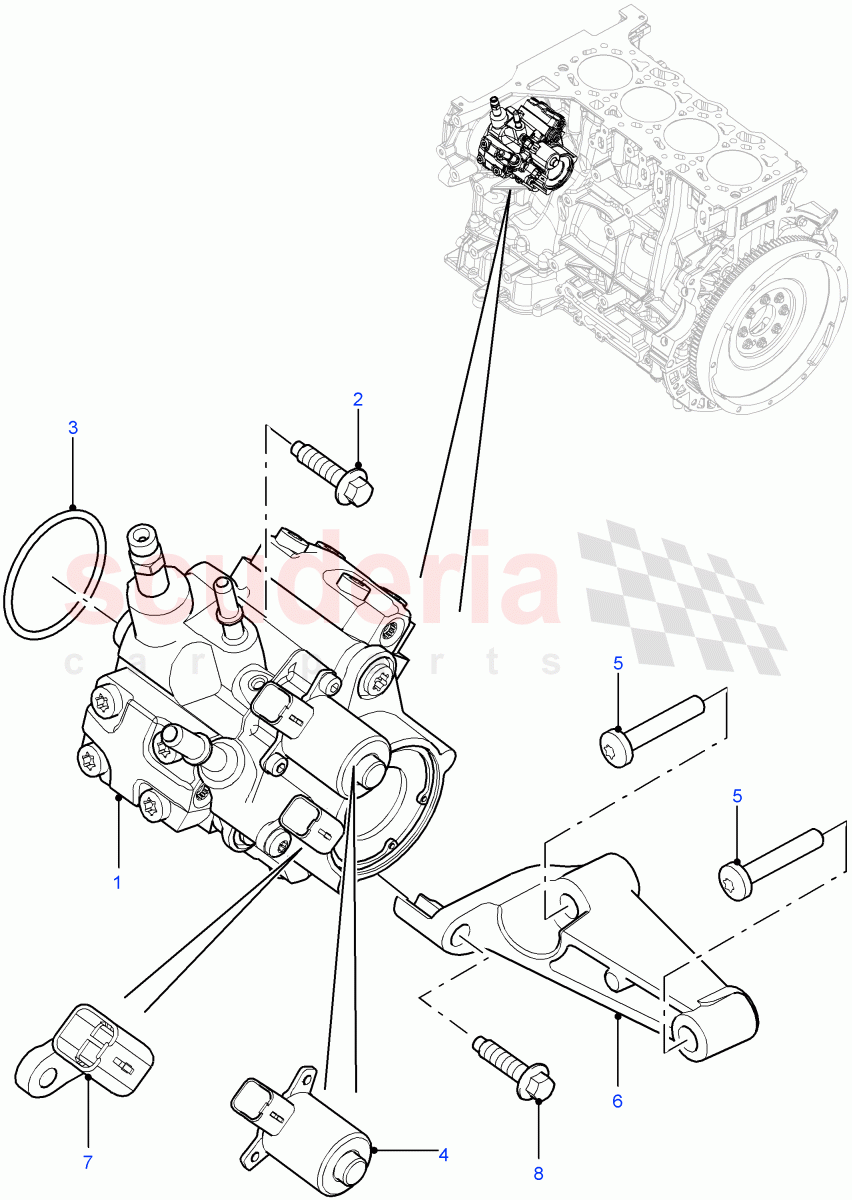

Fuel Injection Pump (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 LR029969
PUMP - FUEL INJECTION
New / To: DA444256 		- 1 Enquire
1 LR078821
PUMP - FUEL INJECTION
New / From: DA444257 / To: EA999999 		- 1 Enquire
1 LR086834
PUMP - FUEL INJECTION
New / From: FA000001 / To: FA999999 		- 1 Enquire
1 LR095811
PUMP - FUEL INJECTION
New / From: GA000001 		- 1 Enquire
2 LR004363
BOLT
M8 X 30MM 		- 2 Enquire
3 LR045359
RING 		- 1 Enquire
4 LR045360
VALVE - FUEL VAPOUR
To: DA444256 		- 1 Enquire
4 LR079825
VALVE - FUEL VAPOUR
From: DA444257 		- 1 Enquire
5 LR007471
BOLT - HEX.HEAD
M8 X 45MM 		- 2 Enquire
6 LR029970
BRACKET
Fuel Injection Pump 		- 1 Enquire
7 LR045361
SENSOR - FUEL TEMPERATURE 		- 1 Enquire
8 LR050801
BOLT
M8 x 38MM 		- 1 Enquire
