Oil Pan/Oil Level Indicator (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V) TOBA999999) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Oil Pan/Oil Level Indicator (2.4L Duratorq-TDCi HPCR (140PS) -Puma) ((V) FROM7A000001, (V)...

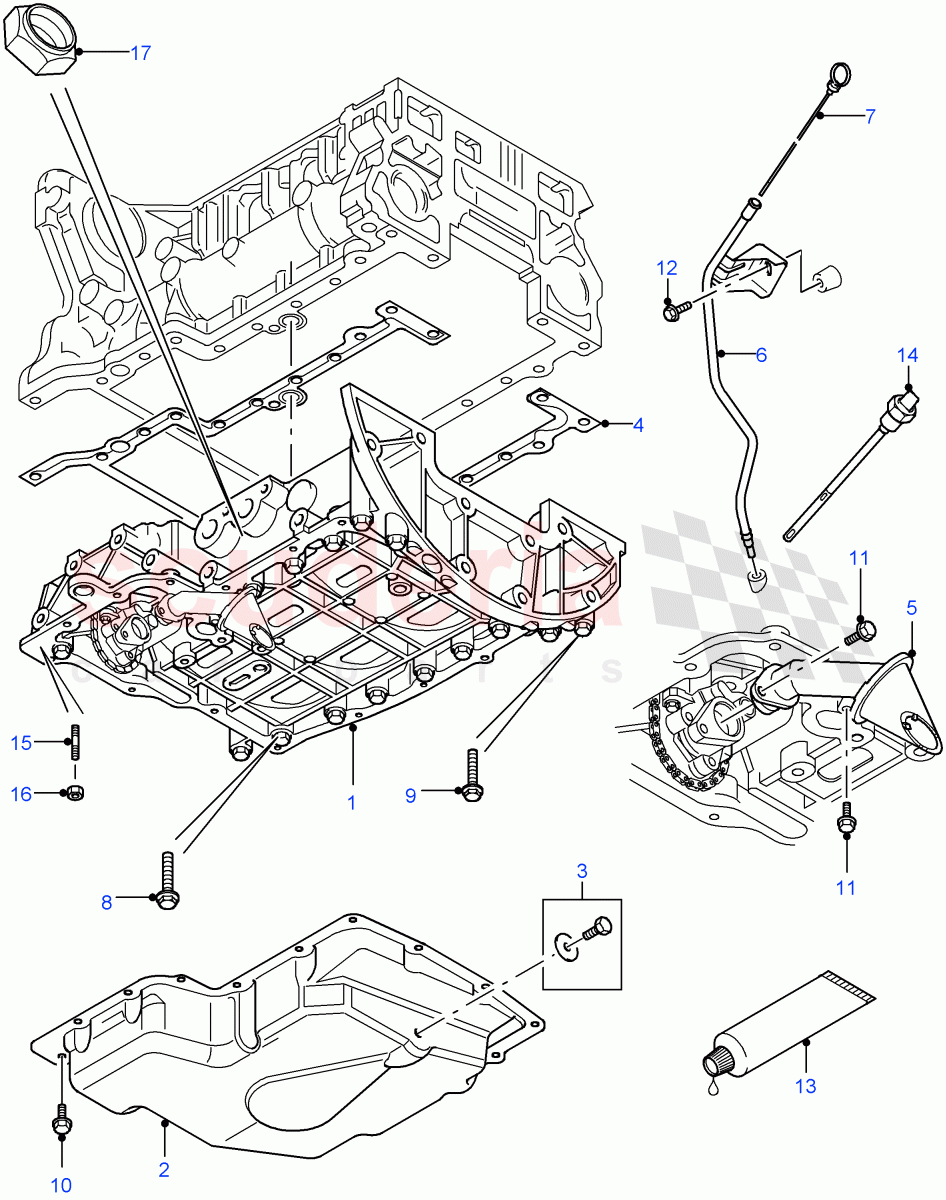

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR004451	STIFFENER	Enquire	To Order
	LR007520	STIFFENER	Enquire	To Order
	LR008977	STIFFENER	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	LR007598	PAN - ENGINE OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR073675	PLUG - OIL DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004409	GASKET - OIL PAN	Enquire	To Order
	LR006957	GASKET - OIL PAN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004387	TUBE - OIL PUMP INLET	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LQN500050	TUBE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LQM500070	INDICATOR - OIL LEVEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004336	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4469260	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004337	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4558527	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108206	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	STC50550	SEALER - ADHESIVE PAN/ENGINE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005905	SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004354	STUD	Enquire	To Order
	LR005629	STUD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004344	NUT - HEX. - FLANGED	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004617	PLUG	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	LR004451	STIFFENER	LR004451 STIFFENER To: 7A999999	-	1	Enquire
1	LR007520	STIFFENER	LR007520 STIFFENER From: 8A000001 / To: 9A999999	-	1	Enquire
1	LR008977	STIFFENER	LR008977 STIFFENER From: AA000001 / To: AA999999	-	1	Enquire
1	LR146345	STIFFENER	LR146345 STIFFENER From: BA000001	-	1	Enquire
2	LR007598	PAN - ENGINE OIL	LR007598 PAN - ENGINE OIL	-	1	Enquire
3	LR073675	PLUG - OIL DRAIN	LR073675 PLUG - OIL DRAIN	-	1	Enquire
4	LR004409	GASKET - OIL PAN	LR004409 GASKET - OIL PAN To: 7A999999	-	1	Enquire
4	LR006957	GASKET - OIL PAN	LR006957 GASKET - OIL PAN From: 8A000001	-	1	Enquire
5	LR004387	TUBE - OIL PUMP INLET	LR004387 TUBE - OIL PUMP INLET	-	1	Enquire
6	LQN500050	TUBE	LQN500050 TUBE	-	1	Enquire
7	LQM500070	INDICATOR - OIL LEVEL	LQM500070 INDICATOR - OIL LEVEL	-	1	Enquire
8	LR004336	BOLT	LR004336 BOLT M8 x 80MM	-	-	Enquire
9	4469260	BOLT	4469260 BOLT M8 X 35MM	-	3	Enquire
10	LR004337	SCREW	LR004337 SCREW M6 X 16MM	-	11	Enquire
11	4558527	SCREW	4558527 SCREW M6 X 20MM	-	2	Enquire
12	FS108206	BOLT	FS108206 BOLT M8 X 20MM	-	1	Enquire
13	STC50550	SEALER - ADHESIVE PAN/ENGINE	STC50550 SEALER - ADHESIVE PAN/ENGINE Use As Required	-	-	Enquire
14	LR005905	SENSOR	LR005905 SENSOR	-	1	Enquire
15	LR004354	STUD	LR004354 STUD M6 X 12-M6 X 13.8 / To: 7A999999	-	5	Enquire
15	LR005629	STUD	LR005629 STUD M6 X 12-M6 X 13.8 / From: 8A000001	-	5	Enquire
16	LR004344	NUT - HEX. - FLANGED	LR004344 NUT - HEX. - FLANGED M6	-	5	Enquire
17	LR004617	PLUG	LR004617 PLUG	-	1	Enquire
