Cylinder Block And Plugs (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Cylinder Block And Plugs (2.2L 16V TC I4 DSL 122PS PUMA) ((V) FROMCA000001)

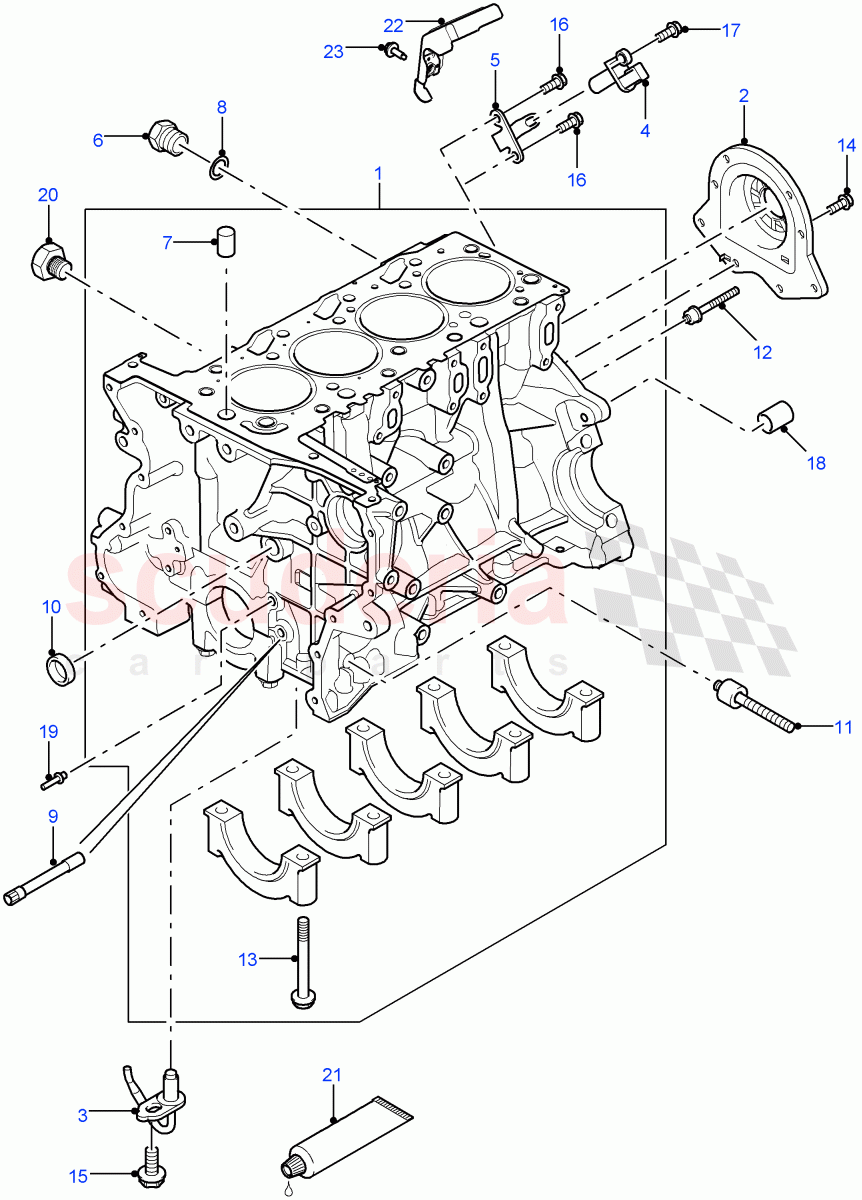

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	LR029697	CYLINDER BLOCK	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020609	SEAL - CRANKSHAFT OIL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029698	VALVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR029706	SENSOR - CRANKSHAFT POSITION - CPS	Enquire	To Order
	LR056258	SENSOR - CRANKSHAFT POSITION - CPS	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR020051	POINTER - IGNITION TIMING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006040	PLUG - DRAIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004348	DOWEL - BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	4640315	SEAL - PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004632	FILTER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR005628	NUT - EXPANSION	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR003600	RIVET - BLIND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004820	PLUG - BLANKING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004414	BOLT - BEARING CAP - HEX. HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032066	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004346	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004333	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004349	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	TYT500020	DOWEL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR006737	RIVET - BLIND	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR004616	PLUG	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	STC50552	ADHESIVE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	LR032880	HEAT SHIELD - CRANKSHAFT POS. SENSOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYG500980	SCREW AND WASHER	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	LR029697	CYLINDER BLOCK	LR029697 CYLINDER BLOCK	-	1	Enquire
2	LR020609	SEAL - CRANKSHAFT OIL	LR020609 SEAL - CRANKSHAFT OIL	-	1	Enquire
3	LR029698	VALVE	LR029698 VALVE	-	4	Enquire
4	LR029706	SENSOR - CRANKSHAFT POSITION - CPS	LR029706 SENSOR - CRANKSHAFT POSITION - CPS To: DA441311	-	1	Enquire
4	LR056258	SENSOR - CRANKSHAFT POSITION - CPS	LR056258 SENSOR - CRANKSHAFT POSITION - CPS From: DA441312	-	1	Enquire
5	LR020051	POINTER - IGNITION TIMING	LR020051 POINTER - IGNITION TIMING	-	1	Enquire
6	LR006040	PLUG - DRAIN	LR006040 PLUG - DRAIN	-	1	Enquire
7	LR004348	DOWEL - BUSH	LR004348 DOWEL - BUSH	-	2	Enquire
8	4640315	SEAL - PLUG	4640315 SEAL - PLUG	-	1	Enquire
9	LR004632	FILTER	LR004632 FILTER	-	1	Enquire
10	LR005628	NUT - EXPANSION	LR005628 NUT - EXPANSION	-	1	Enquire
11	LR003600	RIVET - BLIND	LR003600 RIVET - BLIND 8MM	-	1	Enquire
12	LR004820	PLUG - BLANKING	LR004820 PLUG - BLANKING 16MM	-	1	Enquire
13	LR004414	BOLT - BEARING CAP - HEX. HEAD	LR004414 BOLT - BEARING CAP - HEX. HEAD	-	10	Enquire
14	LR032066	SCREW	LR032066 SCREW M6 x 14MM	-	8	Enquire
15	LR004346	SCREW	LR004346 SCREW M6 X 10MM	-	6	Enquire
16	LR004333	SCREW	LR004333 SCREW M8 X 16	-	2	Enquire
17	LR004349	BOLT	LR004349 BOLT M6 X 16MM	-	2	Enquire
18	TYT500020	DOWEL	TYT500020 DOWEL	-	2	Enquire
19	LR006737	RIVET - BLIND	LR006737 RIVET - BLIND	-	1	Enquire
20	LR004616	PLUG	LR004616 PLUG	-	1	Enquire
21	STC50552	ADHESIVE	STC50552 ADHESIVE	-	1	Enquire
22	LR032880	HEAT SHIELD - CRANKSHAFT POS. SENSOR	LR032880 HEAT SHIELD - CRANKSHAFT POS. SENSOR For Crankshaft Sensor	-	1	Enquire
23	RYG500980	SCREW AND WASHER	RYG500980 SCREW AND WASHER heatshield fixing, M8 x 24MM	-	1	Enquire
24	LR020610	SEAL - CRANKSHAFT OIL	LR020610 SEAL - CRANKSHAFT OIL Kit	-	1	Enquire
