Top Link, Fulcrum & Ball Joint ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Top Link, Fulcrum & Ball Joint ((V) FROM7A000001)

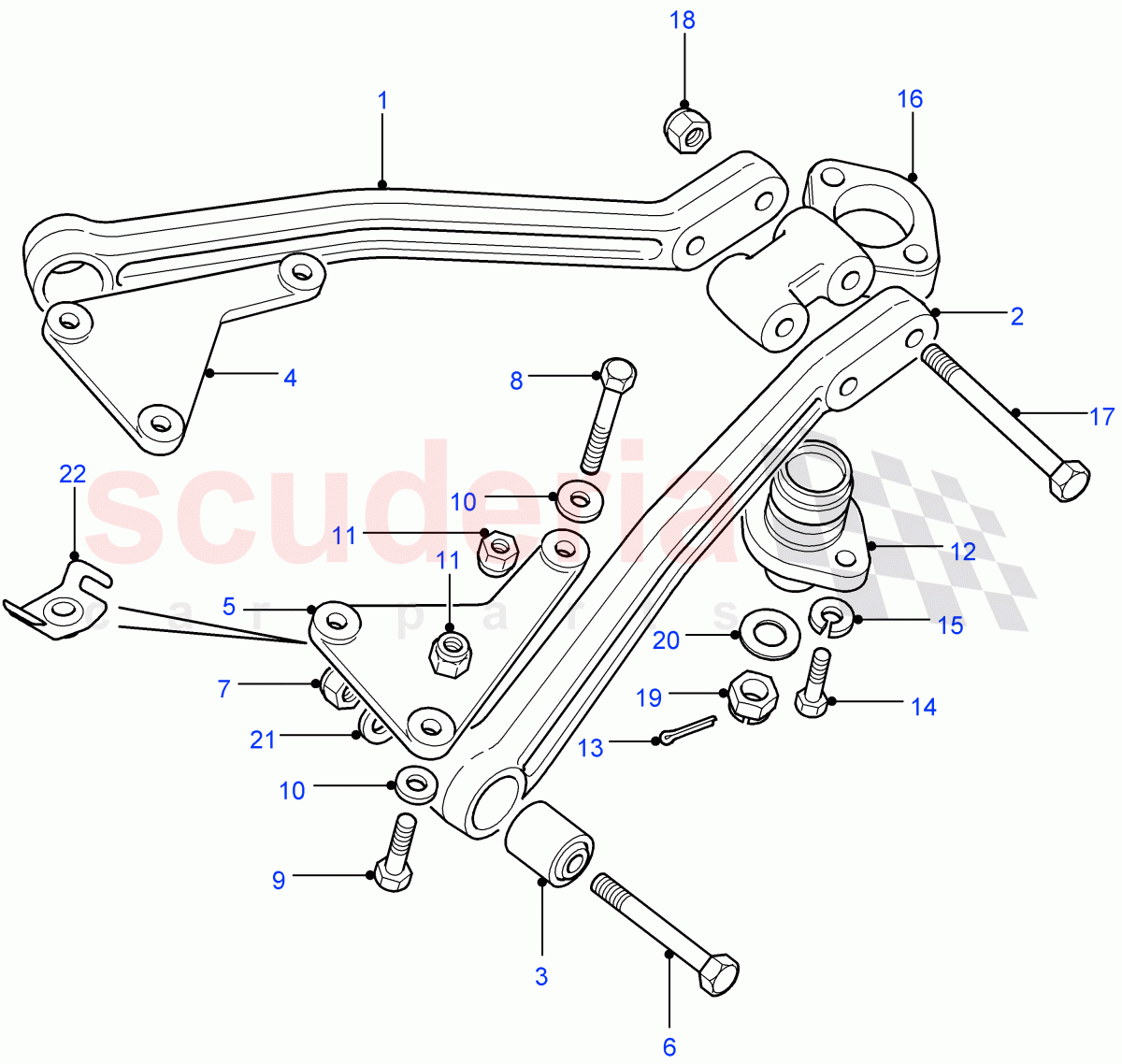

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	NTC2706	ARM - REAR SUSPENSION	Enquire	To Order
	LR015559	ARM - REAR SUSPENSION	Enquire	To Order
	LR041317	ARM - REAR SUSPENSION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	NTC2707	ARM - REAR SUSPENSION	Enquire	To Order
	LR015558	ARM - REAR SUSPENSION	Enquire	To Order
	LR041318	ARM - REAR SUSPENSION	Enquire	To Order

...and 1 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	NTC1773	BUSH - REAR SUSPENSION	Enquire	To Order
	ANR4164	BUSH	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	575615	BRACKET - REAR SUSPENSION LINK	Enquire	To Order
	LR045410	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	575616	BRACKET - REAR SUSPENSION LINK	Enquire	To Order
	LR045411	Bracket	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BH612321	BOLT	Enquire	To Order
	RYG501550	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NY612042	LOCKNUT	Enquire	To Order
	ANR3140	LOCKNUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FC110116	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	BX110091L	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WC110066	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY110056	NUT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RHF500110	JOINT - BALL	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	UYT500030	PIN	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS108207L	SCREW	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WM600051L	WASHER - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR3037	BRACKET-REAR AXLE	Enquire	To Order
	LR045401	BRACKET - REAR AXLE	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FC112326	BOLT	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FY112056	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH501090	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WB120001	WASHER	Enquire	To Order
	WB120006	RESTRICTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA120006	RESTRICTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	KYH500270	LOCKNUT	Enquire	To Order
	LR015593	NUT	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	NTC2706	ARM - REAR SUSPENSION	NTC2706 ARM - REAR SUSPENSION RH / To: 9A766382	-	1	Enquire
1	LR015559	ARM - REAR SUSPENSION	LR015559 ARM - REAR SUSPENSION RH / From: 9A766383 / To: CA422221	-	1	Enquire
1	LR041317	ARM - REAR SUSPENSION	LR041317 ARM - REAR SUSPENSION RH / From: CA422222 / To: CA999999	-	1	Enquire
1	LR045323	ARM - REAR SUSPENSION	LR045323 ARM - REAR SUSPENSION RH / From: DA000001	-	1	Enquire
2	NTC2707	ARM - REAR SUSPENSION	NTC2707 ARM - REAR SUSPENSION LH / To: 9A766382	-	1	Enquire
2	LR015558	ARM - REAR SUSPENSION	LR015558 ARM - REAR SUSPENSION LH / From: 9A766383 / To: CA422221	-	1	Enquire
2	LR041318	ARM - REAR SUSPENSION	LR041318 ARM - REAR SUSPENSION LH / From: CA422222 / To: CA999999	-	1	Enquire
2	LR045324	ARM - REAR SUSPENSION	LR045324 ARM - REAR SUSPENSION LH / From: DA000001	-	1	Enquire
3	NTC1773	BUSH - REAR SUSPENSION	NTC1773 BUSH - REAR SUSPENSION To: 9A768936	-	2	Enquire
3	ANR4164	BUSH	ANR4164 BUSH M16 / From: 9A768937	-	2	Enquire
4	575615	BRACKET - REAR SUSPENSION LINK	575615 BRACKET - REAR SUSPENSION LINK RH / To: DA427764	-	1	Enquire
4	LR045410	Bracket	LR045410 Bracket RH / From: DA427765	-	1	Enquire
5	575616	BRACKET - REAR SUSPENSION LINK	575616 BRACKET - REAR SUSPENSION LINK LH / To: DA427764	-	1	Enquire
5	LR045411	Bracket	LR045411 Bracket LH / From: DA427765	-	1	Enquire
6	BH612321	BOLT	BH612321 BOLT To: 9A766382	-	2	Enquire
6	RYG501550	BOLT	RYG501550 BOLT M16 x 100MM / From: 9A766383	-	2	Enquire
7	NY612042	LOCKNUT	NY612042 LOCKNUT To: 9A766382	-	2	Enquire
7	ANR3140	LOCKNUT	ANR3140 LOCKNUT From: 9A766383	-	2	Enquire
8	FC110116	BOLT	FC110116 BOLT M10 x 55	-	2	Enquire
9	BX110091L	BOLT	BX110091L BOLT M10 X 45	-	4	Enquire
10	WC110066	WASHER	WC110066 WASHER M10, oversize, Plain	-	6	Enquire
11	FY110056	NUT	FY110056 NUT M10, nyloc	-	6	Enquire
12	RHF500110	JOINT - BALL	RHF500110 JOINT - BALL	-	1	Enquire
13	UYT500030	PIN	UYT500030 PIN 3.2 x 32	-	1	Enquire
14	FS108207L	SCREW	FS108207L SCREW Flanged Head, M8 X 20MM	-	2	Enquire
15	WM600051L	WASHER - SPRING	WM600051L WASHER - SPRING 5/16"	-	2	Enquire
16	ANR3037	BRACKET-REAR AXLE	ANR3037 BRACKET-REAR AXLE To: CA421830	-	1	Enquire
16	LR045401	BRACKET - REAR AXLE	LR045401 BRACKET - REAR AXLE From: CA421831	-	1	Enquire
17	FC112326	BOLT	FC112326 BOLT M12 x 160MM	-	2	Enquire
18	FY112056	NUT - HEX.	FY112056 NUT - HEX. M12	-	2	Enquire
19	RYH501090	NUT - HEX.	RYH501090 NUT - HEX. 20MM	-	1	Enquire
20	WB120001	WASHER	WB120001 WASHER 20MM / To: 7A999999	-	1	Enquire
20	WB120006	RESTRICTOR	WB120006 RESTRICTOR 20MM / From: 8A000001	-	1	Enquire
21	WA120006	RESTRICTOR	WA120006 RESTRICTOR M20 / From: 9A766383	-	2	Enquire
22	KYH500270	LOCKNUT	KYH500270 LOCKNUT To: 9A766382	-	2	Enquire
22	LR015593	NUT	LR015593 NUT M16 / From: 9A766383	-	2	Enquire
