Shock Absorbers & Springs (90" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

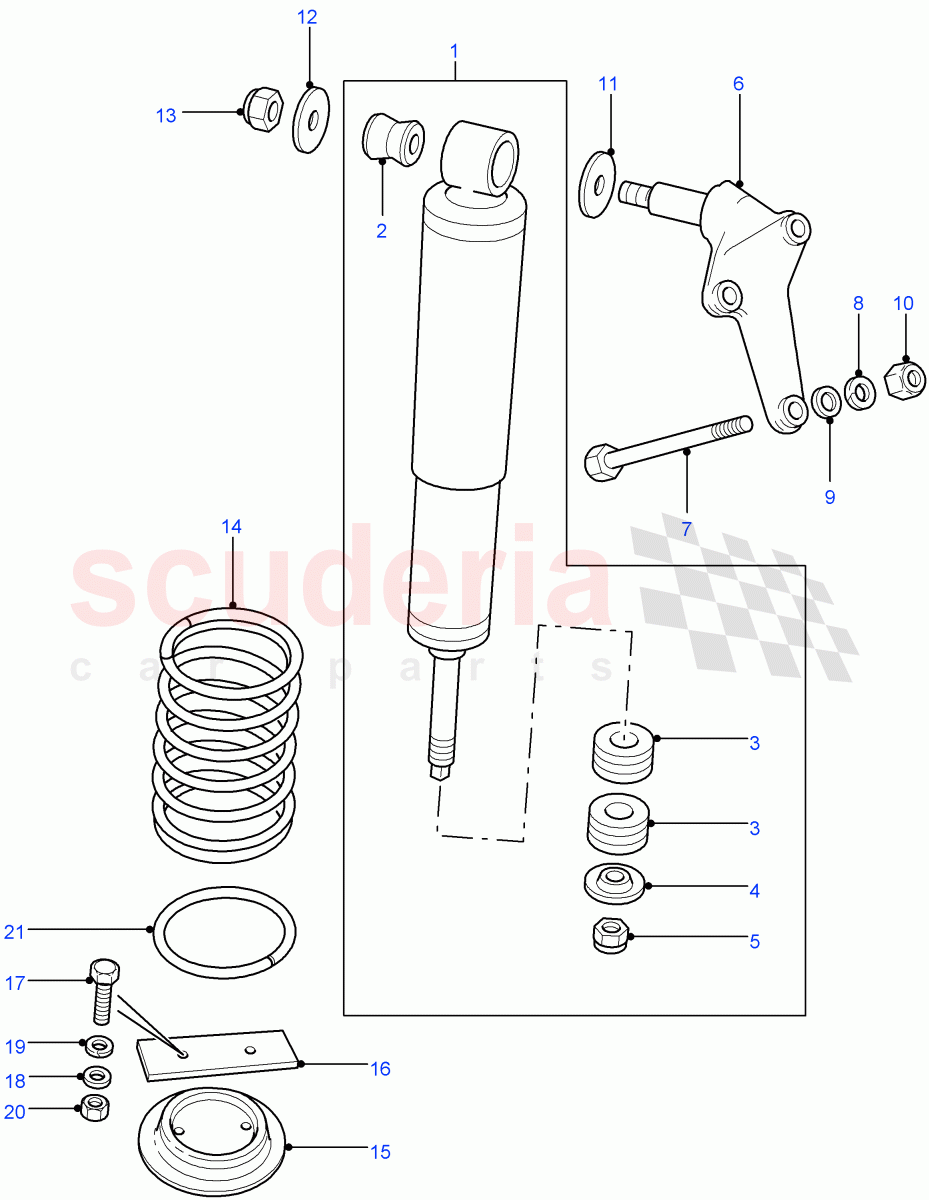

Land Rover Defender (2007-2016) - Shock Absorbers & Springs (90" Wheelbase) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	RPM500310	DAMPER	Enquire	To Order
	RPM100070	DAMPER	Enquire	To Order
	LR044347	DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NRC5593	DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RNF100090L	INSULATOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYF500230	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYH501080	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NRC7981	BRACKET	Enquire	To Order
	LR041260	BRACKET - DAMPER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYP501140	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WM110001L	WASHER - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WC110067L	WASHER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FN110046	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYF500210	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RYF500220	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NY112041L	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	RKB500290	SPRING - REAR	Enquire	To Order
	RKB500280	SPRING - REAR	Enquire	To Order
	RKB500270	SPRING - REAR	Enquire	To Order

...and 15 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	ANR3578	SEAT - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NTC6106	RETAINER	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	FS110256	BOLT - FLANGED HEX.	Enquire	To Order
	FS110306	BOLT - HEX.HEAD	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WA110066	RESTRICTOR	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	WM110001L	WASHER - SPRING	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	NY110041L	NUT - HEX.	Enquire	To Order

Photo	Part No	Description	Price (each)	Stock
	ANR3060	ISOLATOR	Enquire	To Order

View All

Diagram Tap to enlarge

0 Parts (0.00)

Warning: Multiple variants of the same part may be selected for item(s):

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram	Add to Cart
1	RPM500310	DAMPER	RPM500310 DAMPER From: 7A738816 / To: CA444443	-	2	Enquire
1	RPM100070	DAMPER	RPM100070 DAMPER To: 7A738815	-	2	Enquire
1	LR044347	DAMPER	LR044347 DAMPER From: CA444444	-	2	Enquire
2	NRC5593	DAMPER	NRC5593 DAMPER Upper	-	2	Enquire
3	RNF100090L	INSULATOR	RNF100090L INSULATOR Lower	-	2	Enquire
4	RYF500230	WASHER	RYF500230 WASHER damper lower fixing	-	2	Enquire
5	RYH501080	NUT - HEX.	RYH501080 NUT - HEX. Hexagonal, M12	-	2	Enquire
6	NRC7981	BRACKET	NRC7981 BRACKET Upper / To: CA422000	-	2	Enquire
6	LR041260	BRACKET - DAMPER	LR041260 BRACKET - DAMPER Upper / From: CA422001	-	2	Enquire
7	RYP501140	BOLT - HEX.HEAD	RYP501140 BOLT - HEX.HEAD Hexagonal Head, M10 x 110	-	6	Enquire
8	WM110001L	WASHER - SPRING	WM110001L WASHER - SPRING 5/16"	-	6	Enquire
9	WC110067L	WASHER	WC110067L WASHER M10, oversize, Plain	-	6	Enquire
10	FN110046	NUT - HEX.	FN110046 NUT - HEX. Coarse Thread, Hexagonal Head, M10	-	6	Enquire
11	RYF500210	RETAINER	RYF500210 RETAINER Inner	-	2	Enquire
12	RYF500220	RETAINER	RYF500220 RETAINER Outer	-	2	Enquire
13	NY112041L	NUT - HEX.	NY112041L NUT - HEX. Hexagonal Head, M12, nyloc	-	2	Enquire
14	RKB500290	SPRING - REAR	RKB500290 SPRING - REAR Station Wagon - 3 Door, With Standard Duty Rear Springs / Passenger, Red / Green / Green / To: AA999999	-	1	Enquire
14	RKB500280	SPRING - REAR	RKB500280 SPRING - REAR Station Wagon - 3 Door, With Standard Duty Rear Springs / Driver, Red / Green / Red / To: AA999999	-	1	Enquire
14	RKB500270	SPRING - REAR	RKB500270 SPRING - REAR With Heavy Duty Rear Springs / Driver, White / Green / Pink / To: AA999999	-	1	Enquire
14	RKB500260	SPRING - REAR	RKB500260 SPRING - REAR With Heavy Duty Rear Springs / Passenger, White / Green / Yellow / To: 8A762795	-	1	Enquire
14	RKB500310	SPRING - REAR	RKB500310 SPRING - REAR With Heavy Duty Rear Springs / Passenger, White / Green / Purple / From: 8A762796 / To: AA999999	-	1	Enquire
14	NRC9449	SPRING - COIL	NRC9449 SPRING - COIL Soft Top, With Standard Duty Rear Springs / Passenger, White., Yellow	-	1	Enquire
14	NRC9448	COIL SPRING	NRC9448 COIL SPRING Soft Top, With Standard Duty Rear Springs / Blue., Driver, Red	-	1	Enquire
14	RKB101230	SPRING - COIL	RKB101230 SPRING - COIL With Heavy Duty Rear Springs / Driver, Green / Red / Yellow / To: AA999999	-	1	Enquire
14	RKB101240	SPRING - COIL	RKB101240 SPRING - COIL With Heavy Duty Rear Springs / Green / Yellow / White, Passenger / To: AA999999	-	1	Enquire
14	RKB500290	SPRING - REAR	RKB500290 SPRING - REAR LHD, With 4 Seats - 2+2 Configuration / Passenger, Red / Green / Green / From: BA000001	-	1	Enquire
14	RKB500280	SPRING - REAR	RKB500280 SPRING - REAR LHD, With 4 Seats - 2+2 Configuration / Driver, Red / Green / Red	-	1	Enquire
14	RKB500270	SPRING - REAR	RKB500270 SPRING - REAR LHD, With 4 Seats - 2+2 Configuration / Driver, White / Green / Pink / From: BA000001	-	1	Enquire
14	RKB101230	SPRING - COIL	RKB101230 SPRING - COIL LHD, With 2 Seat Configuration / Driver, Green / Red / Yellow / From: BA000001	-	1	Enquire
14	RKB101240	SPRING - COIL	RKB101240 SPRING - COIL LHD, With 2 Seat Configuration / Green / Yellow / White, Passenger / From: BA000001	-	1	Enquire
14	RKB500290	SPRING - REAR	RKB500290 SPRING - REAR RHD, With 4 Seats - 2+2 Configuration / Red / Green / Green / From: BA000001	-	2	Enquire
14	RKB500270	SPRING - REAR	RKB500270 SPRING - REAR RHD, With 4 Seats - 2+2 Configuration / White / Green / Pink / From: BA000001	-	2	Enquire
14	RKB500310	SPRING - REAR	RKB500310 SPRING - REAR LHD, With 4 Seats - 2+2 Configuration / Passenger, White / Green / Purple / From: BA000001	-	1	Enquire
14	RKB101230	SPRING - COIL	RKB101230 SPRING - COIL RHD, With 2 Seat Configuration / Green / Red / Yellow / From: BA000001	-	2	Enquire
15	ANR3578	SEAT - SPRING	ANR3578 SEAT - SPRING	-	2	Enquire
16	NTC6106	RETAINER	NTC6106 RETAINER	-	2	Enquire
17	FS110256	BOLT - FLANGED HEX.	FS110256 BOLT - FLANGED HEX. Hexagonal Head, M10 x 25	-	4	Enquire
17	FS110306	BOLT - HEX.HEAD	FS110306 BOLT - HEX.HEAD Flanged Head, Hexagonal Head, M10 x 30	-	4	Enquire
18	WA110066	RESTRICTOR	WA110066 RESTRICTOR M10	-	8	Enquire
19	WM110001L	WASHER - SPRING	WM110001L WASHER - SPRING 5/16"	-	4	Enquire
20	NY110041L	NUT - HEX.	NY110041L NUT - HEX. M10	-	4	Enquire
21	ANR3060	ISOLATOR	ANR3060 ISOLATOR	-	1	Enquire
