Crownwheel And Pinion - 2 Pinion (90" Wheelbase) ((V) From7A000001)

Land Rover Defender (2007-2016)

Find Your Part

Land Rover Defender (2007-2016) - Crownwheel And Pinion - 2 Pinion (90" Wheelbase) ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
FTC5399 CASE - DIFFERENTIAL $423.07 To Order
Photo Part No Description Price (each) Stock
TCI100060 KIT - AXLE DIFFERENTIAL GEAR $444.22 To Order
Photo Part No Description Price (each) Stock
FTC5401 SHAFT $58.38 To Order
Photo Part No Description Price (each) Stock
TBH100040 GEAR AND PINION - DRIVING $617.89 To Order
LR027527 GEAR AND PINION - DRIVING $367.90 To Order
Photo Part No Description Price (each) Stock
FTC5150 BOLT $1.54 To Order
Photo Part No Description Price (each) Stock
RTC3095 BEARING - DIFFERENTIAL $116.66 To Order
Photo Part No Description Price (each) Stock
539706 BEARING - ROLLER $105.07 To Order
Photo Part No Description Price (each) Stock
TYS100870 SHIM $28.43 To Order
TYS100900 SHIM $28.43 To Order
TYS100940 SHIM $28.43 To Order
...and 16 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FTC5402 PIN - ROLL $1.67 To Order
Photo Part No Description Price (each) Stock
RTC3254 SEALER $42.05 To Order
Photo Part No Description Price (each) Stock
CCN110L CIRCLIP $2.74 To Order
Photo Part No Description Price (each) Stock
LR027940 GEARS $964.93 To Order
Photo Part No Description Price (each) Stock
LR027941 CASE - DIFFERENTIAL $577.41 To Order
Photo Part No Description Price (each) Stock
CCN110L CIRCLIP $2.74 To Order
Photo Part No Description Price (each) Stock
LR027942 SHAFT $82.78 To Order
Photo Part No Description Price (each) Stock
LR027944 PIN - ROLL $1.82 To Order
View All

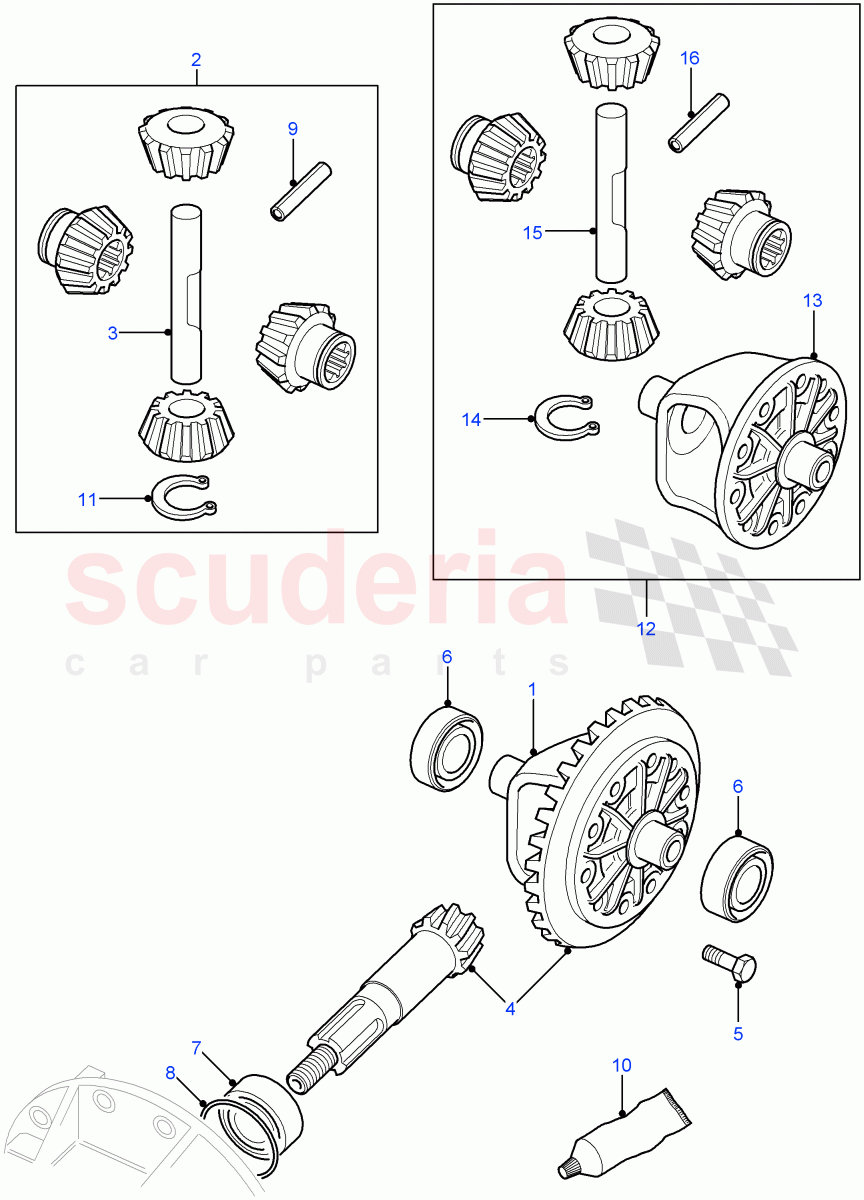

Crownwheel And Pinion - 2 Pinion (90" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 FTC5399
CASE - DIFFERENTIAL
To: BA822269 		$423.07 1
2 TCI100060
KIT - AXLE DIFFERENTIAL GEAR
To: BA822269 		$444.22 1
3 FTC5401
SHAFT
Front Axle / To: BA822269 		$58.38 1
4 TBH100040
GEAR AND PINION - DRIVING
To: BA823579 		$617.89 1
4 LR027527
GEAR AND PINION - DRIVING
From: BA823580 		$367.90 1
5 FTC5150
BOLT
3/8UNF, Front Axle 		$1.54 10
6 RTC3095
BEARING - DIFFERENTIAL 		$116.66 2
7 539706
BEARING - ROLLER 		$105.07 1
8 TYS100870
SHIM
2.255mm, Inner Diameter 64MM, Metric 		$28.43 -
8 TYS100900
SHIM
2.210mm, Inner Diameter 64MM, Metric 		$28.43 -
8 TYS100940
SHIM
2.150mm, Inner Diameter 64MM, Metric 		$28.43 -
8 TYS100970
SHIM
2.105mm, Inner Diameter 64MM, Metric 		$28.43 -
8 TYS101000
SHIM
2.060mm, Inner Diameter 64MM, Metric 		$28.43 -
8 TYS101040
SHIM - DIFFERENTIAL DRIVING GR BRG
2.155MM, Inner Diameter 32.5MM, Metric 		$37.17 -
8 TYS101060
SHIM - DIFFERENTIAL DRIVING GR BRG
2.105mm, Inner Diameter 32.5MM, Metric 		$18.65 -
8 TYS101080
SHIM - DIFFERENTIAL DRIVING GR BRG
2.055mm, Inner Diameter 32.5MM, Metric 		$32.55 -
8 TYS101100
SHIM - DIFFERENTIAL DRIVING GR BRG
2.005mm, Inner Diameter 32.5MM, Metric 		$18.65 -
8 TYS101120
SHIM - DIFFERENTIAL DRIVING GR BRG
1.955mm, Inner Diameter 32.5MM, Metric 		$18.65 -
8 TYS101140
SHIM - DIFFERENTIAL DRIVING GR BRG
1.905mm, Inner Diameter 32.5MM, Metric 		$27.70 -
8 TYS101160
SHIM - DIFFERENTIAL DRIVING GR BRG
1.855mm, Inner Diameter 32.5MM, Metric 		$21.85 -
8 TYS101180
SHIM - DIFFERENTIAL DRIVING GR BRG
1.805mm, Inner Diameter 32.5MM, Metric 		$21.85 -
8 TYS101200
SHIM - DIFFERENTIAL DRIVING GR BRG
1.755mm, Inner Diameter 32.5MM, Metric 		$36.39 -
8 TYS101220
SHIM - DIFFERENTIAL DRIVING GR BRG
1.705mm, Inner Diameter 32.5MM, Metric 		$36.39 -
8 TYS101240
SHIM - DIFFERENTIAL DRIVING GR BRG
1.655mm, Inner Diameter 32.5MM, Metric 		$21.85 -
8 TYS101260
SHIM - DIFFERENTIAL DRIVING GR BRG
1.605mm, Inner Diameter 32.5MM, Metric 		$21.85 -
8 TYS101280
SHIM - DIFFERENTIAL DRIVING GR BRG
1.555mm, Inner Diameter 32.5MM, Metric 		$21.85 -
8 TYS101300
SHIM - DIFFERENTIAL DRIVING GR BRG
1.505mm, Inner Diameter 32.5MM, Metric 		$28.47 -
9 FTC5402
PIN - ROLL
To: BA822269 		$1.67 1
10 RTC3254
SEALER 		$42.05 1
11 CCN110L
CIRCLIP
To: BA822269 		$2.74 2
12 LR027940
GEARS
From: BA822270 		$964.93 1
13 LR027941
CASE - DIFFERENTIAL
From: BA822270 		$577.41 1
14 CCN110L
CIRCLIP
From: BA822270 		$2.74 2
15 LR027942
SHAFT
Front Axle / From: BA822270 		$82.78 1
16 LR027944
PIN - ROLL
From: BA822270 		$1.82 1
