Land Rover Defender (2007-2016) - Hubs And Driveshafts ((V) FROM7A000001)

View the exploded parts diagram to find the part you are looking for:
  • You can reposition the diagram by dragging it
  • You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons
  • You can click on a hotspot 1 in the parts diagram to locate the part in the table
Part Key
IN
IN STOCK
AS
ARRIVING SOON
TO
To Order
PE
PLEASE ENQUIRE

Photo Part No Description Price (each) Stock
TOB500020 SHAFT - REAR AXLE OUTER STUB $603.03 To Order
TOB500030 SHAFT - REAR AXLE OUTER STUB $603.03 To Order
LR072976 SHAFT - REAR AXLE OUTER STUB $698.72 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
571752 GASKET - REAR AXLE SHAFT $2.04 To Order
Photo Part No Description Price (each) Stock
BX110095M BOLT $2.46 To Order
Photo Part No Description Price (each) Stock
FTC3648 GASKET $4.89 To Order
FTC3650 GASKET $6.20 To Order
Photo Part No Description Price (each) Stock
FTC3188 AXLE - REAR $572.71 To Order
Photo Part No Description Price (each) Stock
FTC5268 SEAL $11.48 To Order
Photo Part No Description Price (each) Stock
SX110257M SCREW $2.32 To Order
Photo Part No Description Price (each) Stock
FRC2310 PLATE - LOCKING $21.29 To Order
FRC2310 PLATE - LOCKING $21.29 To Order
FTC1378 PLATE - LOCKING $82.32 To Order
...and 1 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
FTC4785 SEAL $10.60 To Order
Photo Part No Description Price (each) Stock
STC4382 BEARING - WHEEL HUB $103.47 To Order
Photo Part No Description Price (each) Stock
FTC0942 HUB $299.96 To Order
RUB500240 HUB $347.28 To Order
Photo Part No Description Price (each) Stock
RUF500010 BOLT - WHEEL $4.40 To Order
Photo Part No Description Price (each) Stock
FTC5241 WASHER $4.31 To Order
Photo Part No Description Price (each) Stock
RFD100000 LOCKNUT $10.10 IN STOCK
Photo Part No Description Price (each) Stock
TOF100000 SPACER $22.99 To Order
TOF100010 SPACER $24.45 To Order
TOF100020 SPACER $19.57 To Order
...and 4 more part variants. See table on right for more details.
Photo Part No Description Price (each) Stock
549473 CIRCLIP $3.13 To Order
Photo Part No Description Price (each) Stock
FTC5414 CAP $7.40 To Order
Photo Part No Description Price (each) Stock
RUC105200 FLANGE - DRIVE $268.35 To Order
Photo Part No Description Price (each) Stock
NY110047L NUT - HEX. $2.61 To Order
View All

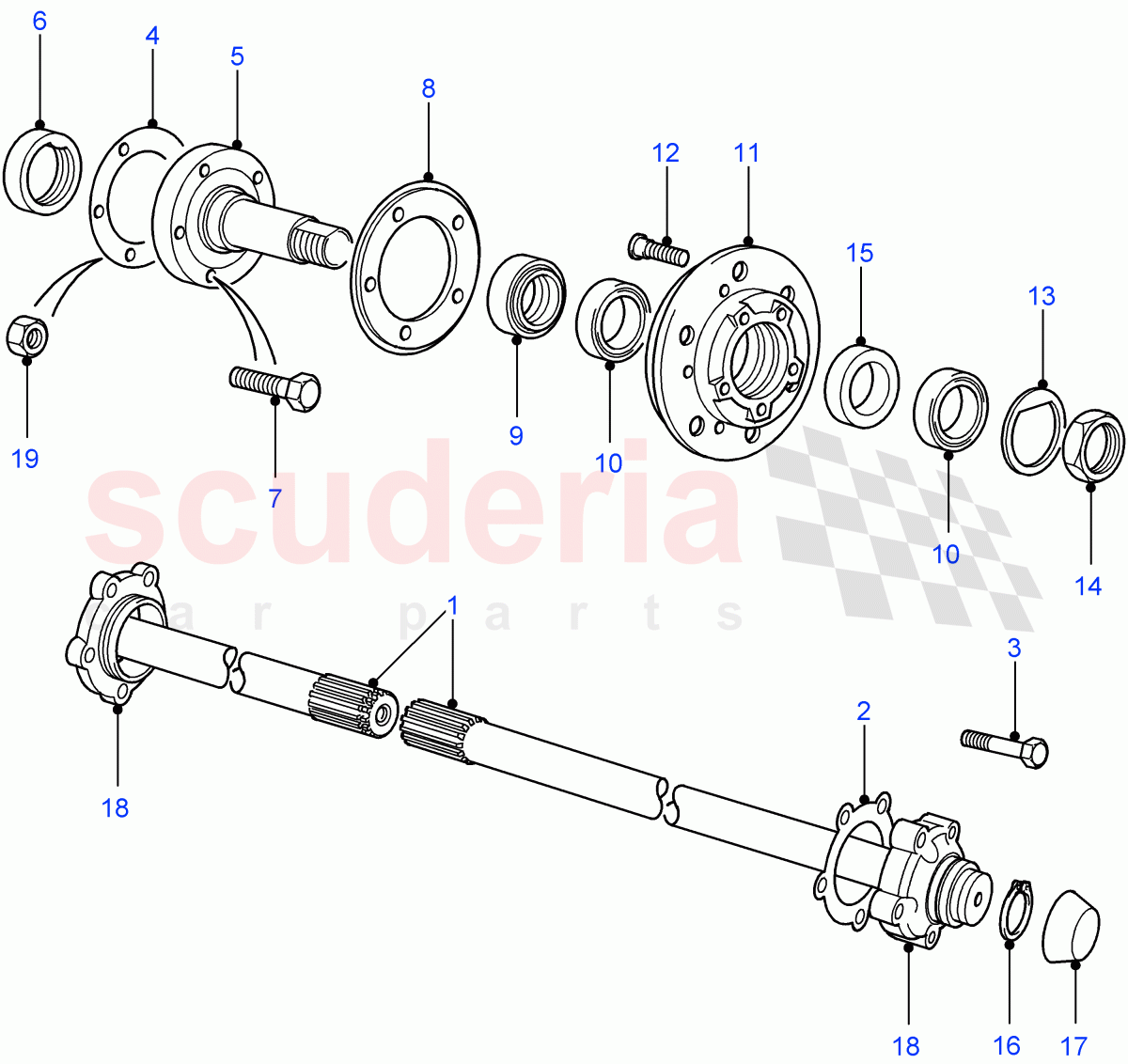

Hubs And Driveshafts ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016) Diagram Tap to enlarge
# Part Details Price
(each)		 Qty on
Diagram		 Add to
Cart
1 TOB500020
SHAFT - REAR AXLE OUTER STUB
RH / To: GA481822 		$603.03 1
1 TOB500030
SHAFT - REAR AXLE OUTER STUB
LH / To: GA481822 		$603.03 1
1 LR072976
SHAFT - REAR AXLE OUTER STUB
RH, Fixed Drive Flange / From: GA481823 		$698.72 1
1 LR072977
SHAFT - REAR AXLE OUTER STUB
LH, Fixed Drive Flange / From: GA481823 		$698.72 1
2 571752
GASKET - REAR AXLE SHAFT 		$2.04 2
3 BX110095M
BOLT
M10 X 45, Pre-Impregnated With Adhesive 		$2.46 10
4 FTC3648
GASKET
Less Anti-Lock Braking System / Asbestos Free 		$4.89 2
4 FTC3650
GASKET
4 Wheel Anti-Lock Braking System / Asbestos Free 		$6.20 2
5 FTC3188
AXLE - REAR 		$572.71 2
6 FTC5268
SEAL 		$11.48 1
7 SX110257M
SCREW
Hexagonal Head, M10 x 25 		$2.32 12
8 FRC2310
PLATE - LOCKING
Less Anti-Lock Braking System / To: 9A999999 		$21.29 2
8 FRC2310
PLATE - LOCKING
Less Anti-Lock Braking System / To: 9A999999 		$21.29 2
8 FTC1378
PLATE - LOCKING
4 Wheel Anti-Lock Braking System / To: 9A999999 		$82.32 2
8 FTC1378
PLATE - LOCKING
4 Wheel Anti-Lock Braking System / To: 9A999999 		$82.32 2
9 FTC4785
SEAL
Inner 		$10.60 2
10 STC4382
BEARING - WHEEL HUB
Hub 		$103.47 4
11 FTC0942
HUB
To: 7A777665 		$299.96 2
11 RUB500240
HUB
From: 7A777666 		$347.28 2
12 RUF500010
BOLT - WHEEL 		$4.40 10
13 FTC5241
WASHER 		$4.31 2
14 RFD100000
LOCKNUT
IN STOCK 		$10.10 2
15 TOF100000
SPACER
15.5mm, Purple 		$22.99 -
15 TOF100010
SPACER
15.4mm, Yellow 		$24.45 -
15 TOF100020
SPACER
15.3MM, Red 		$19.57 -
15 TOF100030
SPACER
15.2mm, Blue. 		$17.79 -
15 TOF100040
SPACER
15.1mm, Green 		$31.39 -
15 TOF100050
SPACER
15.0mm, Black 		$21.02 -
15 TOF100060
SPACER
14.9mm, White. 		$25.01 -
16 549473
CIRCLIP 		$3.13 2
17 FTC5414
CAP 		$7.40 2
18 RUC105200
FLANGE - DRIVE
To: GA481822 		$268.35 2
19 NY110047L
NUT - HEX.
M10, nyloc 		$2.61 4
