Name: Differential Assembly (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001)
Rating: 4.2 (1 reviews)

Differential Assembly (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001) of Land Rover Land Rover Defender (2007-2016)

View All

Land Rover Defender (2007-2016) - Differential Assembly (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001)

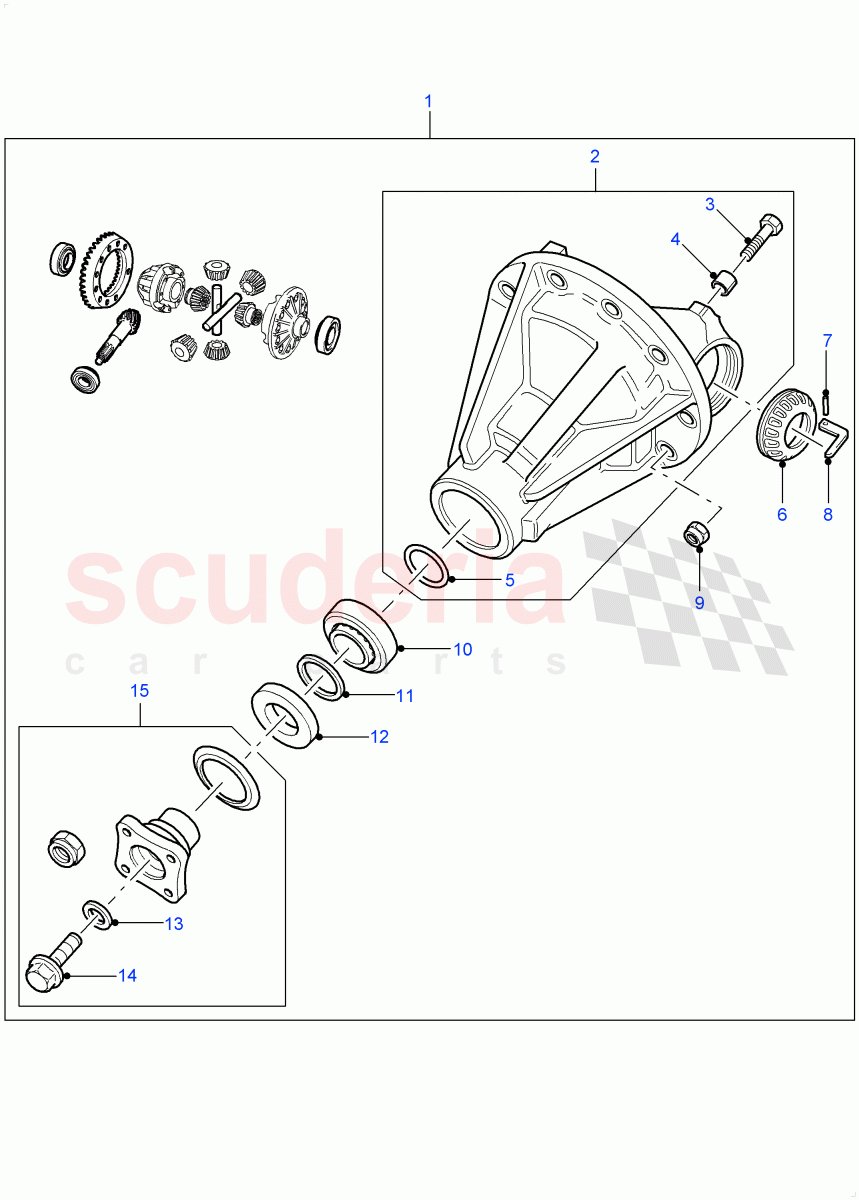

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

You can click on a hotspot in the parts diagram to locate the part in the table

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TBB000270	DIFFERENTIAL - REAR	$2,050.52	To Order
	LR006047	CARRIER - DIFFERENTIAL	$993.11	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC3511	HOUSING	$679.13	To Order

Photo	Part No	Description	Price (each)	Stock
	BH116136	BOLT - FLANGED HEX.	$2.35	To Order

Photo	Part No	Description	Price (each)	Stock
	TYU100120	DOWEL	$2.63	To Order

Photo	Part No	Description	Price (each)	Stock
	TYS100870	SHIM	$28.43	To Order
	TYS100900	SHIM	$28.43	To Order
	TYS100940	SHIM	$28.43	To Order

...and 16 more part variants. See table on right for more details.

Photo	Part No	Description	Price (each)	Stock
	FTC4210	RING	$32.81	To Order

Photo	Part No	Description	Price (each)	Stock
	576159	PIN - ROLL	$0.54	To Order

Photo	Part No	Description	Price (each)	Stock
	FRC5661	WASHER - TAB	$16.91	To Order

Photo	Part No	Description	Price (each)	Stock
	NY606042	LOCKNUT	$0.63	To Order

Photo	Part No	Description	Price (each)	Stock
	STC2808	BEARING - DIFFERENTIAL	$95.01	To Order

Photo	Part No	Description	Price (each)	Stock
	539745	SPACER - PINION BEARING	$19.90	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC4851	SEAL - DRIVING PINION OIL	$38.63	To Order

Photo	Part No	Description	Price (each)	Stock
	FTC5413	WASHER	$7.94	To Order

Photo	Part No	Description	Price (each)	Stock
	FS112306P	BOLT	$1.00	To Order

Photo	Part No	Description	Price (each)	Stock
	STC3124	KIT	$279.18	To Order

View All

Diagram Tap to enlarge

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	TBB000270	DIFFERENTIAL - REAR	TBB000270 DIFFERENTIAL - REAR 4 Pin Differential, New	$2,050.52	1
1	LR006047	CARRIER - DIFFERENTIAL	LR006047 CARRIER - DIFFERENTIAL 4 Pin Differential, For UK and ROW markets except Russia, China, Brazil, Remanufactured	$993.11	1
2	FTC3511	HOUSING	FTC3511 HOUSING	$679.13	1
3	BH116136	BOLT - FLANGED HEX.	BH116136 BOLT - FLANGED HEX. M16 X 65MM	$2.35	4
4	TYU100120	DOWEL	TYU100120 DOWEL	$2.63	4
5	TYS100870	SHIM	TYS100870 SHIM 2.255mm, Inner Diameter 64MM, Metric	$28.43	-
5	TYS100900	SHIM	TYS100900 SHIM 2.210mm, Inner Diameter 64MM, Metric	$28.43	-
5	TYS100940	SHIM	TYS100940 SHIM 2.150mm, Inner Diameter 64MM, Metric	$28.43	-
5	TYS100970	SHIM	TYS100970 SHIM 2.105mm, Inner Diameter 64MM, Metric	$28.43	-
5	TYS101000	SHIM	TYS101000 SHIM 2.060mm, Inner Diameter 64MM, Metric	$28.43	-
5	TYS101040	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101040 SHIM - DIFFERENTIAL DRIVING GR BRG 2.155MM, Inner Diameter 32.5MM, Metric	$37.17	-
5	TYS101060	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101060 SHIM - DIFFERENTIAL DRIVING GR BRG 2.105mm, Inner Diameter 32.5MM, Metric	$18.65	-
5	TYS101080	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101080 SHIM - DIFFERENTIAL DRIVING GR BRG 2.055mm, Inner Diameter 32.5MM, Metric	$32.55	-
5	TYS101100	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101100 SHIM - DIFFERENTIAL DRIVING GR BRG 2.005mm, Inner Diameter 32.5MM, Metric	$18.65	-
5	TYS101120	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101120 SHIM - DIFFERENTIAL DRIVING GR BRG 1.955mm, Inner Diameter 32.5MM, Metric	$18.65	-
5	TYS101140	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101140 SHIM - DIFFERENTIAL DRIVING GR BRG 1.905mm, Inner Diameter 32.5MM, Metric	$27.70	-
5	TYS101160	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101160 SHIM - DIFFERENTIAL DRIVING GR BRG 1.855mm, Inner Diameter 32.5MM, Metric	$21.85	-
5	TYS101180	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101180 SHIM - DIFFERENTIAL DRIVING GR BRG 1.805mm, Inner Diameter 32.5MM, Metric	$21.85	-
5	TYS101200	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101200 SHIM - DIFFERENTIAL DRIVING GR BRG 1.755mm, Inner Diameter 32.5MM, Metric	$36.39	-
5	TYS101220	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101220 SHIM - DIFFERENTIAL DRIVING GR BRG 1.705mm, Inner Diameter 32.5MM, Metric	$36.39	-
5	TYS101240	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101240 SHIM - DIFFERENTIAL DRIVING GR BRG 1.655mm, Inner Diameter 32.5MM, Metric	$21.85	-
5	TYS101260	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101260 SHIM - DIFFERENTIAL DRIVING GR BRG 1.605mm, Inner Diameter 32.5MM, Metric	$21.85	-
5	TYS101280	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101280 SHIM - DIFFERENTIAL DRIVING GR BRG 1.555mm, Inner Diameter 32.5MM, Metric	$21.85	-
5	TYS101300	SHIM - DIFFERENTIAL DRIVING GR BRG	TYS101300 SHIM - DIFFERENTIAL DRIVING GR BRG 1.505mm, Inner Diameter 32.5MM, Metric	$28.47	-
6	FTC4210	RING	FTC4210 RING	$32.81	2
7	576159	PIN - ROLL	576159 PIN - ROLL	$0.54	2
8	FRC5661	WASHER - TAB	FRC5661 WASHER - TAB	$16.91	2
9	NY606042	LOCKNUT	NY606042 LOCKNUT 3/8, Hexagonal Head, nyloc, UNF	$0.63	10
10	STC2808	BEARING - DIFFERENTIAL	STC2808 BEARING - DIFFERENTIAL	$95.01	1
11	539745	SPACER - PINION BEARING	539745 SPACER - PINION BEARING	$19.90	1
12	FTC4851	SEAL - DRIVING PINION OIL	FTC4851 SEAL - DRIVING PINION OIL	$38.63	1
13	FTC5413	WASHER	FTC5413 WASHER	$7.94	1
14	FS112306P	BOLT	FS112306P BOLT M12 x 30	$1.00	1
15	STC3124	KIT	STC3124 KIT	$279.18	1

Differential Assembly (130" Wheelbase, 110" Wheelbase) ((V) From7A000001)

Land Rover Defender (2007-2016)

Land Rover Defender (2007-2016) - Differential Assembly (130" Wheelbase, 110" Wheelbase) ((V) FROM7A000001)
