Name: Propshaft Front ((V) FROM7A000001)
Rating: 4.4 (1 reviews)

View All

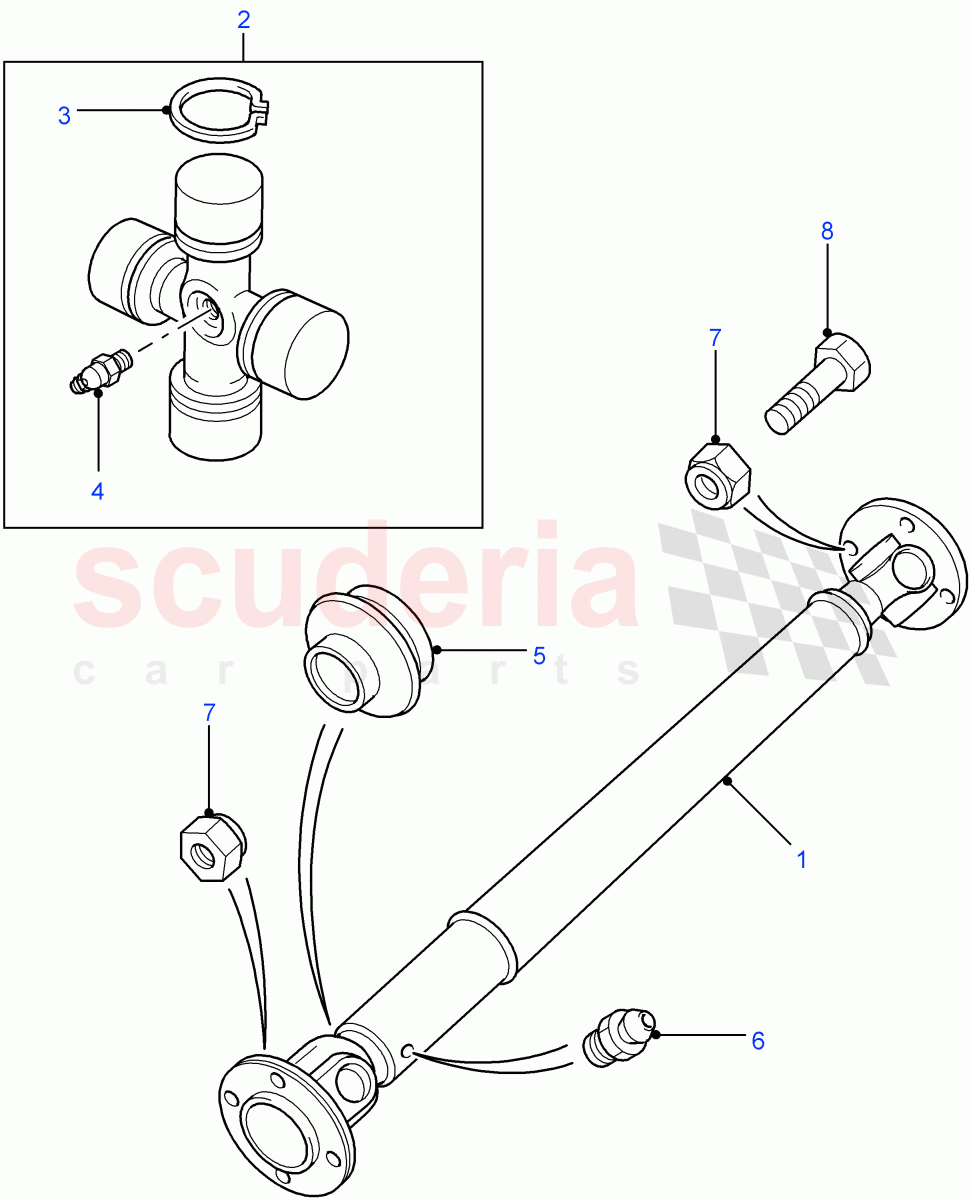

View the exploded parts diagram to find the part you are looking for:

You can reposition the diagram by dragging it
You can zoom in and out of the diagram by scrolling, pinching, or using the and buttons

Part Key

IN STOCK

ARRIVING SOON

To Order

PLEASE ENQUIRE

Photo	Part No	Description	Price (each)	Stock
	TVC500010	JOINT - UNIVERSAL	$123.60	To Order

Photo	Part No	Description	Price (each)	Stock
	242522	CIRCLIP	$1.43	To Order

Photo	Part No	Description	Price (each)	Stock
	TVK500490	GREASE NIPPLE	$3.85	To Order

Photo	Part No	Description	Price (each)	Stock
	TVE500020	BOOT	$25.69	To Order

Photo	Part No	Description	Price (each)	Stock
	TVK500490	GREASE NIPPLE	$3.85	To Order

View All

#	Part Number	Part Description	Part Details	Price (each)	Qty on Diagram
1	LR010465	SHAFT - MAIN	LR010465 SHAFT - MAIN To: CA555554	$773.84	1
1	LR044361	SHAFT - MAIN	LR044361 SHAFT - MAIN From: CA555555	$798.45	1
2	TVC500010	JOINT - UNIVERSAL	TVC500010 JOINT - UNIVERSAL	$123.60	2
3	242522	CIRCLIP	242522 CIRCLIP	$1.43	-
4	TVK500490	GREASE NIPPLE	TVK500490 GREASE NIPPLE	$3.85	2
5	TVE500020	BOOT	TVE500020 BOOT	$25.69	1
6	TVK500490	GREASE NIPPLE	TVK500490 GREASE NIPPLE To: 7A732615	$3.85	1
7	NZ606042	NUT - FLANGED	NZ606042 NUT - FLANGED 3/8" UNF / To: CA555554	$0.42	8
7	NY606042	LOCKNUT	NY606042 LOCKNUT 3/8" UNF / From: CA555555	$0.63	8
8	509045P	BOLT	509045P BOLT 3/8" UNF / To: DA427764	$1.99	4
8	LR045409	BOLT	LR045409 BOLT 3/8" UNF / From: DA427765	$2.70	4

Propshaft Front ((V) From7A000001)

Land Rover Defender (2007-2016)
